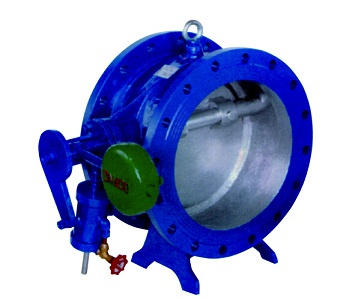

Structural characteristics and usage
Usage: Used in outlet of water pump of industrial water supply, sewage treatment plant, etc.
Function: To prevent medium's reverse flow in the pipe network, and automatically eliminate the destructive water hammer, so as to ensure the pump and pipeline from being damaged.
Parts: Mainly consist of body, disc, buffer device and mini-adjustable valve,etc.
Features: Innovative structure, small volume, small fluid resistance, smooth and reliable operation, reliable sealing, abrasion resistance, good buffer performance,etc.
Materials of main parts
| Part name | Materials |
| Body | Cast iron, carbon steel |
| Butterfly plate | Carbon steel, nodular cast iron |
| Seal ring | Oil resistance NBR, neoprene |
| Stem | Stainless steel |
| Packing | Teflon |
Main technical parameters
| PN(MPa) | 1.0 | 1.6 | 2.5 |
| Pressure test(MPa) | Shell strength | 1.5 | 2.4 | 3.75 |
| Sealing performance | 1.1 | 1.76 | 2.75 |
| Working temp(ºC) | 0~80ºC |
| Applicable medium | Water, oil, seawater, sewage |
