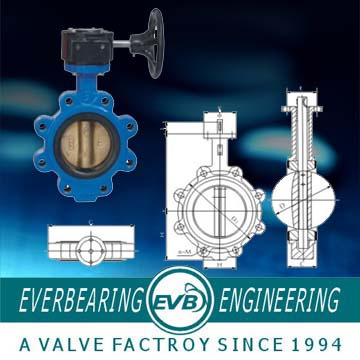

Gear butterfly valve
Material: GG225
Trade Term: FOB
Certification: ISO, CE, DQS
Pressure: PN16
Factory price!
|
Specification(ductile iron lug butterfly valve) |
Application(gear butterfly valve) |
Design standard: API609; EN593, ect
Face to Face: DIN3202-K1, EN558-1 20 Series; BS5155, MSS SP-67
Flange Drilling: DIN2501PN10/PN16; BS10-D; JIS10K; BS4504; ANSI125/150; AS2129 Table D/E; ASA125/150 ect.
Pressure test: API 598
|
This kind of lug butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry etc. and industrial environmental protection, water treatment, high building, water supply and draian tubing line open or close or adjusting medium. |
|
Materials(cast iron butterfly valve) |
|
No. |
Part Name |
Material(1) |
Material(2) |
|
1 |
Body |
A126B |
GG25 |
|
2 |
Bushing |
B62 |
B62 |
|
3 |
" O" ring |
EPDM |
NBR |
|
4 |
Stem |
SS410 |
1.4201 |
|
5 |
Disc |
SS316 |
1.4408 |
|
6 |
Seat |
EPDM |
NBR |
|
7 |
|
|
|
|
|
Dimensions(butterfly valve) |
|
|
|
Size |
C |
L |
A |
B |
Φ c |
Φ D1 |
Φ D |
n-M |
Φ K |
Φ E |
n-Φ d1 |
|
DN40 |
32 |
32 |
139 |
68 |
12.6 |
110 |
|
4-16 |
65 |
50 |
4-8 |
|
DN50 |
42.04 |
32 |
161 |
80 |
12.6 |
125 |
52.5 |
4-16 |
65 |
50 |
4-8 |
|
DN65 |
44.68 |
32 |
175 |
89 |
12.6 |
145 |
63.8 |
4-16 |
65 |
50 |
4-8 |
|
DN80 |
45.21 |
32 |
181 |
95 |
12.6 |
160 |
78.1 |
8-16 |
65 |
50 |
4-8 |
|
DN100 |
52 |
32 |
200 |
114 |
15.77 |
180 |
103.8 |
8-16 |
90 |
70 |
4-10 |
|
DN125 |
54.36 |
32 |
213 |
127 |
18...92 |
210 |
123.1 |
8-16 |
90 |
70 |
4-10 |
|
DN150 |
55.7 |
32 |
226 |
139 |
18.92 |
240 |
155 |
8-20 |
90 |
70 |
4-10 |
|
DN200 |
60.1 |
40 |
260 |
175 |
22.1 |
295 |
202.1 |
8-20 |
125 |
102 |
4-12 |
|
DN250 |
65.63 |
40 |
292 |
203 |
28.45 |
350 |
250.1 |
12-20 |
125 |
102 |
4-12 |
|
DN300 |
76.5 |
40 |
337 |
242 |
31.6 |
400 |
301.1 |
12-20 |
125 |
102 |
4-12 |
|
DN350 |
76 |
45 |
368 |
267 |
31.6 |
460 |
333.3 |
16-20 |
125 |
102 |
4-12 |
|
DN400 |
86 |
51.2/72 |
400 |
297 |
33.15 |
515 |
389.6 |
16-24 |
175 |
140 |
4-18 |
|
DN450 |
105 |
51.2/72 |
422 |
318 |
38 |
565 |
440.5 |
20-24 |
175 |
140 |
4-18 |
|
DN500 |
127 |
64.2/82 |
480 |
348 |
41.15 |
620 |
491.6 |
20-24 |
175 |
140 |
4-18 |
|
DN600 |
151 |
64.2/82 |
562 |
444 |
50.65 |
725 |
592.5 |
20-27 |
210 |
165 |
4-22 |
|
DN700 |
162 |
66/82 |
623.9 |
505 |
63.35/55 |
840 |
695 |
24-27 |
300 |
254 |
8-18 |
|
DN750 |
166 |
66/82 |
646 |
520 |
63.35/55 |
900 |
744.6 |
24-30 |
300 |
254 |
8-18 |
|
DN800 |
187 |
66/82 |
672 |
565 |
63.35/55 |
950 |
794.7 |
24-30 |
300 |
254 |
8-18 |
|
