Basic Info.
Work Pressure: Low Pressure (Pn<1.6mpa)
Material of Seal Surface: Soft Sealed
Connection Form: Wafer
Structure: Centre Sealing
Seal Form: Auto Sealed
Working Temperature: Normal Temperature (-40° C
Application: Water Industrial Usage
Size: Dn40-1000
Working Pressure: Pn6/10/16
Disc: Di, Ss304, Ss316, Nylon Coated, Bronze
Seat: EPDM, NBR, PTFE
Top Flange: ISO5211
Guarantee Period: 24 Months
Packaging: Bubble Bag, Sponge, Plywood Case
Place of Origin: Wenzhou, China
Export Markets: Global
Additional Info.
Trademark: We can make logo according to customers request
Packing: Sea Worth Packing: Bubble Bag, Sponge, Plywood Case
Standard: CE, UL, SGS
Origin: Wenzhou, China
HS Code: 8481804090
Production Capacity: 20000sets/Month
Product Description

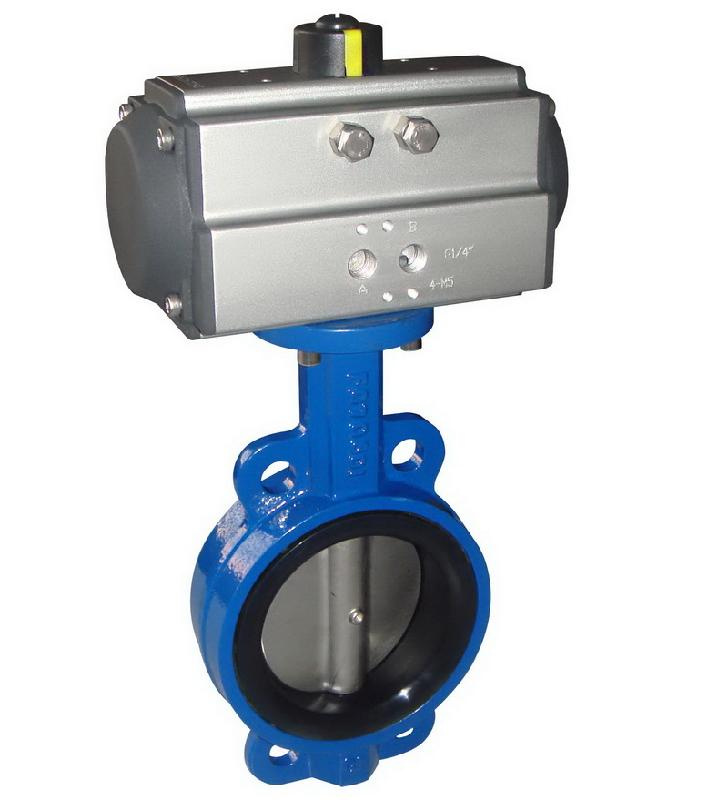

China GT Pneumatic Operated Lug Butterfly Valve
Pneumatic Butterfly Valve
Model: D671X-10/16
Size: DN40-1000
Working Pressure: PN6/10/16
Body: CI, DI, carbon steel, SS304
Disc: Ni coated ductile iron, Nylon coated ductile iron, SS304, SS316, aluminum bronze
Shaft: 20#steel, SS420, SS304&316
Seat: EPDM, NBR, PTFE, Viton
Body Flange Drilling Body: DIN2505; ANSI125/150; BS4504; JIS B2210;
Top Flange: ISO5211
Face to Face: ISO5752; API609;
Test Inspection: API598;
Drive: Pneumatic actuator
Double acting and single acting
Normally open and normally closed type
Pressure range: 2bar-8bar
Applicable medium: Water, sea water, sewage, oil, weak acid and soda etc.
Applicable temperature: -45-130° C
19 years experience, 24 months guarantee
OEM orders are welcomed
