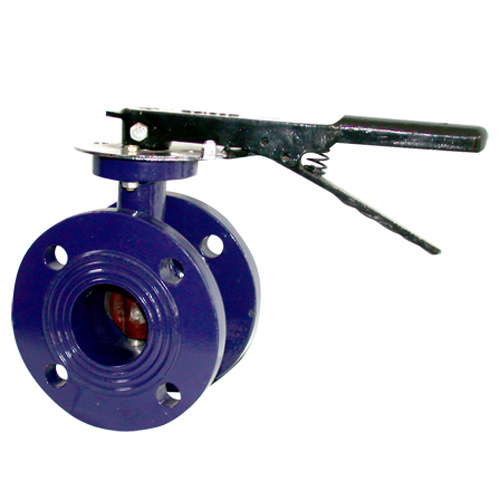

Product Name: Flanged butterfly valve
Product No: 143057-666123123
Model: 123123123
Was Price: 1.231231E+08Dollar/ Now Price: 1.231231E+08Dollar/
Manufacturer: Dongying Hanlin Metal Products Ltd.
Product introduction
Applicable standards:
Design acc. To: API609; EN593, ect
Face to face: DIN3202-K1, EN558-1 20 Series; BS5155, MSS SP-67
Flange drilling: DIN2501PN10 / PN16; BS10-D; JIS10K; BS4504; ANSI125/150; AS2129 Table
D / E; ASA125/150ect.
Test acc,: API598.
| DN | b | ΦD | ΦD2 | H2 | H1 | n-Φd2 | Φ d | n-ΦD1 | b1 |
| 40 | 32 | 150 | 110 | 139 | 68 | 4-18 | 57.15 | 4-7 | 10 |
| 50 | 42.04 | 165 | 125 | 161 | 80 | 4-18 | 57.15 | 4-7 | 10 |
| 65 | 44.68 | 185 | 145 | 175 | 89 | 4-18 | 57.15 | 4-7 | 13 |
| 80 | 45.21 | 200 | 160 | 181 | 95 | 8-18 | 57.15 | 4-7 | 13 |
| 100 | 52 | 220 | 180 | 200 | 114 | 8-18 | 69.85 | 4-9 | 13 |
| 125 | 54.36 | 260 | 210 | 213 | 127 | 8-18 | 69.85 | 4-9 | 16 |
| 150 | 55.7 | 295 | 240 | 226 | 139 | 8-22 | 69.85 | 4-9 | 16 |
| 200 | 60.1 | 340 | 295 | 260 | 175 | 12-22 | 102 | 4-11 | 18 |
| 250 | 65.63 | 417 | 355 | 292 | 203 | 12-26 | 102 | 4-11 | 18 |
| 300 | 76.5 | 468 | 410 | 337 | 242 | 12-26 | 107.95 | 4-11 | 18 |
| 350 | 76 | 525 | 470 | 368 | 267 | 16-26 | 107.95 | 4-11 | 20 |
| 400 | 86 | 585 | 525 | 400 | 296 | 16-30 | 158.75 | 4-18 | 20 |
| 450 | 105 | 648 | 585 | 422 | 318 | 20-30 | 158.75 | 4-18 | 20 |
| 500 | 127 | 715 | 650 | 480 | 348 | 20-33 | 158.75 | 4-18 | 30 |
| 600 | 151 | 840 | 770 | 562 | 444 | 20-36 | 215.9 | 4-22 | 31 |
| 700 | 162 | 927 | 840 | 624 | 505 | 24-36 | 245 | 8-18 | 35 |
| 750 | 166 | 990 | 900 | 646 | 574 | | 245 | 8-18 | 62 |
| 800 | 187 | 1050 | 950 | 672 | 576 | 24-39 | 245 | 8-18 | 39 |
| 900 | 202 | 1169 | 1050 | 720 | 637 | 28-39 | 245 | 8-18 | 41 |
| 1000 | 215 | 1289 | 1170 | 800 | 701 | 28-42 | 245 | 8-18 | 45 |
| 1200 | 254 | 1485 | 1390 | 940 | 844 | 32-48 | 298 | 8-22 | 51 |
Dongying Hallim Metal industry Ltd., founded in 1995 and located in the famous Yellow River Delta, is an export-oriented industrial valve manufacturer, specialized in designing, manufacturing, inspecting and installing kinds of valves, including butterfly valves, check valves, resilient gate valves, ball valves, globe valves and Y type strainers. We're also profesional in the supply and installation of the floor heating systems.
Professional technical staff and capable management constitute a strong team. Equiped with various process machines and inspection equipments, under strict requirements and standards during the whole course of designing, material purchasing, processing, assembling, testing and inspecting, servicing, the quality of our products is well guaranteed.
As a certified manufacturer by ISO9001 and CE, our products find market in many countries, such as Russia, Poland, Germany, Czekh, Italy in Europe, Egypt and South Africa in Africa, Saudi Arabia, Iran, UAE in Mid East, Singapore, Malaysia, Indonsia in South East, Colombia in South America, etc. Both we and our clients benefit a lot from such a mutual beneficiary cooperation and network based on sincerity and credibility.
Guided by technological innovation and the notion of people oriented, it's possible to supply our customers with the best products and service with most competitive prices in the shortest time. The most prosperous future will be created by you and me.
