Butterfly Valve
| Price: |
Negotiable |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

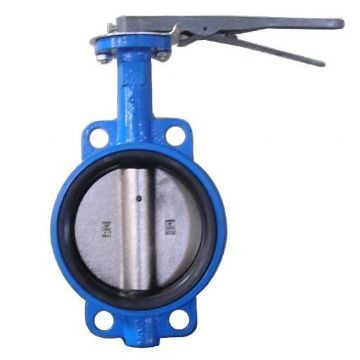

Butterfly valve
1. Butterfly valve are mainly used for pipeline flow, pressure and temperature control of various industrial automation productiong, for example: Electricity, petrifaction, metallurgy, environmental protection, energy management, fir-fighting systems.
2. Butterfly valve have good fluid control properties, and can operate simply.
3. Butterfly valve are not only widely used in general industries as petroleum, coal gas, chemical engineering, water treatment, but also used in the cooling water system of thermal power plant.
Butterfly valve Packaging Detail: Inner packing: Individual polybag for each valve Outer
Packing: Plywood box~veneer case, standard size is 1150*950*550mm/1150*950*600mm We can also make the case according to consumer's requirement or the real size of valves.
|
Butterfly valve Detailed Description: |
|
Series |
wafer type butterfly valve |
|
Size: |
DN40-DN1200/1.5” -48” |
|
End flange: |
ANSI B 16.1, ASTM B 16.47, EN 1092, AS 2129, ISO PN10/16, JIS B2212/2213, BS 10 Table D, BS 10 Table E |
|
Face to face: |
ANSI B 16.10 |
|
Top flange: |
ISO 5211 |
|
Nominal pressure: |
DN40-DN600(1.5” -24” ) PN1.0/1.6MPa(150/200PSI) DN700-DN1200(28” -48” ) PN1.0MPa(150PSI) |
|
Body: |
Cast Iron/Ductile Iron/WCB/Carbon steel/AL-Bronze/CF8, SS304/CF8M, SS316 |
|
Disc: |
Ductile Iron/Ni-plated ductile iron/Nylon-plated ductile iron/AL-Bronze/Rubber lined Disc/1.2501/1.4529/CF8/CF8M/Hastelloy Alloy/Monel |
|
Stem: |
SS416/SS304/SS316/SS431/17-4PH/Monel |
|
Seat: |
NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE |
|
Suitable temperature: |
Normal Temperature -45 ~150 |
|
Medium: |
Flesh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Wafer |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Work Pressure: |
Mid-Pressure (',2.5mpa< Pn <6.4mpa) |
| Seal Form: |
Force Sealed |
| Material Of Seal Surface: |
Soft Sealed |
| Structure: |
Centre Sealing |
