Butterfly Valves (RBV-A)

Butterfly Valves (RBV-A)
Price: US $ 10-20000/Piece
Trade Terms: CFR
Min Order: 1/Piece
Pay Type: L/C,T/T

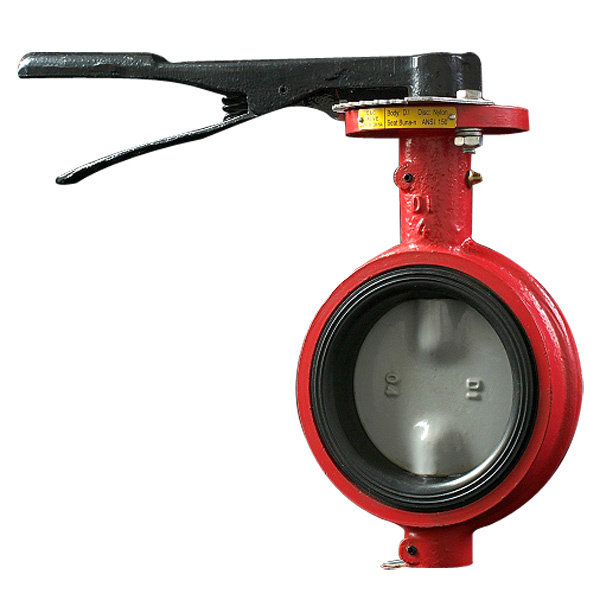

Wafer Type Two Pieces Shafts Pinless Butterfly Valve

DN 50-DN600
Material Configuration:
Body: DI, CS, SS, MONEL, SUPLEX SS,
Disc: DI, CS, SS, MONEL, SUPLEX SS, AL-BRONZE
Shaft: 410ss, 416ss, 304ss, 316ss, Monel, 17-4pH
Seat: EPDM, NBR, VITON, PTFE, SILICON, EPDM FOOD GRADE
Actuator: Cast iron handle, Aluminum handle, Gearbox.

SISCO RBV 010 series are specially designed as the line of concentric resilient seated butterfly valve. It has the following features:

1. Two pieces shafts pinless design delivers positive disc-to-seat location while offering maximum strength, eliminates exposed pins or bolts to line media which potentially leads to leak paths, corrosion, and vibration failure, while keeping advantage of two-piece shaft design.

2. Bi-directional bubble tight sht off, zero leakage.

3. Full EPDM/NBR lined valve interior islolating the line media from the body.

4. Dry shaft feature isolating the line media from the shaft and therefore standard shaft material can be used.

5. Smaller operating torque.

6. Light weight and volume lowering cost and achieving easy installation.

7. Full bore feature results in higher CV value.
Prod Model: RBV-A
Markets: North America,Eastern Europe,Mid East,Western Europe
Size: Dn 50 -Dn600
Working Temperature: Normal Temperature (',-40??C
Work Pressure: Low Pressure (',Pn<1.6mpa)
Seal Form: Supercharging Pressured Sealed
Material Of Seal Surface: Soft Sealed
Structure: Centre Sealing
Connection Form: Wafer Type
Sisco Flow Control Co., Ltd. is a leading valve manufacturer and exporter in China. SISCO factory covers 12, 000 square meters, containing general assemble workshops, machining workshops, coating workshops and testing workshops, equips with advanced assembling, machining, coating and testing equipments, and employs over 200 staffs many of whom are senior engineers and veteran managers. With more than 60 sets of production and testing equipment and adopting international advanced technology and standards, our company could fully meet our customers' requirement. This also guarantees the quality and delivery time of our products.

The leading products of our company are: Centerline Butterfly Valve, Centerline Pin-less Butterfly Valve, Flanged Butterfly Valve, Threaded Butterfly Valve, Wafer Style Check Valve, Threaded Check Valve, Global Valve, Gate Valve, Ball Valve, Needle Valve, Plunger Valve and supporting lengthening equipment. The main kinds of our valve operator are lever, gearbox actuator, pneumatic actuator and electric actuator. Our products share the characteristics of reasonable structure, good sealing performance, high corrosion resistance, low flow resistance, quick opening and closing, long service life, simple maintenance and easy to achieve self-control.

As a quality oriented manufacturer, SISCO, over the past 10 years, has developed a complete and effective quality control system covering raw material purchase, operation, quality inspection, record documentation and transportation. To enhance the quality control system, SISCO also developed and implemented series of quality control manuals, operation procedures, and employee education programs. As a result, the quality of SISCO's products has been wildly recognized not only by our customer, but also by various International Notified Bodies. SISCO now holds CQC ISO9001, DNV ISO 9001, CE, and UL certificates.
