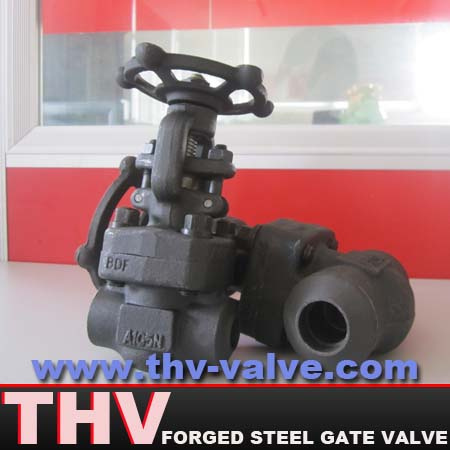

Buttt-Welded End Forged Steel Gate Valve

Buttt-Welded End Forged Steel Gate Valve
Price: US $ 12/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Butt-welded end forged steel gate valve


Standards:

Design Standard: API 602 / ASME B16.34 / BS5352
Testing Standard: API 598
Face to face according to ASME B16.10
Connection Standards:
NPT according to  ANSI / ASME B1.20.1
SW according to  ANSI / ASME B16.11
Flange according to ANSI / ASME B16.5
Butt-welded according to ANSI / ANSI B16.5
Marking MSS SP25
Pressure Class:  from Class150 to Class4500
Size from 1/2"  to 3"
Main Materials: A105; LF2; F5; F11; F22; 304L; 316L; F347; F321; F51; Monel; 20 alloy, etc.




NO.

Part Name

CS to ASTM

AS to ASTM

SS to ASTM

Type A105

Type F22

Type F304(L)

Type F316(L)

1

Body

A105

A182 F22

A182 F304(L)

A182 F316(L)

2

Seat Ring

A276 420

A276 304

A276 304(L)

A276 316(L)

3

Wedge

A276 430&410

A182 F304

A182 F304(L)

A182 F316(L)

4

Stem

A182 F6

A182 F304

A182 F304(L)

A182 F316(L)

5

Gasket

Corrugated SS+graphite

SS+PTFE

6

Bonnet

A105

A182 F22

A182 F304(L)

A182 F316(L)

7

Bonnet Bolt

A193 B7

A193 B16

A193 B8

A193 B8M

8

Pin

A276 420

A182 F304

9

Gland

A276 410

A182 F304(L)

A182 F316(L)

10

Gland Eyebolt

A193 B7

A193 B16

A193 B8

A193 B8M

11

Gland Flange

A105

A182 F11

A182 F304(L)

A182 F316(L)

12

Gland Nut

A194 2H

A194 4

A194 8

A194 8M

13

Yoke Nut

A276 420

14

H.W.Lock Nut

A194 2H

A194 4

A194 8

A194 8M

15

Nameplate

SS

16

Handwheel

A197

17

Bearing Gasket

A473 431

18

Stem Packing

Flexible Graphite

PTFE

Suitable Medium

W.O.G.etc

W.O.G.etc

HNO3,CH2OOH etc

Suitable Temperature

-29~425

-29~550

-29~180

Prod Model: THFSZ61H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature: Butt-Welded End
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Industrial Usage
Connection Form: Butte-Welded
Yongjia Taihong Valve Co., Ltd. (THV VALVE) is a professional high pressure valves manufacturer for application primarily in the petrochemical industry. Our product range consist of GATE VALVES, GLOBE VALVES, CHECK VALVES, BALL VALVES, BUTTERFLY VALVES & STRAINERS. All valves are designed, manufactured and tested according to the latest manufacturing specifications of the American and International Standards Organizations.

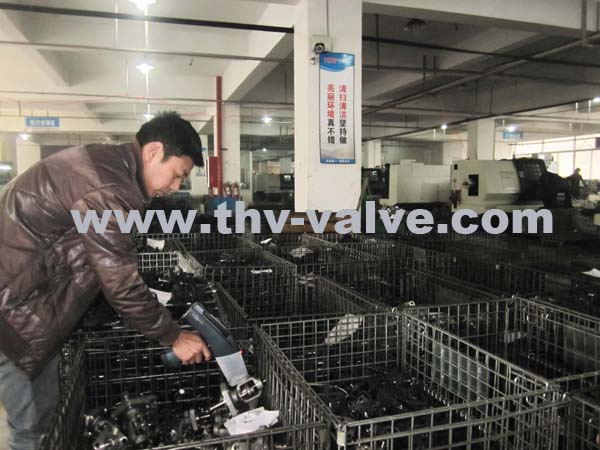

We possesses extrusion dies heat mechanical processing, welding, assembling, testing, etc. facilities. And also our company has a strong CAD design team and a professional QC team. Our strong production equipments and perfect testing means can effectively improve product quality and be sure users' interests.

THV VALVE has obtained certificates of ISO9001: 2008 and CE. All valves are with features of advanced structure, consummate production technology, complete specifications, good quality, etc. To satisfy the requirements of purchasing different types of valves from customers, we have established a trading department to purchase good quality products for our customers. All suppliers are listed in our SUPPLIER LIST after strict quality examining, and our QC will do inspect from raw materials to finished products, to ensure all specifications or requirements will not occur problems.

Quality first is our commitment, and competitive price and timely delivery are our promise. Our customers have trusted us to provide them with reliable valve products to meet their most severe and critical requirements. We welcome customers worldwide to build mutually beneficial network, and we are looking forward to cooperation with you on the successful road to create brilliant!
