Bypass Water Valve

Bypass Water Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Paypal,Western Union

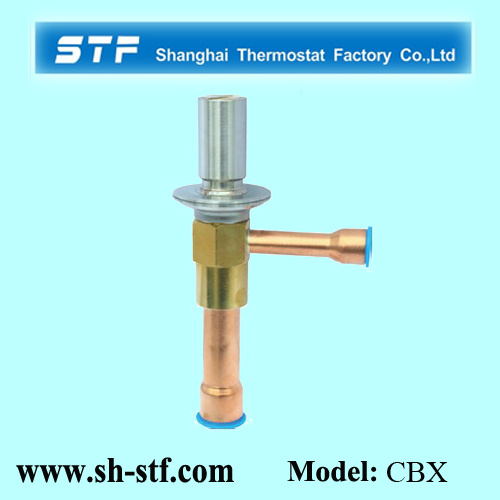

CBX Hot Gas Bypass Valve

General Characteristics
The CBX discharge-bypass valve is a kind of load adjust component for the refrigerating system with a non-adjustable compressor.
The CBX discharge-bypass valve can be used as automatic expansion valve under fixed pressure to maintain the fixed evaporation pressure (temperature).
The CBX discharge-bypass valve is capable of maintaining the minimum evaporating pressure.
ODF connecting.
Suitable for HFC and HCFC.
Maximum working pressure: 28bar.

 Model
                           Nominal capacity (kw)Connection         size
R134aR22R407cR404A/507R410A
CBX-0112.22.11.43      ODF Inlet:φ8 Outlet:φ12
CBX-021.83.53.42.64.4
CBX-032.644.84.33.56
CBX-043.25.95.34.37.4
CBX-053.876.25.18.8
CBX-064.487.85.810
CBX-075.59.78.87.112
CBX-086.61210.89.614.5
CBX-097.914.412.911.5217.6
CBX6-0110.5617.617.612.3226.4Inlet:3/8,1/2 Outlet:5/8,3/4,7/8
CBX6-0212.3221.1221.1214.0835.2
CBX6-0317.624.6424.6415.8438.72
CBX6-0421.1228.1628.1619.3645.76

Prod Model: bypass water valve
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium: Suitable for Hfc and Hcfc
Maximum Working Pressure: 28bar
Material: Brass
Connection Type: ODF Connecting
Usage: Discharge Pressure
Refrigerant: R22,R134A,R407c,R404/507,R410
Weight: 0.7kg
Power: Pneumatic
Structure: Regulating
Pressure: Medium Pressure
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.

In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.

Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.

Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.

We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
