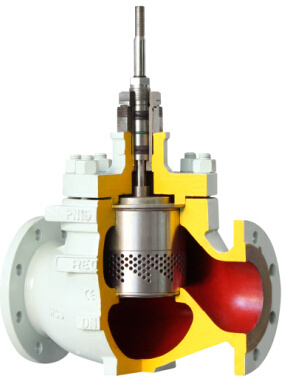

Cage Guided Control Valve

Cage Guided Control Valve
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
The 10T Series cage single-seat control valve adopts the cage guided structure and pressure balanced plug. It is suitable for applications with relatively high differential pressure. The balanced seal ring replaces the upper seat to change the traditional cage double-seat structure into the cage single-seat structure. This improvement has greatly enhanced the shut-off class of the cage valve. The plug makes use of the pressure balanced structure, the opening and closing force is low and the media under service conditions with high differential pressure can be controlled through relatively low actuator thrust. It is widely used for fluid control on pipelines of middle and low temperatures and middle and low pressures that require good dynamic stability. With such features as good sealing performance, high allowable differential pressure, cage guiding, large guiding area, good stability and compact structure, it can realize fast replacement of trims on the line with high maintenance efficiency, saving manpower and time. The balanced plug structure makes sure that the actuator thrust required is the lowest.

Parameters of control valves:
Trim features: cage guided
Balanced trim structure
Balanced seal ring structure
Body type: straight-through type / angle type
Bonnet type: standard type
Heat dissipation type
Cryogenic type
Bellows type
Flow characteristic: equal percentage
Linear
Quick open
Size: DN40-400(1.5"-16")
Pressure class: PN1.6\4.0\6.3Mpa(ANSI 150\300\600LB)
Leakage class: ASME B16.104 V(standard type metal seat)
ASME B16.104 VI(shut-off soft seat)
Pipe connection type: flange type
Butt welding type
Applicable temperature range: -30C° ~ 260C°
Actuator type: pneumatic diaphragm actuator
Pneumatic piston actuator
Electric actuator
Prod Model: 10T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Through Way Globe Valve
Stem Thread Position: Outside Screw Stem Globe Valve
Sealing Form: Gland Packings Globe Valve
Standard: JIS
Application: Bellows Globe Valve
Zhejiang Jinfeng Automation Meter Co., Ltd. is a high-tech private enterprise specialized in producing various electric and pneumatic control valves, control devices and integrating industrial control systems. The products including various electric and pneumatic control valves, control devices, etc. Produced by our company are mainly applied in such industries as petroleum, chemical industry, steel, metallurgy, building materials, light industry, electric power, environmental protection, food, etc. The products are used in many national key projects and exported to Asia, Europe, etc. The main product series include: 100 Series linear motion control valves, 200 Series gas regulator, 300 Series self-operated control valves, 400 Series parallel gate valve, 500 Series ball valves, 600 Series power station valves, 700 Series butterfly valves, 800 Series axial flow control valves and 900 Series pneumatic actuators, which provide all-round fluid control solutions according to various industrial demands. We took the lead among our peers in China in obtaining TS manufacturing license, ISO9001 certification, CE certification, API certification and other certifications.

Established in 2004, our company is located in Wenzhou of Zhejiang, a coastal city blessed with beautiful scenery, rich resources, talented people and convenient traffic conditions. As a control valve supplier specialized in designing and manufacturing high-end control valves and serving high-end customers, our company has more than 160 employees, 60% of which are technicians and employees with an educational background of university graduate or above. With actual assets of RMB 130 million Yuan, we have been granted more than 30 technological patents. In addition, we have various advanced equipment needed for manufacturing control valves and nationally advanced control valves flow testing systems and laboratories. Our company is a High-tech Enterprise in Zhejiang Province and a first class member of SINOPEC Resources Market.
