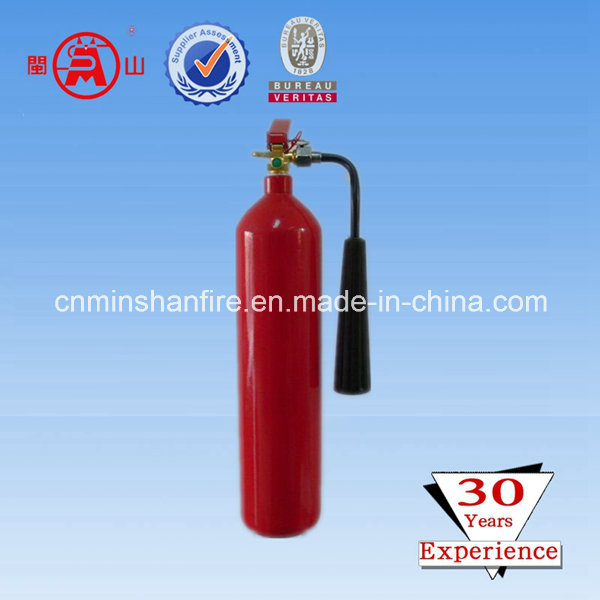

1. CO2 FIRE EXTINGUISHER
Carbon Dioxide (CO2) fire extinguishers are used for class B and C fires. CO2 extinguishers contain carbon dioxide,
a non-flammable gas, and are highly pressurized. The pressure is so great that it is not uncommon for bits of dry ice to shoot out the
nozzle. They don't work very well on class A fires because they may not be able to displace enough oxygen to put the fire out, causing it to re-ignite.
2.How to use CO2 fire extinguisher
1. Pull the Pin at the top of the extinguisher. The pin releases a locking mechanism and will allow you to discharge the extinguisher.
2. Aim at the base of the fire, not the flames. This is important - in order to put out the fire, you must extinguish the fuel.
3. Squeeze the lever slowly. This will release the extinguishing agent in the extinguisher. If the handle is seleased, the discharge will stop.
4. Sweep from side to side. Using a sweeping motion, move the fire extinguisher back and forth until the fire is completely out. Operate the extinguisher from a safe distance, several feet away, and then move towards the fire once it starts to diminish.
5. Be sure to have read the instructions on your fire extinguisher.
3.Specification
Model No. |
CD-02 |
CD-03 |
CD-4.5 |
CD-05 |
CD-06 |
CD-07 |
CD-09 |
CD-10 |
Capacity
(Kg) |
2 |
3 |
4.5 |
5 |
6 |
7 |
9 |
10 |
Cylinder Dia.
(mm) |
108
114 |
114 |
152 |
152 |
152 |
152 |
159 |
159 |
Cylinder Height
(mm) |
440
420 |
600 |
520 |
580 |
650 |
750 |
880 |
970 |
Volume
(L) |
3 |
4.5 |
6.8 |
7.5 |
9 |
10.5 |
13.5 |
15 |
Cylinder Weight
(Kg) |
5.8 |
7.5 |
10.5 |
11.8 |
13.8 |
14.5 |
18.5 |
20 |
Total Weight
(Kg) |
8.5 |
11.5 |
16.5 |
18.5 |
21.5 |
25 |
28 |
30 |
| Material | CK45 |
Working Pressure
(Bar) |
170 Bar |
Test Pressure
(Bar) |
250 Bar |
Temperature
Range (°C) |
-40 °C ~ +60 °C |
Fujian Minshan Fire-Fighting Co., Ltd. Was founded in 1982. Our company is one of the largest manufacturers producing the best quality and the most complete product lines of fire equipment in Fujian Province, China. The "Minshan" brand has won numerous national awards: "Top Ten Well-Known Brand of Chinese Fire Equipment Enterprises", "Top Ten Brand Customer Satisfaction of Chinese Fire Fighting Equipment Industry", "The Most Influential Brand of Fire Fighting Industry", "Fujian Famous Trademark", "Top Ten Commercial Credit Enterprise", "Top Ten National Enterprise", etc.
Our company has been the provincial advanced company continuously developing modern industrial facilities and office buildings since 1982. Our plant covers an area of 80, 000 square meters and we have more than 600 employees in our factory and subsidiaries. Our company integrates the R&D, quality, production and market as a large-scale system. Especially, we pay great attention to R&D and quality and our company has more than 60 technical engineers handling the strong technical strength, advanced production lines and complete inspection instruments.
With more than 30 years of professional manufacture experience, our product line now extends to the series as follows:
Hydrant:
-Indoor regular and Rotary Fire Hydrant;
-Indoor and Outdoor Pressure Reducing & Steady Fire Hydrant;
-Outdoor Fire Hydrant (Landing Fire Hydrant and Underground Fire Hydrant);
-Landing Dash-against Fire Hydrant;
-Aqueous Film-Forming Foam Hydrant;
Nozzle:
-Fire Nozzle (Euro and US Fire Nozzle);
Coupling:
-Fire Coupling (Fire Hose, Screw, Reducing Coupling);
Hose:
-Lined Fire Hose;
-Fire Hose Reel;
Adaptor:
-Fire Pump Adaptor (Types Include Landing, Underground, Sidewall, Multipurpose);
Cabinet Set:
-Fire Hydrant Cabinet;
-Fire Extinguishing Cabinet;
Automatic Series:
-Automatic Fire Extinguishing System (all series of fire, early suppression fast response, extended coverage and window sprinkler; Water curtain and water mist nozzle; Wet valve, dry and deluge alarm valve, signals gate valve, butterfly valve, globe valve; Pre-action system, water flow detector, fire pressure switch, etc. );
-Gas Automatic Fire Extinguishing System
-Fire Alarm Buttons and Escape Device Series, etc.
Today, our domestic market covers over 20 provinces in China and our products sell in many foreign areas like South Asia, the Middle East and North America. The annual production capacity is over 900, 000 sets. We implement our quality management system strictly for our every single product and conduct the following national standards: China Compulsory Product Certification (CCC Certificate) by CCCF and Certificate of Product Type Approval by Ministry of Public Security of People's Republic of China. We have passed ISO9001 certification and can meet many specified standard requirements from the worldwide markets.
We wish to cooperate with friends from all over the world to make a better future together!
