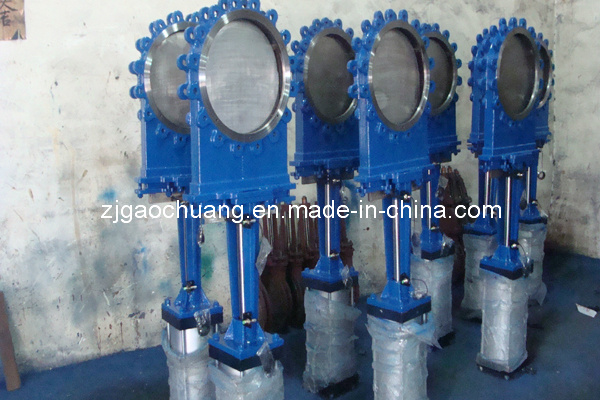

Carbon Steel Knife Gate Valve
| Price: |
US $ 30/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Carbon steel Knife Gate ValveThe knife gate valve is a uni-directional wafer valve for general industrial application.The nominal diameter available range from DN50 to DN600 with Lugged flange connections complying with EN 1092-1 PN10/PN16 or alternatively, ANSI B16.5.The knife gate valve is predominantly used in the paper and pulp, chemical, and mining industries, andthe food industry as well as sewage treatment plants, and in the sugar, steel and animal feed sectors.Drive actuators offered for the knife gate valve include handwheel with rising or non-rising stem, or alternatively double-or single-acting pneumatic cylinders (spring return), Bevel Gear, chain gear and electric actuators.The structure of the uni-directional knife gate valves is a wafer style cast monoblock body, with raised face and reinforced ribs for larger nominal diameters for extra body strength.The monoblock body of the knife gate valves is available in WCB LCB, WC6,WC9 etc.The slide plate of the knife gate valves is using stainless steel AISI 304,201,301,304L, 316L or AISI 316 or else. The plate radius of the knife gate valves slide gate has a bevelled cutting edge. As a result, solids can be cut through, achieving a tight seal in the closed position. On request, the thickness of the knife gate valves plate can be increased for higher operating pressures and/or higher quality material can be used. The slide plate's seat in the monoblock body is sealed tight by an elastomer seal in Body groove or Metal to metal sealing.The standard material used for the knife gate valves elastomer seal is EPDM/ NBRor Metal seatAlternatively, nitrile, viton, PTFE or else are available.The gland packing consists of several layers of braided fibre. An EPDM o-ring is additionally integrated into the layers of the knife gate valves gland packing as standard if request by customers TestingTesting includes a body shell test, a seat test and a cycling test to insure proper functioning of moving parts.Standard Shell test: Hydro test at 1.5 times the rated CWP (cold working pressure) Zero allowable leakageStandard Resilient Seat test: Hydro test at 15 psi (1 bar) and rated CWP Max. operating pressures for GAOCHUANG type PZ43 Knife Gate Valves:DN050-DN250: 10 bar
DN300-DN400: 6 bar
DN450: 5 bar
DN500-DN600: 4 bar
DN700-DN1200: 2 bar
| Prod Model: |
PZ43 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Form: |
Flange |
| Material: |
Carbon Steel |
| Seal Surface: |
Parallel Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
Located in Oubei Town of Yongjia County Reputed as Chinese Hometown of Pumps and Valves, ZHEJIANG GAOCHUANG PUMP VALVE Co., Ltd. Has always been devoted to research and development of industrial process control valves. it is a technology-oriented enterprise integrating research, development, manufacturing and sale. Thanks to our powerful strength, fine manufacturing equipment, consummate inspection procedures, complete product series, reasonable price and excellent after-sales service, our company has received wide trust and good comment from users
ZHEJIANG GAOCHUANG PUMP VALVE Co., Ltd Products includes: Knife gate valves, slurry valves, butterfly valves, wafer check valve, V notch ball valve, Strainer, Diaphragm Pumps, under water Pumps, which are widely used in automatic control systems in such industries as pulp & paper, chemical fiber, petrochemical industry, food, metallurgy, electric power, chemical industry, pharmacy, sewage treatment, mining and deslagging, furnace slag, coal ash, cement paste, morta, coal slurry, mining and etc. The control valves have been widely used in large-scale papermaking projects in China, their quality winning recoginition from users. GAOCHUANG Products asr also exported far to USA, Australia, Indonesia, Spain, tailand, South Africa, Italy and other countries and regions
GAOCHUANG is always pursuing the goal of providing customers with high quality products of low life cycle cost, we will strive to become the most popular and the most reliable valve supplier with the highest performanc-price ratio.
