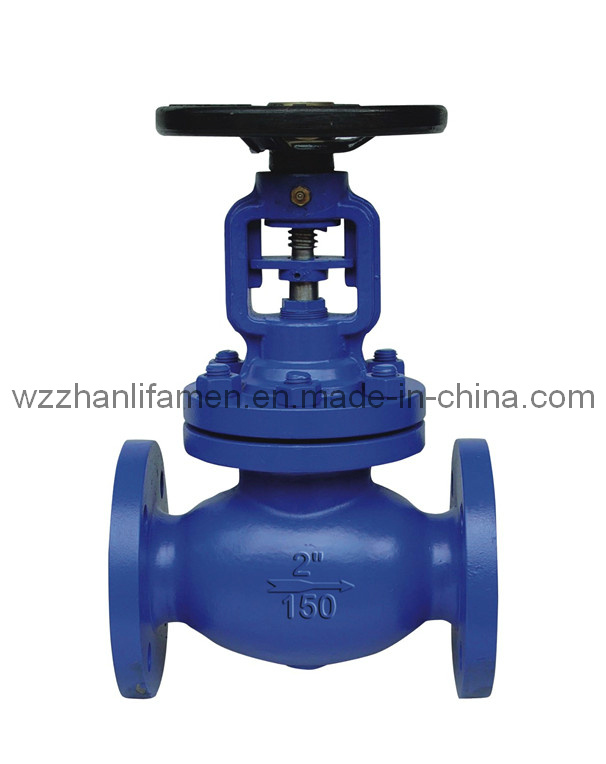

ANSI Bellows Seal Globe Valve is applied to cutting and connecting of pipelines medium that are used in various industries such as petroleum, chemical, pharmacy, electric industries under the pressure of Cl150LB-900LB, tempreature -29-425 Celsius degree.
Followings are the details of the API Cast Steel Bellows Seal Globe Valve made by our company:
1. Technical Specifications:
(1)Design Standard: BS1873-1975
(2)Face to Face Dimensions: ANSI B16.10-2009
(3)End Flange Dimension: ANSI B 16.5-2009
(4)Test Standard: API 598-2009
2. Performance Specifications:
(1)Shell Test: 3.0Mpa(150LB), 7.5Mpa(300LB), 15.0Mpa(600LB)
(2)Seal Test: 2.2Mpa(150LB), 5.5Mpa(300LB), 11.0Mpa(600LB)
(3)Back Seal Test: 2.2Mpa(150LB), 5.5Mpa(300LB), 11.0Mpa(600LB)
(4)AIRROOF: 0.6Mpa, 0.6Mpa, 0.6Mpa
(5)Suitable Temperature: -29-425 Celsius degree
(6)Suitable Medium: W. O. G
3. Main Parts and Materials:
(1)Body: WCB, CF8, CF8M
(2)Disc: A105+F6, 304, 316
(3)Stem: 410
(4)Gasket: Flexible Graphite+S. S304
(5)Bellows: 304, 316
(6)Bonnet: WCB, CF8, CF8M
(7)Packing: 304+Flexible Graphite
(8)Gland: WCB, CF8, CF8M
(9)Stem Nut: Brass
(10)Nut: A194-2H, A194-8
(11)Stem Nut: A194-2H, A194-8
(12)KeyBolt: A193 B7, B8
(13)Handwheel: Cast Steel
(14)Nut: A194-2H, 8
4. Main Sizes and Dimensions: Please consult the table below.
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
|
Size |
2″ |
2-1/2″ |
3″ |
4″ |
5″ |
6″ |
8″ |
10″ |
12″ |
14″ |
16″ |
L |
150LB |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
787 |
914 |
|
300LB |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
/ |
/ |
|
600LB |
292 |
330 |
356 |
432 |
/ |
559 |
660 |
787 |
838 |
/ |
/ |
A |
150LB |
152 |
178 |
190 |
229 |
254 |
279 |
343 |
406 |
483 |
533 |
597 |
|
300LB |
165 |
191 |
210 |
254 |
279 |
318 |
381 |
445 |
521 |
584 |
/ |
|
600LB |
165 |
191 |
210 |
273 |
330 |
356 |
419 |
508 |
559 |
603 |
/ |
B |
150LB |
120.5 |
139.5 |
152.5 |
190.5 |
215.5 |
241.5 |
298.5 |
362 |
432 |
476.5 |
539.5 |
|
300LB |
127 |
149 |
168 |
200 |
235 |
270 |
330 |
387.5 |
451 |
514.5 |
/ |
|
600LB |
127 |
149 |
168 |
216 |
266.5 |
292 |
349 |
432 |
489 |
527 |
/ |
C |
150LB |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
413 |
470 |
|
300LB |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
413 |
/ |
|
600LB |
92 |
105 |
127 |
157 |
186 |
216 |
270 |
324 |
381 |
413 |
/ |
b |
150LB |
16 |
17.5 |
19 |
24 |
25 |
26 |
29 |
31 |
32 |
35 |
/ |
|
300LB |
22 |
25 |
29 |
32 |
35 |
37 |
41 |
48 |
51 |
54 |
/ |
|
600LB |
26 |
29 |
32 |
38 |
45 |
48 |
56 |
64 |
67 |
70 |
/ |
f |
150LB |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
300LB |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
/ |
|
600LB |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
6.4 |
/ |
N-φ |
150LB |
4×19 |
4×19 |
4×19 |
8×19 |
8×22 |
8×22 |
8×22 |
12×25 |
12×25 |
12×29 |
16×29 |
|
300LB |
8×19 |
8×22 |
8×22 |
8×22 |
8×22 |
12×22 |
12×25 |
16×29 |
16×32 |
20×32 |
/ |
|
600LB |
8×19 |
8×22 |
8×22 |
8×25 |
8×30 |
12×29 |
12×32 |
16×35 |
20×35 |
20×38 |
/ |
H |
150LB |
341 |
367 |
375 |
483 |
537 |
549 |
590 |
754 |
941 |
1085 |
1296 |
|
300LB |
349 |
376 |
430 |
486 |
560 |
618 |
937 |
949 |
955 |
/ |
/ |
|
600LB |
425 |
502 |
521 |
620 |
/ |
886 |
932 |
1040 |
1280 |
/ |
/ |
|
W |
150LB |
200 |
250 |
250 |
300 |
300 |
350 |
400 |
450 |
640 |
640 |
640 |
|
300LB |
200 |
250 |
250 |
350 |
400 |
450 |
560 |
640 |
640 |
/ |
/ |
|
600LB |
250 |
300 |
350 |
450 |
/ |
560 |
660 |
710 |
760 |
/ |
/ |
