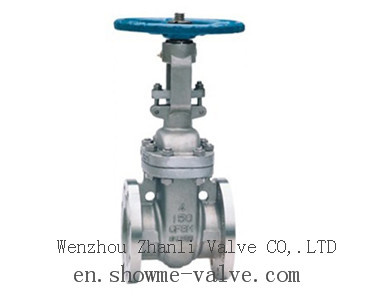

Followings are the details of the API Cast Steel Gate Valve made by our company:
1. Technical Specifications:
(1)Design Standard: API 600-2009
(2)Face to Face Dimensions: ANSI B16.10-2009
(3)End Flange Dimension: ANSI B 16.5-2009
(4)Test Standard: API 598-2009
2. Performance Specifications:
(1)Shell Test: 3.0Mpa(150LB), 7.5Mpa(300LB), 15.0Mpa(600LB)
(2)Seal Test: 2.2Mpa(150LB), 5.5Mpa(300LB), 11.0Mpa(600LB)
(3)Back Seal Test: 2.2Mpa(150LB), 5.5Mpa(300LB), 11.0Mpa(600LB)
(4)AIRROOF: 0.6Mpa, 0.6Mpa, 0.6Mpa
(5)Suitable Temperature: -29-425 Celsius degree
(6)Suitable Medium: W. O. G
3. Main Parts and Materials:
(1)Body: WCB, CF8, CF8M
(2)Seat: A105, F304, F316
(3)Wedge: WCB, CF8, CF8M
(4)Stem: 13Cr, F304, F316
(5)Gasket: Flexible Graphite + S. S 304
(6)Bonnet: WCB, CF8, CF8M
(7)Back Seat: A276-410, F304, F316
(8)Packing: Flexible Graphite
(9)Gland: A276-410, F304, F316
(10)Packing Gland: WCB, CF8, CF8M
(11)Nut: A194-2H, A194-8
(12)Stem Nut: Cu
(13)Nut: A194-2H, 8
(14)Handwheel: QT400-18
(15)Lock Nut: A194-2H
(16)Eyebolt: A193-B8, B7
(17)Spilt Pin: F304
4. Main Sizes and Dimensions: Please consult the table below.
If this product interests you, please feel free to contact with us!
Quality First and Reputation Uppermost!
Size | 2″ | 2-1/2″ | 3″ | 4″ | 5″ | 6″ | 8″ | 10″ | 12″ | 14″ | 16″ | 18″ |
L | 150LB | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 |
300LB | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 |
600LB | 292 | 330 | 356 | 432 | / | 559 | 660 | 787 | 838 | 889 | 991 | 1092 |
A | 150LB | 152 | 178 | 190 | 229 | 254 | 279 | 343 | 406 | 483 | 533 | 597 | 635 |
300LB | 165 | 191 | 210 | 254 | 279 | 318 | 381 | 445 | 521 | 584 | 648 | 711 |
600LB | 165 | 191 | 210 | 273 | 330 | 356 | 419 | 508 | 559 | 603 | 686 | 743 |
B | 150LB | 120.5 | 139.5 | 152.5 | 190.5 | 215 | 241.5 | 298.5 | 362 | 432 | 476.5 | 539.5 | 578 |
300LB | 127 | 149 | 168 | 200 | 235 | 270 | 330 | 387.5 | 451 | 514.5 | 539.5 | 578 |
600LB | 127 | 149 | 168 | 216 | 266.5 | 292 | 349 | 432 | 489 | 527 | 571.5 | 628.5 |
C | 150LB | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 |
300LB | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 |
600LB | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 |
b | 150LB | 16 | 17.5 | 19 | 24 | 25 | 26 | 29 | 31 | 32 | 35 | 37 | 40 |
300LB | 22 | 25 | 29 | 32 | 35 | 37 | 41 | 48 | 51 | 54 | 57 | 60 |
600LB | 26 | 29 | 32 | 38 | 45 | 48 | 56 | 64 | 67 | 70 | 77 | 83 |
f | 150LB | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
300LB | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 |
600LB | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 |
N-φ | 150LB | 4×19 | 4×19 | 4×19 | 8×19 | 8×22 | 8×22 | 8×22 | 12×25 | 12×25 | 12×29 | 16×29 | 16×32 |
300LB | 8×19 | 8×22 | 8×22 | 8×22 | 8×22 | 12×22 | 12×25 | 16×29 | 16×32 | 20×32 | 20×35 | 24×35 |
600LB | 8×19 | 8×22 | 8×22 | 8×25 | 8×30 | 12×29 | 12×32 | 16×35 | 20×35 | 20×38 | 20×41 | 20×45 |
H | 150LB | 386 | 435 | 483 | 587 | 673 | 767 | 955 | 1146 | 1328 | 1519 | 1721 | 1900 |
300LB | 417 | 460 | 526 | 650 | 694 | 824 | 987 | 1192 | 1431 | 1559 | 1758 | 1935 |
600LB | 427 | 473 | 538 | 657 | / | 872 | 1101 | 1279 | 1486 | 1643 | 1798 | 2101 |
W | 150LB | 200 | 200 | 250 | 250 | 300 | 300 | 350 | 450 | 500 | 600 | 600 | / |
300LB | 200 | 250 | 250 | 250 | 300 | 350 | 450 | 500 | 560 | 760 | 760 | / |
600LB | 250 | 250 | 300 | 350 | / | 500 | 650 | 720 | 760 | 760 | 760 | / |
Wenzhou Zhanli Valve Co., Ltd. Located in the famous valves & pumps hometown "Oubei town, Wenzhou". We are the advanced valve manufacturer with valve designing & developing, manufacturing, sales, and after-sale services.
We mainly produce steam system valves & equipments. For years, we are devoting ourselves to the domestic sales and export businesses, strictly controlling the quality. We insist on "Quality First and Reputation Uppermost" and obtained the trust & approval from most of our domestic & foreign customers.
Our main products and services are: DIN Valve Series, such as: DIN Gate Valves, DIN Globe Valves, DIN Check Valves, DIN Y Type Strainers, DIN Bellows Seal Gate Valves, DIN Bellows Seal Globe Valves. API Valve Series, including: API Gate Valves, API Globe Valves, API Swing Check Valves. Forged Steel Gate, Globe and Check Valves. Steam Trap Series, including: Free Float Steam Traps, Ball Float Steam Traps, Thermodynamic Steam Traps, Inverted Bucket Steam Traps and Thermostatic Steam Traps …

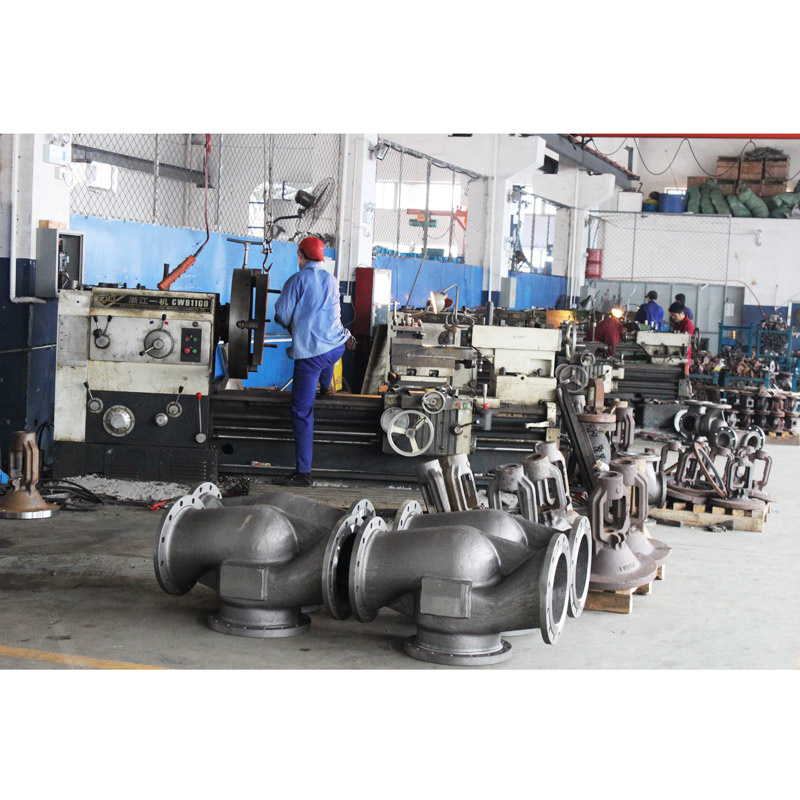

We purchased advanced machines & equipments, employed a qualified & skillful technical workers.
