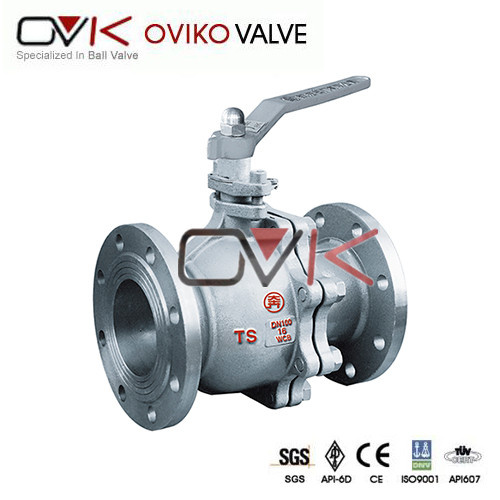

Cast/Forge Soft Seat Trunnion/Floating Ball Valve

Cast/Forge Soft Seat Trunnion/Floating Ball Valve
Price: US $ 50-20000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
CAST FLOATING BALL VALVE
1. Special Seat Design
The floating ball valve adopts the design of flexible seal ring structure. When the medium  pressure is lower, the contact area of seal ring and ball is smaller. so higher sealing ratio is formed at the place where the seal ring and ball contact to ensure reliable sealing. When the medium pressure is higher, the contact area of seal and ball becomes bigger along with the elastic deformation of seal ring, so the seal ring can endure higher medium thrust without being damaged.
FORGED FLOATING BALL VALVE
1. Special Seat Design
The floating ball valve adopts the design of flexible seal ring structure. When the medium  pressure is lower, the contact area of seal ring and ball is smaller. so higher sealing ratio is formed at the place where the seal ring and ball contact to ensure reliable sealing. When the medium pressure is higher, the contact area of seal and ball becomes bigger along with the elastic deformation of seal ring, so the seal ring can endure higher medium thrust without being damaged.


FORGED TRUNNION BALL VALVE
The trunnion ball valve is used to cut off or connect the media in various of Class150~Class2500. The valves made of different materials are suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, oxidizer, urea and etc. The driving modes include manual operation and electric operation. The connection ends can be flange or butt welding.
CAST TRUNNION BALL VALVE
The trunnion ball valve is used to cut off or connect the media in various of Class150~Class2500. The valves made of different materials are suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, oxidizer, urea and etc. The driving modes include manual operation and electric operation. The connection ends can be flange or butt welding.

PART NAMEABCDEF
BodyA105A105A105F304F316LF2
BallA105+ENPF304F316F304F316LF2+ENP
StemA105+ENPF304F316F304F316LF2+ENP
StudB7MB7MB7MB8MB8ML7M
Nut2HM2HM2HM8M8M7M
SeatPTFE/PPL/NYLON/DEVLON
O-ringVITON
PackingGRAPHITE/PTFE
Anti-fire Gasket304+GRAPHITE

PART NAMEABCDEF
BodyWCBWCBWCBCF8CF8MLCC
BallA105+ENPF304F316F304F316LF2+ENP
StemA105+ENPF304F316F304F316LF2+ENP
StudB7MB7MB7MB8MB8ML7M
Nut2HM2HM2HM8M8M7M
SeatPTFE/PPL/NYLON/DEVLON
O-ringVITON
PackingGRAPHITE/PTFE
Anti-fire Gasket304+GRAPHITE

Prod Model: OVK-150429
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2''-56''
Pressure: 150-2500
End Connection: RF/Rtj/Butt Weld,Thread,Socke Ends
Design And Test: API598/6D/En17292
Fire Safe: API607 and Nace Mr 0175
Certificate: API6d,CE,ISO9001
Connection Form: Flange
Channel: Straight Through Type
Structure: Flexible Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Household Usage
Function: Fluid Control
Nominal Pressure: 150-2500bl
OVIKO is one of leading all kinds of ball valve and ball valve parts manufacturers. The products included Trunnion mounted ball valves, floating ball valves, top entry ball valves, fully welded ball valves, metal to metal ball valves, 3 way ball valves, V port ball valves, etc. Also we can make ball valves' parts according to customer drawings.

Our products nominal dia is 1/4"--48". Pressure grade is 150LB-2500LB. Working temperature is -196ºC-450ºC. The material are carbon steel, alloy steel, stainless steel, and so on. To guarantee the products quality, we passed ISO 9001 International Quality Assurance System, CE, API 6D, API607, API6FA, etc. High quality and excellent after-service get our products good market nearly every parts of the world, such as U. S. A, Spain, UK, Italy, Canada, Mexico, MID-east, India, etc. With years of exporting experience, we are good at manufacturing to standards: GB, DIN, ANSI, BS, AS, JIS, ISO, API etc.

We insist on the concept of "Quality first, prestige important", and after continuous innovation and development, the products have been widely used in many fields, range from oil plants, chemical plants, fertilizer plants, smelters, medical factories and power stations. Not only the products sold well in the world's market, but also have enjoyed a good reputation in the markets. We offers the customers with valves of excellent quality and best service, hope to build a new brilliant with you in the future.
