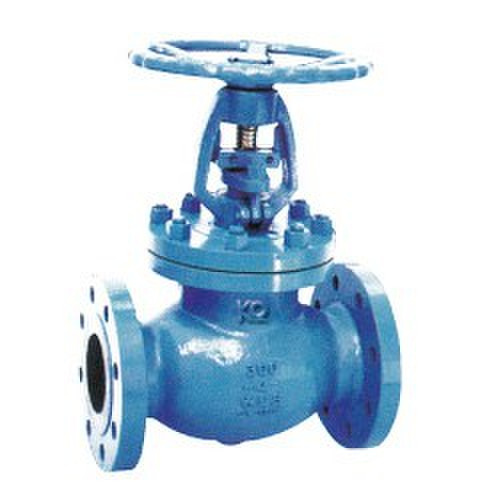

Cast Iron Bellow Seal Globe Valve
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Bellow Seal Globe Valve Brief introduction:Bellow Seal Globe valve with high quality,good flexibility,long life span etc.,which can work in high temperature and pressure circumstance with good appearance, nice function and superior. Widely used in petroleum, chemistry, water treatment industries. Technical Specification Nominal Pressure(MPa): 1.6, 2.5, 4.0
Sizes: DN15mm to 400mm Applications:Industry, power stations, flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc.Mediums: Steam, gases, hot water, thermal oil, process water, vacuum facilities, ammonia etc.
|

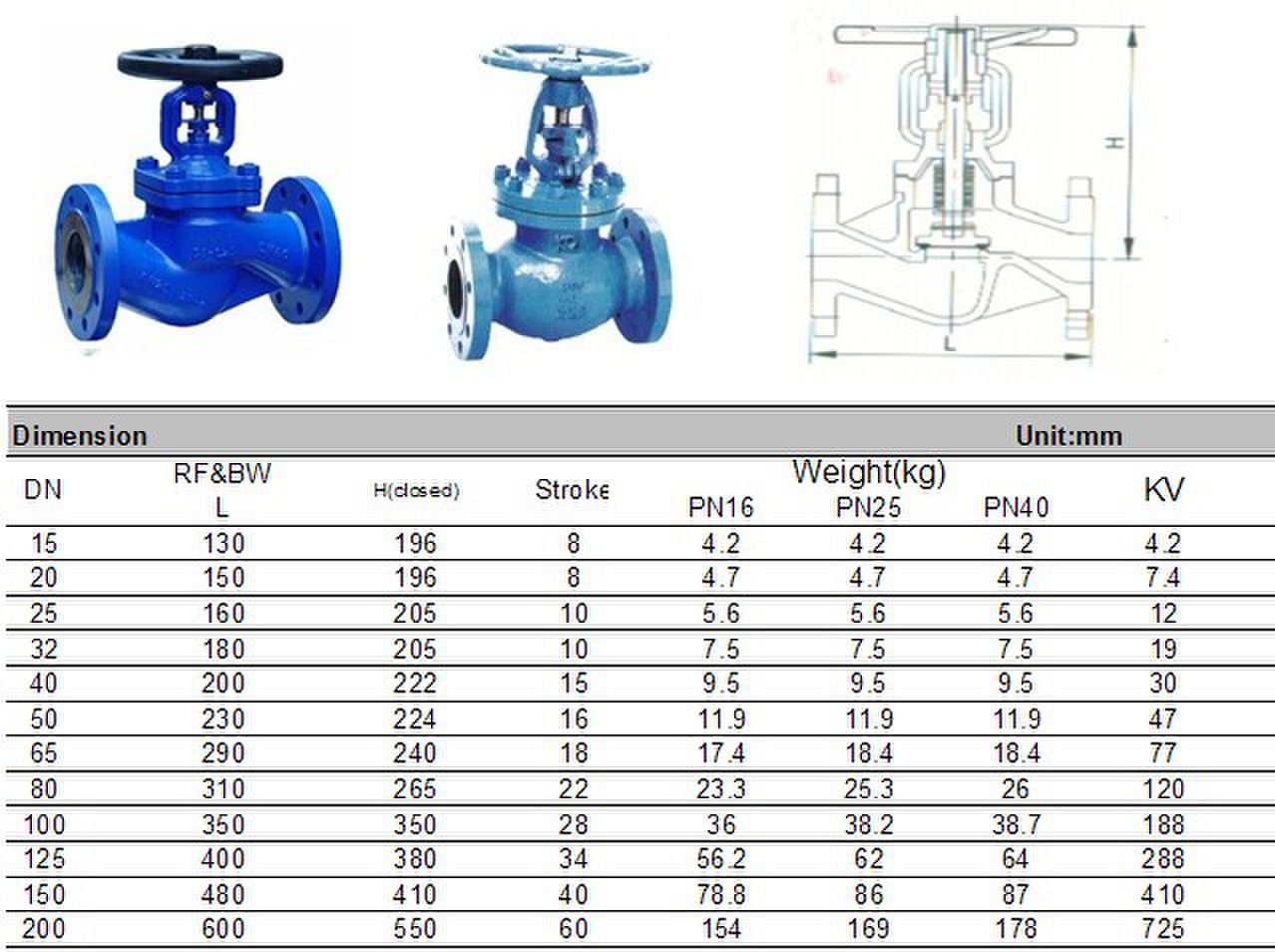

Dimension Unit:mm |
|
DN |
|
|
RF&BW |
|
|
H(closed) |
|
Stroke |
|
Weight(kg) |
|
KV |
|
|
|
|
L |
|
|
|
|
PN16 |
|
PN25 |
|
PN40 |
|
|
|
15 |
|
|
130 |
|
|
196 |
|
8 |
|
4.2 |
|
4.2 |
|
4.2 |
|
4.2 |
|
|
20 |
|
|
150 |
|
|
196 |
|
8 |
|
4.7 |
|
4.7 |
|
4.7 |
|
7.4 |
|
|
25 |
|
|
160 |
|
|
205 |
|
10 |
|
5.6 |
|
5.6 |
|
5.6 |
|
12 |
|
|
32 |
|
|
180 |
|
|
205 |
|
10 |
|
7.5 |
|
7.5 |
|
7.5 |
|
19 |
|
|
40 |
|
|
200 |
|
|
222 |
|
15 |
|
9.5 |
|
9.5 |
|
9.5 |
|
30 |
|
|
50 |
|
|
230 |
|
|
224 |
|
16 |
|
11.9 |
|
11.9 |
|
11.9 |
|
47 |
|
|
65 |
|
|
290 |
|
|
240 |
|
18 |
|
17.4 |
|
18.4 |
|
18.4 |
|
77 |
|
|
80 |
|
|
310 |
|
|
265 |
|
22 |
|
23.3 |
|
25.3 |
|
26 |
|
120 |
|
|
100 |
|
|
350 |
|
|
350 |
|
28 |
|
36 |
|
38.2 |
|
38.7 |
|
188 |
|
|
125 |
|
|
400 |
|
|
380 |
|
34 |
|
56.2 |
|
62 |
|
64 |
|
288 |
|
|
150 |
|
|
480 |
|
|
410 |
|
40 |
|
78.8 |
|
86 |
|
87 |
|
410 |
|
|
200 |
|
|
600 |
|
|
550 |
|
60 |
|
154 |
|
169 |
|
178 |
|
725 |
|
|
250 |
|
|
730 |
|
|
715 |
|
75 |
|
238 |
|
260 |
|
283 |
|
1145 |
|
| Prod Model: |
J41H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 150lbs~2500lbs: |
1/2inch~24inch;Dn15~Dn600 |
| Structure: |
Through Way Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Standard: |
JIS |
| Application: |
Bellows Globe Valve |
