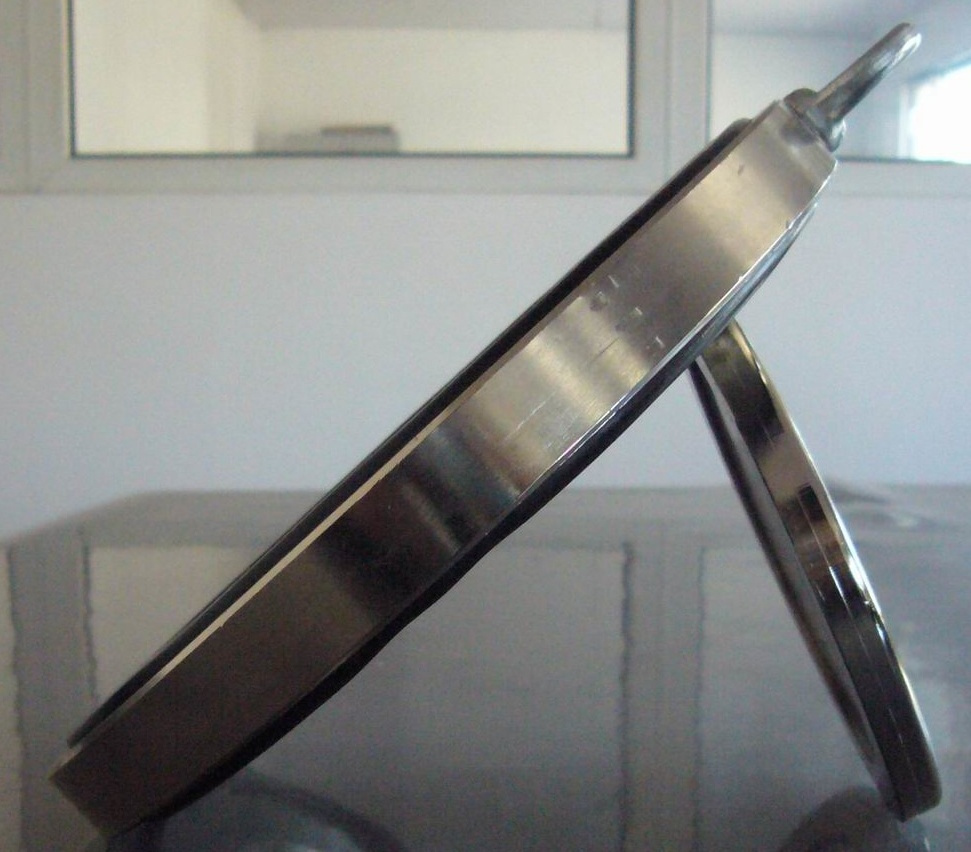

Cast Iron/Cast Steel Single Plate Wafer Check Valve

Cast Steel Single Plate Wafer Check Valves, wafer check valve

Standard compliance
1) Design and manufacture: API6D, API594
2) Test and inspection: API598
3) Face to face dimensions: API594
4) Install between flanges: ANSI B16.5, B16.47 SERIES A & SERIES B, JIS, DIN, BS

Specifications:
1) Size: 1/2" to 60"
2) Class: 150LB to 2500LB
3) Type: Double plate or single plate, wafer type, lugged type, flanged type
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, DUPLEX SS, MONEL, ALLOY 20, cast iron etc.

Standard materials of parts

No.	Part	Material
1	Lifting ring bolt	SS
2	Screw	SS
3	Axle bushing	SS
4	Spring	SS or Inconel-X
5	Body	WCB, CF8,CF 8M , CF3, CF 3M
6	Disc	WCB, CF8, CF 8M , CF3, CF 3M
7	Disc hinge pin axle	SS304,SS316, SS 304L , SS 316L
8	Pin axle bearing	SS304,SS316, SS 304L , SS 316L
9	Plate	SS304, SS316, SS 304L , SS 316L
	Sealing face	Metal, NBR, BUNA, EPDM
Other cast steel material is also available upon request.



Dimension and Weight  Unit: in (inch)

class

size

2

2-1/2

3

4

6

8

10

12

14

16

18

20

24

150LB

L

2-3/8

2-5/8

2-7/8

2-7/8

3-7/8

5

5-3/4

7-1/8

7-1/4

7-1/2

8

8-5/8

8-3/4

D

4-1/16

4-13/16

5-5/16

6-13/16

8-3/4

11

13-5/16

16-1/8

17-3/4

20-1/4

21-5/8

23-7/8

28-1/4

Wt.(kg)

2.1

3.1

4

6.2

13.1

25

39

54

80

118

210

240

410

300LB

L

2-3/8

2-5/8

2-7/8

2-7/8

3-7/8

5

5-3/4

7-1/8

8-3/4

9-1/8

D

4-5/16

5-1/16

5-13/16

7-1/16

9-7/8

12-1/16

14-3/16

16-5/8

19-1/16

21-1/4

Wt.(kg)

2.3

5

5.3

7.4

18.2

31

54

88

128

169

600LB

L

2-3/8

2-5/8

2-7/8

3-1/8

5-3/8

6-1/2

8-3/8

9

D

4-5/16

5-1/16

5-13/16

7-9/16

10-7/16

12-9/16

15-13/16

17-15/16

Wt.(kg)

3.5

5

7

12

35

45

77

110

900LB

L

2-3/4

3-1/4

3-1/4

4

6-1/4

8-1/8

D

5-9/16

6-7/19

6-9/16

8-1/16

11-3/8

14-1/8

Wt.(kg)

6.5

9

14

24

43

56
