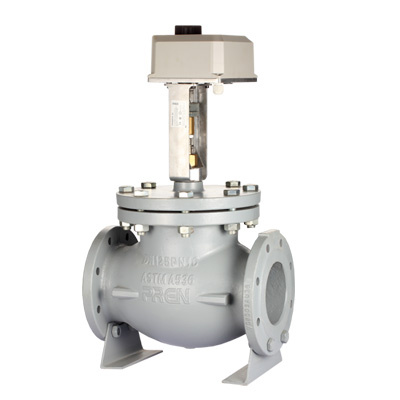

V100C, designed to be used together with PRVAR10 actuator (or other brand actuator), it can be used among the water temperature range from -5° C to +150° C.
Technical Parameter
1. Flow Characteristic: Equal Percent
2. Max. Differential Pressure: 1.0MPa
3. Stroke: 40MM
4. Medium Temperature: -5° C+150° C
5. Mediul"Hot Water, Cool Water, Mixture of Ethylene Glycol and Water
6. Adjustable Range: 100: 1
7. Max. Leak: Kvs 0.05%
8. Pressure Leve: PN25
9. Connecting: (Flange Connecting)
|
Material |
|
|
Valve Body |
Ductile Cast Iron |
|
Valve Plug |
304
Stainless Steel 304 |
|
\ Valve Rod, Valve Seat |
304
Stainless Steel 304 |
|
Valve Deck |
Ductile Cast Iron |
|
Sealing Element |
PTFE V(),
Enhanced PTFE V Ring (Mix Graphite), Other Sealing Element is optional. |
|
O O-Ring |
FPM |
Model No. |
Valve |
Specification |
Kvs |
Actuator |
Sealing Element |
Closed Differential Pressure (Kpa) |
|
V100C160201 |
2 Two-Way |
DN100 |
160 |
PRVAR30 |
PVR-100 |
300 |
|
V100C250202 |
2 Two-Way |
DN125 |
250 |
PRVAR30 |
PVR-100 |
250 |
|
V100C360203 |
2 Two-Way |
DN150 |
360 |
PRVAR30 |
PVR-100 |
200 |
|
V100C1160201 |
2() Two-Way (Steam) |
DN100 |
160 |
PRVAR30 |
PVR-100 |
300 |
