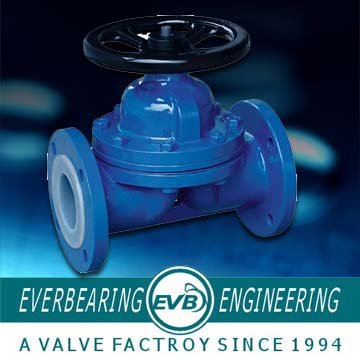

Cast iron diaphragm valve
Detailed Product Description
1, DIN, API, ANSI standard
2, lining
3, durable
4, reasonable price
5, logical structure
Our products are of high quality and competitive price.
More information is available upon receipt of your enpuiry!
Please feel free to contact for details!
|
Technique standard |
|
Design |
GB/T 12235 |
|
Face to Face |
GB/T 12221 HG/T 3704-2003 ASME B16.10 |
|
Flange dimension |
HG20592-97 ANSI B16.5a |
|
Mode of driving |
Hand, electrically-driven, air-operated |
|
Nominal Pressure |
0.6-2.5MPa/Class 150 |
|
Pressure test |
GB/T 13927, API 1598 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main parts material specifications |
|
Name |
Refined D. I |
Cast steel |
Stainless steel |
|
QT |
C |
P |
R |
RL |
RL |
|
Body/Bonnet |
QT400 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
|
Stem |
2Cr13 |
2Cr13 |
CF8 |
CF8M |
CF3 |
CF3M |
|
Inner lining |
FEP(F46)/PTFE(F4)/PFA/PO/PE |
|
Daiphragm |
FEP(F46)/CR/PFA/FPDM |
|
Disc |
QT400 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
|
Bolt |
35 |
35 |
SS316 |
SS316 |
SS302 |
SS302 |
|
Nut |
45 |
45 |
SS304 |
SS304 |
S304 |
SS304 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Main dimensions |
|
DN |
L |
D |
D1 |
D2 |
f |
b |
Z-Φ d |
D0 |
H |
|
15 |
125 |
95 |
65 |
45 |
3 |
15 |
4-14 |
120 |
120 |
|
20 |
135 |
105 |
75 |
55 |
3 |
17 |
4-14 |
120 |
120 |
|
25 |
145 |
115 |
85 |
65 |
3 |
17 |
4-14 |
160 |
130 |
|
32 |
160 |
140 |
100 |
75 |
3 |
19 |
4-18 |
160 |
135 |
|
40 |
180 |
150 |
110 |
85 |
3 |
19 |
4-18 |
180 |
160 |
|
50 |
210 |
165 |
125 |
100 |
3 |
21 |
4-18 |
200 |
165 |
|
65 |
250 |
185 |
145 |
120 |
3 |
21 |
4-18 |
250 |
200 |
|
80 |
300 |
200 |
160 |
135 |
3 |
22 |
8-18 |
280 |
220 |
|
100 |
350 |
220 |
180 |
155 |
3 |
23 |
8-18 |
300 |
275 |
|
125 |
400 |
250 |
210 |
185 |
4 |
24 |
8-18 |
320 |
335 |
|
150 |
460 |
285 |
240 |
210 |
4 |
26 |
8-23 |
350 |
380 |
|
200 |
570 |
340 |
295 |
265 |
4 |
26 |
12-23 |
450 |
500 |
|
250 |
680 |
405 |
355 |
320 |
4 |
28 |
12-26 |
500 |
575 |
