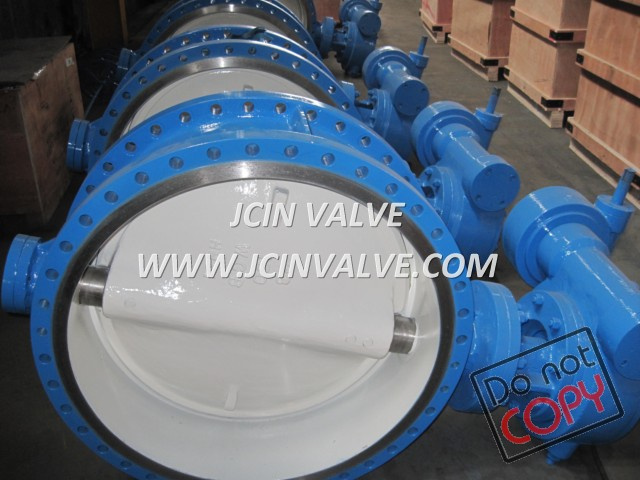

This butterfly valve is double flanged butterfly valve with an eccentrical disc. It provides complete leakage tightness by its elastomer which is connected to disc with the retaining ring. It is generally controlled manually with gearbox, electrical, pneumatic and hydraulic actuator. The design can be either eccentrical or double eccentrical.
Applicable Standard
Design Standard: API 609, DIN 3354;
Face to Face: API 609, EN 558-1, DIN 3202; ISO 5752;
End Connection: ASME B16.5, ANSI B16.47, EN 1092-1;
Inspection and Test: API 598, DIN 3230;
Design Features
Triple eccentric or double eccentric design
Low Opening & Clothing Torque
Metal to metal seated
Compact design
Blow-out proof shaft
ISO top flange
|
Size: |
2" ~ 96" (DN50 ~ DN2400) |
|
Rating: |
ANSI 150lb (PN2.5~PN40) |
|
Body Materials: |
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel. |
|
Operation: |
Lever, Gear, Electric, Pneumatic, Hydraulic |
|
|
Please contact us for other sizes, pressures and materials. |
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.
The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.
The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.
JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.
At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.
JCIN VALVE---Your honest partner on Industrial valve.
