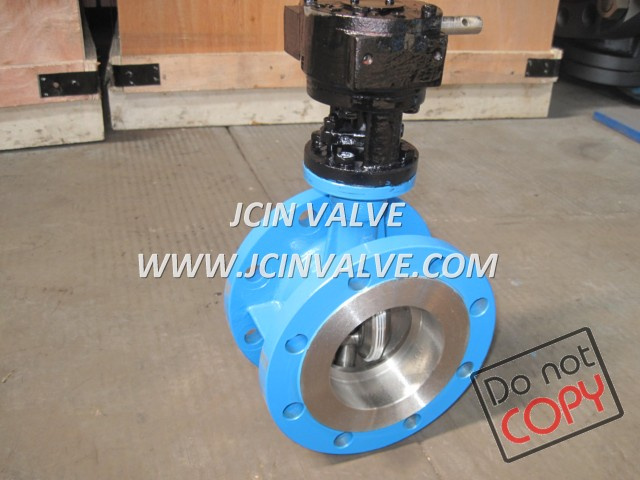

Cast Iron Double Flanged Butterfly Valve (D341W)

Cast Iron Double Flanged Butterfly Valve (D341W)
Price: US $ 50-30000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Details:

The butterfly valve is provided with tripe-eccentric multi-layer metal sealing structure. It is mainly used for regulating flow rate and cutting off or connecting fluid for different mediums in the pipeline in such applications including petroleum, natural gas, chemical industry, metallurgy, power plant, water supply and drainage, etc.

Applicable Standard:

Design Standard: API 609, DIN 3354;
Face to Face: API 609, EN 558-1, DIN 3202; ISO 5752;
End Connection: ASME B16.5, ANSI B16.47, EN 1092-1;
Inspection and Test: API 598, DIN 3230;

Design Features
Triple eccentric or double eccentric design
Low Opening & Clothing Torque
Metal to metal seated
Compact design
Blow-out proof shaft
ISO top flange
Size:   2" ~ 96" (DN50 ~ DN2400)
Rating:   ANSI 150lb ~ 600lb(PN2.5-PN100)
Body Materials:  Carbon Steel, Cast iron, Duplex iron, Stainless Steel, Alloy Steel, Duplex Steel etc.
 Operation:  Lever, Gear, Electric, Pneumatic, Hydraulic
Prod Model: D341W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2" ~ 96"Dn50 ~ Dn2400
Work Pressure: Ultra-High Pressure (',Pn>100mpa)
Material Of Seal Surface: Metal Hard Sealed
Connection Form: Flange
Structure: Three-Eccentric Sealing
Seal Form: Force Sealed
Working Temperature: High Temperature (',T>450??C)
Application: Gas Industrial Usage
JCIN VALVE is a leading manufacturer and supplier of valves for Oil, Gas, and Power Generation industries.

The main products include Gate Valves, Globe Valves, Check Valves, Butterfly Valves, Dual Plate & Strainers, in forged or cast steel. Our product range starts from 1/2" and extends to 36" valves with pressure ratings ANSI / ASME Class 150 to 2500 Lbs, and DIN PN 16 to PN 100.

The highest quality and variety of used materials (Carbon Steels, Low Temperature Carbon Steel, Alloy Steels, Stainless Steels, and other special alloy steel according to ASTM & ASME) can satisfy all the requirements of the Chemical, Petrochemical and Power Plants, Oil and Gas, Off-Shore & On-Shore, Refining, Ship Building, Water Treatment & Energy Generation.

JCIN VALVE's annual sales include 80% for international market, which mainly exported to South Africa, Italy, Poland, Spain, and South America area, we are strive to become a global brand of industrial valve.

At JCIN VALVE, Our main target is to offer a high quality product and service to ensure the highest degree of satisfaction and fidelity of our customers.

JCIN VALVE---Your honest partner on Industrial valve.
