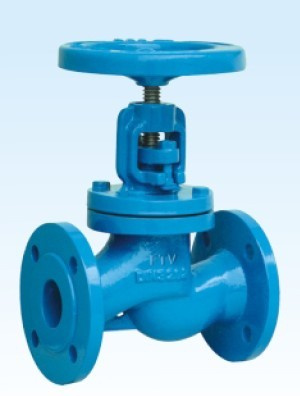

Cast Iron/Ductile Iron Globe Valves-Flanged End
| Price: |
US $ 20-600/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Set |
| Pay Type: |
L/C,T/T,D/P |
Cast Iron/ductile iron Globe Valves,cast iron flanged globe valveStandard compliance:
1) Design and manufacture: MSS-SP-85, BS5152, DIN2533
2) Test and inspection: MSS-SP-85, BS6755, DIN3230
3) Face to face dimensions: ANSI 16.10, BS5152, DIN3202 F1
4) Flanged end: ANSI 16.5, BS4504, DIN 2533
Specifications:
1) Size: 1/2" to 12"
2) Class: PN10, PN16.125LB, 150LB, JIS5K, JIS10K
3) Type: Bolted Bonnet, rising stem, brass/bronze/stainless steel seat ring.
4) Material: CAST IRON, DUCTILE IRON
5) Operation: Hand wheel
Bolted bonnet, Outside screw & yoke, Rising stem.
Description:
Design and manufacture: BS5152
Face to face dimensions: Series 2 of BS5152
Flanged end: BS4504
Size: DN50 ~ DN300
Safe working pressure:1.6 MPa
Standard materials of parts| No. | Parts | Materials | British Standard |
| 1 | Body | Cast iron | BS1452 Gr220 |
| 2 | Seat ring | Cast bronze | BS1400 LG2 |
| 3 | Disc | Cast bronze | BS1400 LG2 |
| 4 | Gasket | Brass | BS2874 CZ122 |
| 5 | Swivel nut | Cast brass | BS1400 PCB1 |
| 6 | Bolt | Steel | BS970 43A |
| 7 | Body gasket | Graphite |
|
| 8 | Bonnet | Cast iron | BS1452 Gr220 |
| 9 | Packing | Graphite |
|
| 10 | Packing gland | Cast brass | BS1400 PCB1 |
| 11 | Gland follower | Ductile iron | BS2789 Gr420-12 |
| 12 | Gland bolt | Steel | BS970 43A |
| 13 | Nut | Steel | BS970 43A |
| 14 | Stem | Brass | BS2874 CZ122 |
| 15 | Yoke bushing | Cast brass | BS1400 PCB1 |
| 16 | Screw | Steel | BS970 43A |
| 17 | Handwheel | Cast iron | BS1452 Gr220 |
| 18 | Nameplate | Aluminium |
|
| 19 | Washer | Steel | BS970 43A |
| 20 | Handwheel nut | Steel | BS970 43A |
Dimensions (in mm) and weight| DN | L | D | b | H | D0 |
| 50 | 203 | 152 | 20 | 259 | 178 |
| 65 | 216 | 178 | 20 | 300 | 178 |
| 80 | 241 | 190 | 22 | 318 | 200 |
| 100 | 292 | 229 | 24 | 402 | 254 |
| 125 | 330 | 254 | 26 | 419 | 300 |
| 150 | 356 | 279 | 26 | 479 | 300 |
| 200 | 495 | 343 | 30 | 537 | 348 |
| 250 | 622 | 406 | 32 | 640 | 400 |
| 300 | 699 | 483 | 32 | 733 | 457 |
| Prod Model: |
CI/DI FE GLOBE VALVE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Cast Iron/Ductile Iron |
| Size: |
1/2" to 12" |
| Pressure: |
150lb/Pn16 |
| Ending Type: |
Flanged End |
| Structure: |
Through Way Globe Valve |
| Sealing Form: |
Gland Packings Globe Valve |
| Stem Thread Position: |
Outside Screw Stem Globe Valve |
| Standard: |
ANSI |
| Application: |
Cast Iron Globe Valve |
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
We welcome any potential customer to contact us for more information. We hope, with our technical knowledge and professional experience, our company will become one of your best reliable business partners in China.
