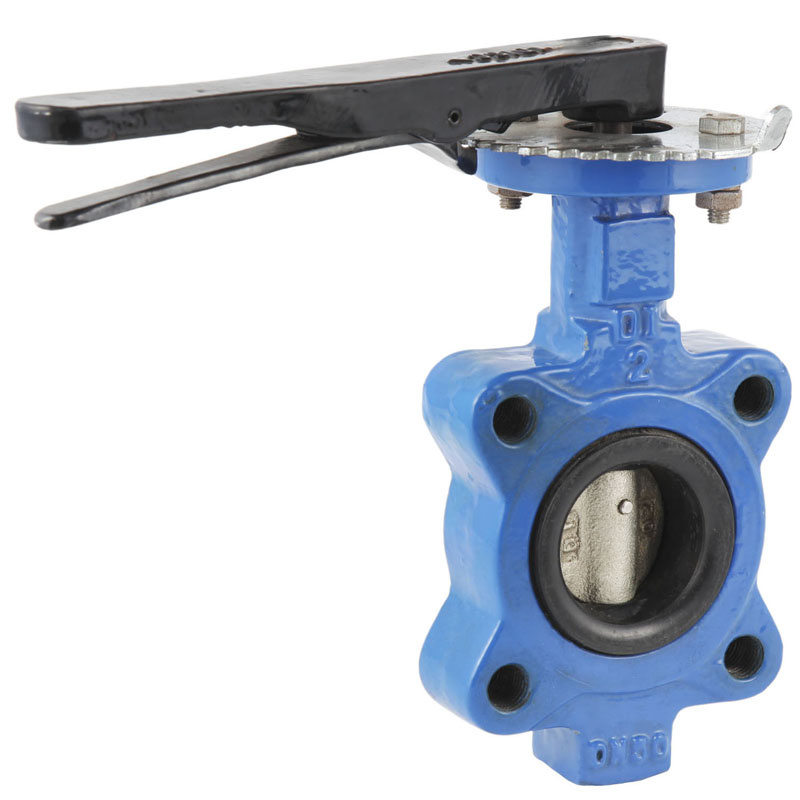

Cast Iron/Ductile Iron Soft Seat Lug Butterfly Valve
| Price: |
US $ 10-1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
Cast Iron/ductile iron Lugged Butterfly Valves, lug butterfly valveStandard compliance:1) Design and manufacture: API609, ANSI B16.10
2) Test and inspection: API 598
3) Face to face dimensions: BS EN 558-1
4) Install between flanges: ANSI 16.10 CLASS 125/150, DIN2501 PN10/16, BS4504 PN10/16
Specifications:1) Size: DN50 to DN600
2) Flange end: DIN PN10/PN16, ANSI 125LB/150LB,JIS 16K
3) Type: Lugged type, wafer type and flanged type, central line, NBR/EPDM/VITON/PTFE Seat
4) Material: CAST IRON, DUCTILE IRON, CF8, CF8M
5) Operation: Lever, gear, pneumatic or electric actuator
Standard materials of parts| Body | Grey iron, Ductile iron, Cast steel, Stainless steel |
| Disc | Ductile iron, Aluminum bronze, Stainless steel |
| Stem | Stainless steel |
| Bushing | Lubricated bronze, PTFE |
| Seat | BUNA, EPDM, Neoprene, PTFE, NR, NBR, Hypalon, VITON |
| Pin | Stainless steel |
| O-ring | BUNA, EPDM |
Dimensions (in mm & inch) and weight| Size | A | B | C | L | E | F | kgs |
| mm | inch |
|
|
|
|
|
|
|
| 50 | 2" | 161 | 80 | 42 | 32 | 57.15 | 12.6 | 2.5 |
| 65 | 2.1/2" | 175 | 89 | 44.7 | 32 | 57.15 | 12.6 | 3.2 |
| 80 | 3" | 181 | 95 | 45.2 | 32 | 57.15 | 12.6 | 3.6 |
| 100 | 4" | 200 | 114 | 52.1 | 32 | 69.85 | 15.7 | 4.9 |
| 125 | 5" | 213 | 127 | 54.4 | 32 | 69.85 | 18.92 | 7 |
| 150 | 6" | 226 | 139 | 55.8 | 32 | 69.85 | 18.92 | 7.8 |
| 200 | 8" | 260 | 175 | 60.6 | 45 | 88.9 | 22.1 | 13.2 |
| 250 | 10" | 292 | 203 | 65.6 | 45 | 88.9 | 28.45 | 19.2 |
| 300 | 12" | 337 | 242 | 76.9 | 45 | 107.95 | 31.6 | 32.5 |
| 350 | 14" | 368 | 267 | 76.9 | 45 | 107.95 | 31.6 | 41.3 |
| 400 | 16" | 400 | 298 | 86.5 | 51.2 | 158.75 | 33.15 | 61 |
| 450 | 18" | 422 | 318 | 105.6 | 51.2 | 158.75 | 38 | 79 |
| 500 | 20" | 480 | 349 | 131.8 | 64.2 | 185.75 | 41.15 | 128 |
| 600 | 24" | 562 | 440 | 152 | 70.2 | 215.9 | 50.65 | 188 |
| 700 | 28" | 624 | 520 | 163 | 72 | 254 | 55 | 284 |
| 800 | 32" | 672 | 591 | 188 | 82 | 254 | 55 | 713 |
| Prod Model: |
CI/DI LUG BUTTERFLY VALV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn50 to Dn600 |
| Material: |
Cast Iron,Ductile Iron,Stainless Steel |
| Seat Material: |
EPDM,PTFE,Viton,NBR |
| Flange: |
ANSI,Bs,JIS,DIN |
| Connection Form: |
Lug Support |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Work Pressure: |
Low Pressure (',Pn<1.6mpa) |
| Working Temperature: |
Medium Temperature (',120??C
|
| Material Of Seal Surface: |
Soft Sealed |
| Application: |
Industrial Usage |
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.
All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.
Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
We welcome any potential customer to contact us for more information. We hope, with our technical knowledge and professional experience, our company will become one of your best reliable business partners in China.
