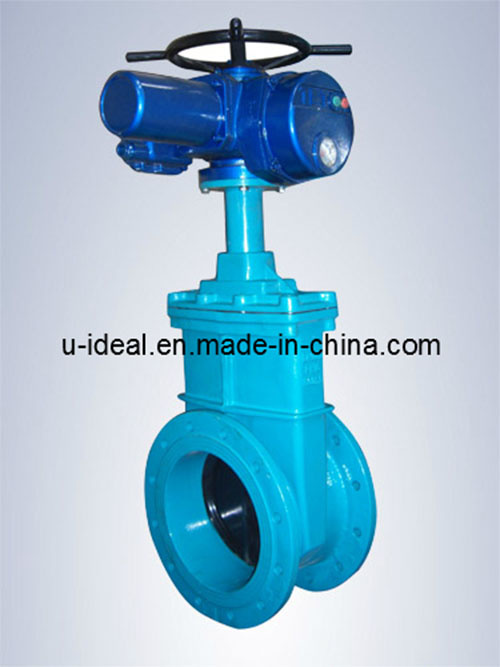

Cast Iron Electric Gate Valve
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description
U ideal valves
Type: Butterfly valves, Gate valves, Check valves, Global valves, Y strainer, Level gauge, Flow meter
Series gate valve(Z44T01)
Size: DN40-DN600
Design standard: GB/T 12232-2005 DIN3352, EN593, MSS SP-67
Pressure standard: GB/T 13927-1992, API598
Face to face: DIN3202 F4, F5, BS5155
Flange standard: DIN2532, DIN2533
Body: CI/DI/WCB/ALB/CF8/CF8M
Disc: DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem: SS416/SS304/SS431/17-4pH
Seat: NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM/PTFE
Suitable temperature: -10~90
Main performance specification
Nominal pressure(MPa) |
Body testing
(MPa) |
Seal testing
(MPa) |
Working temperaute
(ºC) |
Appropriate media |
1.0
1.6 |
1.5
2.4 |
1.1
1.8 |
Rubber≤100ºC
Y/H≤425ºC |
paper pulp,dirty water,coal slurry,ashes,compornds of water and slag. |
Materials of main parts
Body,cover |
Gate |
Stem |
Seal surface |
stainless steel,carbon steel,cast iron |
stainless steel |
stainless steel |
Rubber,PTFE,stainless steel,hard alloy |
Nominal diameters and coupling sizes
Nominal pressure
MPa |
Nominal diameter
DN |
L
ength |
Flange diameter Bolt |
Central round diameter |
Coupled protruding part diameter |
H |
N-M |
DO |
Nominal pressure
MPa |
Nominal diameter
DN |
L
ength |
Flange diameter Bolt |
Central round diameter |
Coupled protruding part diameter |
H |
N-M |
DO |
1.0 |
50 |
50 |
160 |
125 |
100 |
285 |
4-M16 |
180 |
|
|
|
|
|
|
|
|
|
| Prod Model: |
XJ-L206 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Dn40-Dn600 |
| Design Standard: |
GB/T 12232-2005 DIN3352, En593, Mss Sp-67 |
| Pressure Standard: |
GB/T 13927-1992, API598 |
| Face To Face: |
DIN3202 F4, F5, BS5155 |
| Flange Standard: |
DIN2532, DIN2533 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
