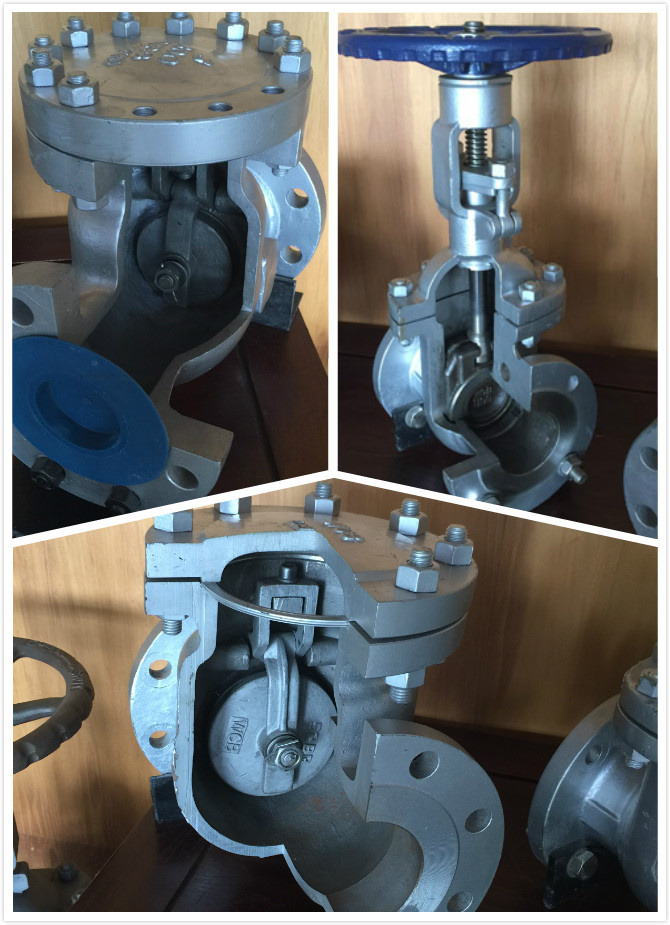

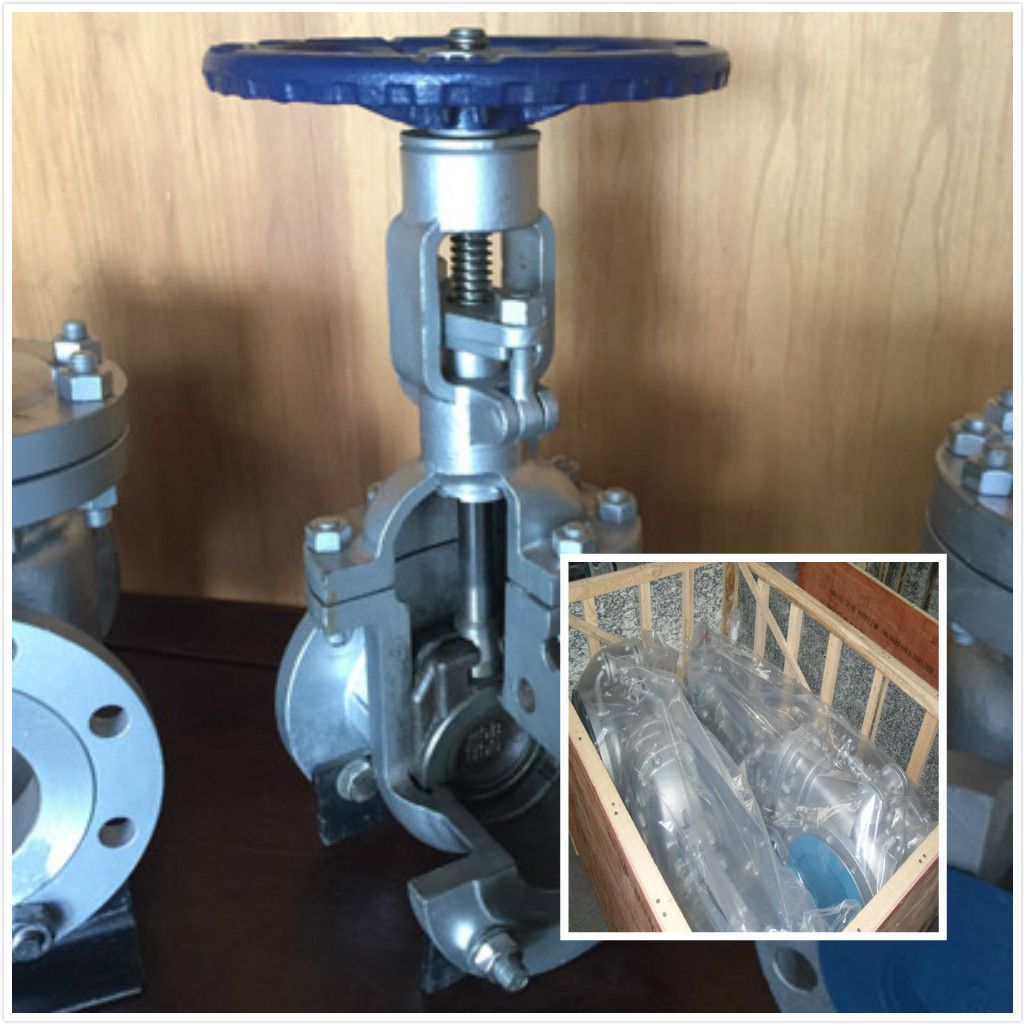

Flange or BW Ends Cast & Forged Stainless Steel Globe Valve
Features & Specifications:
1. Design & Manufacture of Globe Valve: ANSI B16.34, BS 1873
2. OS&Y Construction, Bolted Bonnet Globe Valve
3. Full Port Or Reduced Bore
4. Size Range of Globe Valve: 2" to 48"N. B.
5. Pressure Ratings: ANSI 150, 300, 600, 900
6. End Connections of Globe Valve: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections
7. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials of Globe Valve are available to suit service conditions
Actuations: Manual, Electric, Hydrau-Pneumatic Actuator
8. To MR 0175 and MR 103 upon Request
DESGN & MFT. | BS 1873/API602&600 | ENDS CONNECTION | FLG. R.F |
| PRE-TEP. RATING | ASME B16.34 | INSPECT & TEST | API 598 |
| F-F DIMENSION | ANSI B16.10 | END CONNECTION | ANSI B16.5 |
| MARKING | MSS SP-25 | FIRE SAFE DESIGN | -- |
| PAITING | TBA | SPE. REQUIREMENTS | N.A
|
We belong to Wuhan Hande Valve & Instrument Co., Ltd branch of the company. It is located in Wuhan, Hubei Province, China. All the names in our certificates are our head quarter which is Wuhan Hande Valve & Instrument Co., Ltd. Our company is chagring of international markets and business.
SHENHAO VALVE Co., Ltd. Has been developed into a large-scale hi-tech enterprise integrating research, development, production and distribution through over twenty years of operation.
We are located in Oubei Town, Zhejiang Province, China, which is typically known as the "Pump Valve Town of China". Integrating with design & development, manufacturing and marketing, SHENHAO Valve Co., Ltd. is Chinese leading Valve Manufacturer, Supplier & Exporter. It has more than 260 staffs, of which 50 are professional technicians. SHENHAO has two main manufacturing bases which covers an land area of 20000 m2 with building area of 12000 m2. SHENHAO is the member unit of China Valve Association as well as China Gas Association, member unit of first class supplying network of CNPC and member unit of fittings supplying network of State Power Corporation.
We hold the principle of "mutual benefit and win-win result" to cooperate with importers. We have exported valves to Spain, Italy, Pakaistan, Turkey and India. Our products are famous of its good quality and favorable price.
We shall try our best to satisfied all the requirements from our customers. We try to do "Zero Explain". Fortunately, we have done it succesfully. Choose us to be one of your suppliers, which your correct choice!
We are looking forward to work with you!
