Test pressure (JIS B 2003)
Shell (water) Seat (water) Seat (air)
1.5 MPa 1.1 MPa 0.6 MPa
DN range: 40mm-350mm
Weight range: 15-510Kg

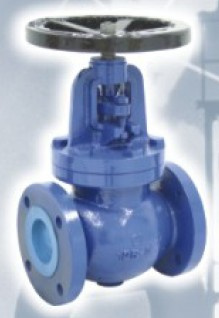

Material for globe valve:
1, Cast iron
2, Ductile iron
Standard for globe valve:
JIS, ANSI, BS, API
|
No |
Part name |
materials |
|
1 |
body |
FC200 |
|
2 |
bonnet |
FC200 |
|
3 |
disc |
FC200 |
|
4 |
stem |
13%Cr |
|
5 |
Body seat |
CAC406 |
|
6 |
disc seat |
CAC406 |
|
7 |
Set bolt |
SS400 |
|
8 |
Disc nut |
SS400 |
|
9 |
gasket |
Grafoil +steel |
|
10 |
Bonnet nut |
G4501-2H |
|
11 |
Bonnet bolt |
SNB7 |
|
12 |
backseat |
CAC406 |
|
13 |
Gland packing |
graphite |
|
14 |
Gland nut |
G4501-2H |
|
15 |
Gland plate |
FC200 |
|
16 |
Set bolt |
SS400 |
|
17 |
Gland bolt |
SNB7 |
|
18 |
Stem nut |
CAC406 |
|
19 |
washer |
SS400 |
|
20 |
Hand wheel nut |
SS400 |
|
21 |
Hand wheel |
FCD450 |
