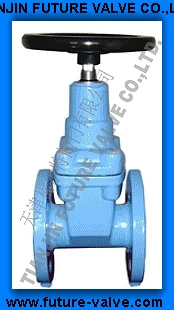

Cast Iron Non-Rising Stem Gate Valves (Z45X-16)

Cast Iron Non-Rising Stem Gate Valves (Z45X-16)
Price: US $ 25/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T
DIN3352 F4 non-rising stem resilient seated gate valve

Delivery & Packaging
Delivery Detail: General within 30 days or according to the order quantity.
Packaging Detail: Plywood case. (each PC into one bubble plastic bag, several PCS into one Plywood case).

Cast Iron Non-Rising Stem Gate Valves (Z45X-16)

Specifications
1. Suitable media: Water.
2. Flange: DIN2501/EN1092-2 PN10/16/25.
3. Nominal diameter: DN40~DN600 (1 1/2"~24").
4. Tightness check: API 598/ISO 5208/EN12226-1.
5. Working pressure: PN10/PN16/PN25 or 10Bar/16Bar/25Bar.
6. Operator: Cap top, hand wheel, Gear box, electric actuator, etc.
7. Working temperature: -20 to 120. (EPDM: -20 to 120, NBR: -10 to 80).
8. Face-to-face conform to DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series14.

Main parts materials
A) Seat: EPDM/NBR.
B) Gland follower: Brass/ductile iron.
C) Bolt and nut: Stainless steel, steel with zinc.
D) Stem: Stainless steel, brass, bronze, steel with zinc.
E) Hand-wheel: Ductile iron/ malleable Iron/carbon steel.
F) Body/Bonnet/Disc: Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450.
Prod Model: Z45X-16
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Material: Cast Iron
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Water Industrial Usage
Tianjin Future Valve Co., Ltd. is specialized in research, development, production and sale of butterfly valve, check valve, gate valve for years. With professional staff, scientific management system, strong production capacity, strict quality control, on-time delivery, quick response service and individual approach to every customer, we have confidence that we could establish long-term, win-win partnership with you!
