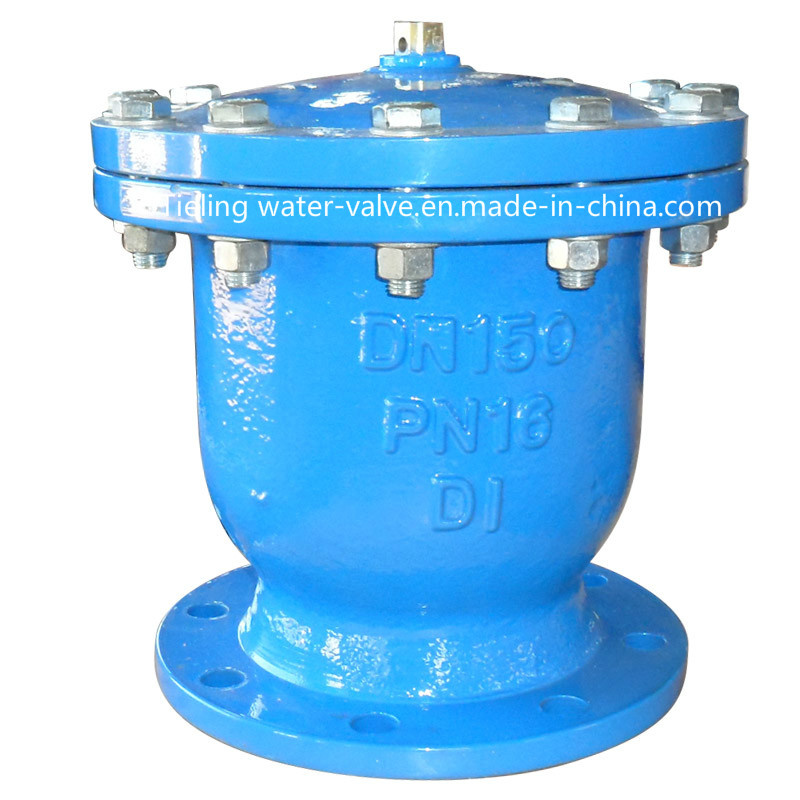

Cast Iron Single Orifice Air Valve
| Price: |
US $ 267/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Air Release Valve description
This valve is only used for small air releasing in supplying water and without intaking or releasing large amount of air. The main pipeline is DN100-DB350mm
| Single Orifice Air Release Valve |
| Suitable medium: | water\sea water | | Main material: | grey cast iron,ductile cast
iron,alloy cast iron,carbon steel | | Suitable temprature: | ≤80 | | Nominal pressure: | PN2.5-25bar | | Nominal diameter: | DN25-DN200mm | | Flange dimension: | BS4504 ISO2531,ISO7005
and other standards conforming to the requirements |
|
|
MATERIALS OF MAIN PARTS
Name of parts
|
Material of parts
|
Body, gate
|
Cast iron/ductile iron/carbon steel
|
Cover
|
Steel
|
Float
|
Stainless steel
|
Sealing ring
|
Rubber
|
|
|
[Main size, connection size and weight]
| | DN(mm) | Size(mm) | | H | D0 | D | D1 | z-Φd | | 25 | 240 | 185 | 115 | 85 | 4-14 | | 50 | 250 | 210 | 160 | 125 | 4-14 | | 80 | 335 | 250 | 195 | 160 | 4-18 | | 100 | 335 | 250 | 215 | 180 | 8-18 | | 150 | 435 | 320 | 280 | 240 | 8-23 | | 200 | 475 | 380 | 335 | 295 | 8-23 |
|
|
| Prod Model: |
P1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Small Air Releasing In Supplying: |
Without Intaking or Releasing Large Amount of Air |
| Connection Form: |
Flange |
| Structure: |
Floating Ball Valve |
| Application: |
Water Industrial Usage |
| Material: |
Cast Iron |
| Nominal Pressure: |
Pn10 |
Tieling Water Valve Co., Ltd. is one of the key enterprises after the former Tieling Valve Works was reformed. It is the largest low pressure big diameter valve, penstock manufacturing base. It has a history of more than 70 years, it is named as advanced new and high-tech enterprise.
The registered capital is 65 million. We have 180 staff which include 2 senior professional title technicians; 15 middle professional title technicians; 40% of the staff graduated from the college. Our company occupies an area of 18558 m2 and a building area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machine, planning machine, universal tool grinding machine, plate bending area of 7800 m2. We have 4M, 2.5M, 1.25M vertical lathes, T111 boring machine, TP*6111B/2 horizontal boring and milling machine, TP*6213 stand boring and milling machine, crane, fork truck, Z3080*25, Z30100*31 large radial drilling machine, plate shearing machine, cutting machinerolls. There are more than 80 machining equipments and cranes of 32/5 T, 20T and 5T. We can produce gray cast iron, ductile iron, low alloy iron valves, steel penstock, cleaning machine, different kind of wind gates, strainers, and pipe fittings and valve actuators. The annual capacity (production value) is RMB 50 million.
The main products: Butterfly valve, gate valve, check valves, air release valve, rotating strainer, comb type cleaning machine, grating, steel penstock, cool and hot isolating gate, guarding gate, regulating shrinkage hole, inserting gate; The suitable medium: Clean water, sewage water, sea water, air, high temperature stove air, gas, steam and different acid and alkali liquid; Suitable temperature: -40º C to 600º C; Suitable pressure: 0.01MPa~2.5MPa; Nominal diameter: DN50-DN3000, actuating methods: Manual, motor, pneumatic, hydraulic, motor& hydraulic. According to the customer' S requirements we can design and manufacture the products conforming to GB, JB, ISO, DIN, BS, API, ANSI. The products are widely used in water power plant, thermal power plant, water plant(city water supplying and distributing), sewage treatment plant, gas, airline, metallic, petroleum and chemical, mine, water power.
Our products have been applied in many projects such as: Beijingyanshang Petroleum &Chemical, Yuanbaoshan Power Plant, Tangshansanyou Thermal Power plant Co., Ltd., Fuxin Power Plant, Anhuipingwei Power Plant, Guodian Puyang Thermal Power Plant Co., Ltd., Jilin Songyuan Oil Refining Plant, Jinxi Petroleum & Chemical Co., Ltd., Jinzhou Power Plant, Guangdong Liede Water Plant. Our company has the right of importing&exporting, some of the products have been exported to USA, Canada, England, Turkey, Spain, Pakistan, Iran, Iraq, Singapore, Thailand, Malaysia, Cambodia, Syria. South Africa, Nigeria, Egypt, Tanzania and other countries.
We have gained the belief and good evaluation from the foreign and domestic customers for our Good product quality and perfect after sale service.
Sincerely welcome the domestic and foreign clients to our company for visiting and negotiation. We will provide you with best products and perfect service.
Our quality policy: Customer is the center, pursuit excellence; Quality first, credibility supreme.
