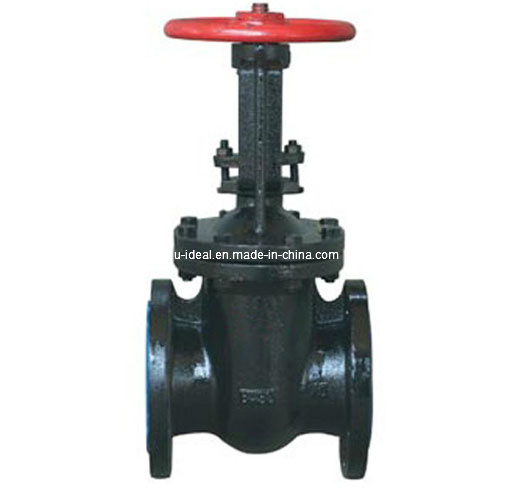

Cast Iron Type Gate Valve
| Price: |
US $ 60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Description
U ideal valves
Type: Butterfly valves, Gate valves, Check valves, Global valves, Y strainer, Level gauge, Flow meter
Series gate valve(Z44T01)
Size: DN40-DN600
Design standard: GB/T 12232-2005 DIN3352, EN593, MSS SP-67
Pressure standard: GB/T 13927-1992, API598
Face to face: DIN3202 F4, F5, BS5155
Flange standard: DIN2532, DIN2533
Body: CI/DI/WCB/ALB/CF8/CF8M
Disc: DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem: SS416/SS304/SS431/17-4pH
Seat: NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM/PTFE
Suitable temperature: -10~90
NO | PART NAME | METERIAL |
| 1 | BODY | GRAY IRON/DUCTILE IRON |
| 2 | DISC | GRAY IRON/DUCTILE IRON with EPDM/BUNA |
| 3 | DISC NUT | GRAY IRON/DUCTILE IRON |
| 4 | NUT | Q235A |
| 5 | BONNET | GRAY IRON/DUCTILE IRON |
| 6 | STEM | Q235A |
| 7 | SEAL RING | NBR/EPDM |
| 8 | NUT | BRASS |
| 9 | HAND WHEEL | DI/C.S. |
| 10 | BOLT | Q235A |
| 11 | SEAL RING | NBR/EPDM |
| 12 | LOCATING RING | Q235A |
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| 2" | 2.5" | 3" | 4" | 5" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" |
| L | 150 | 170 | 180 | 190 | 200 | 210 | 230 | 250 | 270 | 290 | 310 | 330 | 350 |
| D | 165 | 185 | 200 | 2200 | 250 | 285 | 340 | 405 | 460 | 505/520 | 565/580 | 615/640 | 670/715 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 460/470 | 515/525 | 565/585 | 620/650 |
T
| Prod Model: |
Z44T 01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sizes: |
Dn40-Dn600 |
| Design Standard: |
GB/T 12232-2005 DIN3352, En593, Mss Sp-67 |
| Pressure Standard: |
GB/T 13927-1992, API598 |
| Face To Face: |
DIN3202 F4, F5, BS5155 |
| Flange Standard: |
DIN2532, DIN2533 |
| Material: |
Cast Iron |
| Connection Form: |
Flange |
| Seal Surface: |
Wedge Gate Valve |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Application: |
Household Usage |
