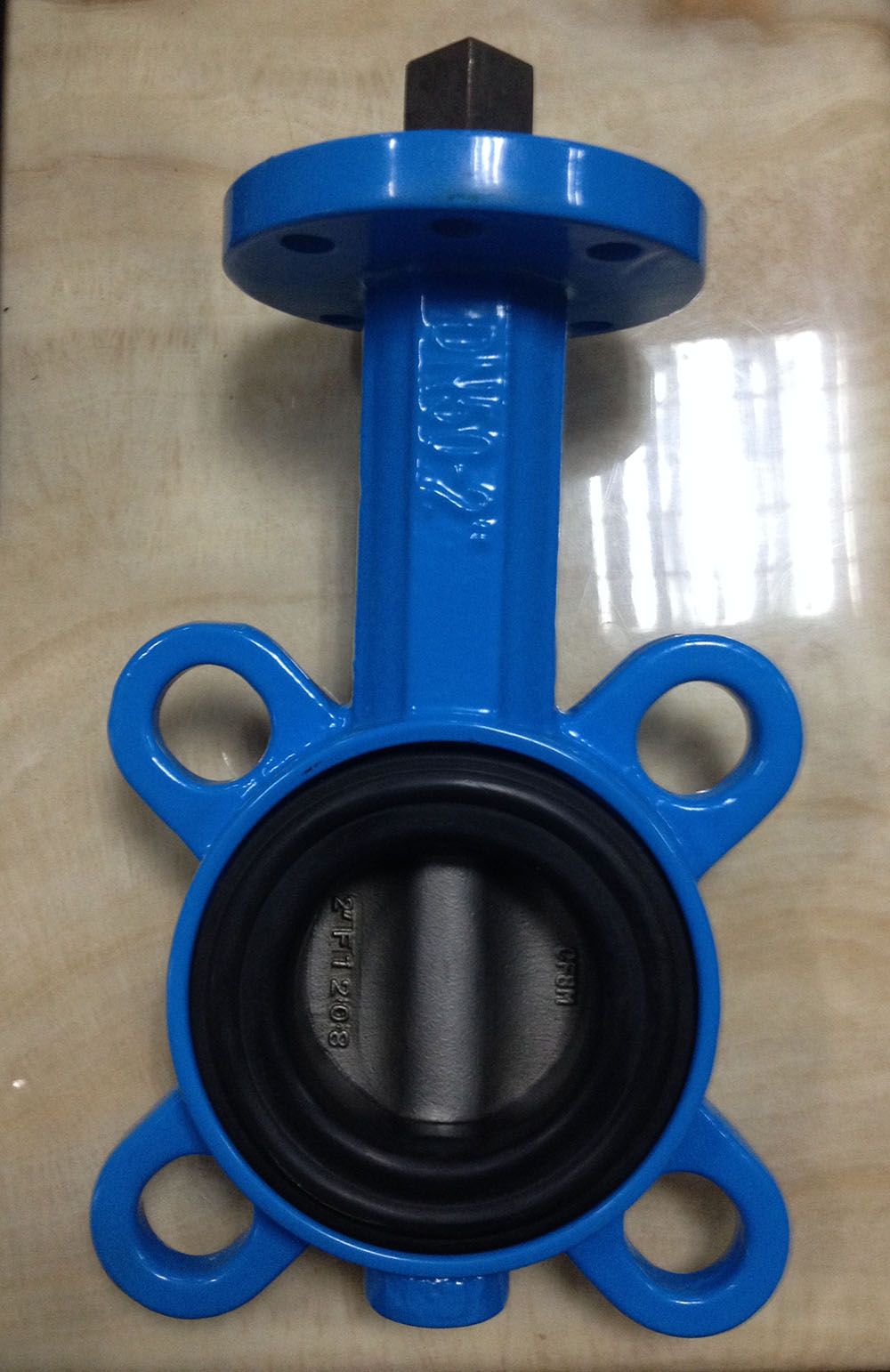

Cast Steel Butterfly Valve/ WCB Butterfly Valve
Features
1. Voltage: 24VAC, 110VAC, 220VAC, 380VAC, 24VDC
2. Connection Type: Wafer, Butt-weld, Flanged
3. Sealing: NBR, PTFE, EPDM
Specifications
1). Nominal Diameter: DN50-600
2). Pressure Range: 0-1.6MPa
3). Medium Temp.: -79°C~+180°C (it depends on sealing material)
4). Valve Body Material: Gray cast iron, ductile cast iron, cast steel, stainless steel
5). Valve Disc Material: Ductile cast iron, cast steel, stainless steel, nickel alloy
6). Seat: NBR, PTFE, EPDM, FPM, PFA, F46, UHMWPE ect.
7). Flanged Connection: DIN250-PN10/16-ANSI 150LB
8). Dimension: GB/T 12221 J1 Series
ISO 5752 Short Series 20
BS 5155 Water Short/Medium
DIN 3202 Part 3 Series K1
9). Top Flange: ISO 5211
10). Operation: Handle, Worm wheel, Electrical, Pneumatic, Hydraulic Actuator, Electro-hydraulic Linkage
11). Feature: Double bubble and zero leakage
12). Leakage Level: RPTEA EA 12266-2 (Zero Leak)
13). Applicable Medium: Drinking water, sewage, high-purity water, sea water, air, etc.
Contact
Thanks for your visiting.
If you have any questions about our products or company, please do not hesitate to contact us.
Contact Person: Cathy Zou
| Brand: | KT/OEM |
| Applicable Media: | Water, Oil, Gas, Nitric Acid, Acetic Acid |
| Normal Pressure: | 0-1.0MPa |
| Strength Testing Pressure: | PT 2.4,3.8,6.0,9.6Mpa |
| Seat Testing Pressure(Low Pressure): | 0.6Mpa |
| Applicable Temp: | -20°C-180°C |
| Certification: | CE/API/DNV/FDA/ISO9001-2008 |
| Sample Testing: | One Sample for free( Under $10),Freight Collect |
| Packing: | Plastic Bag, Carton & Plywood Case/According to customers' requirement. |
| Payment: | T/T, L/C, D/P, Western Union, Paypal |
| Port: | NINGBO/SHANGHAI, Customers' Request |
| Delivery Time: | Within 35days after receiving T/T deposit Payment |
| Term of Delivery: | FOB/CNF/CIF, Customers' Request |
Kangtuo International Trading Co., Ltd is not only a trading company but a combination of four factories whose products are complementary to each other. Konte deals with Pneumatic Actuator, Electric Actuator (Rotary and Multi-Turn), Ball Valve (Industrial and Sanitary), Butterfly Valve (Industrial and Sanitary), Pneumatic Angle Piston Valve, Diaphragm Valve, Gate Valve, Globe Valve, Check Valve, etc.
Konte makes full use of resources from the four factories, namely, Kangsaite, Homin, Yuanyu and Lianggong and has their technical, quality-control and price support. Established in 1978, Lianggong Valve Co., Ltd. Covers an area of 15000 square meters and produces pressure seat gate valve, globe valve, ball valve, control valves, butterfly valves, check valves, etc. Kangsaite Valve Co., Ltd. Specializes in pneumatic actuator, electric actuator, angle piston valve, diaphragm valve, etc. Yuanyu Machinery Co., Ltd. is professional manufacturer of high-precision sanitary valves & fittings and fluid equipment. Products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industry areas. Homin Valve Co., Ltd. Covers an area of 16650 square meters and produces specially metal seated ball valves, floating ball valves, trunnion mounted ball valves and eccentric segmental ball valves which are widely applied to most severe and harsh conditions, such as high-temperature (up to 816º C), high-pressure (up to 15000psi), low-temperature(down to -196º º C), abrasive particulates (catalyst in mine and petro-chemical industry, PTO process, coal dusts and ashes).
With advanced management system and complete quality assurance system, we have got certificates such as CE, ISO, TS, FDA, API, DNV, etc.
We aim at providing one-stop service and offering professional guidance for clients all over the world. With the 4 factories as backup, we believe we will be your good choice for importing, selecting and assembling suitable valves for project, equipment, tender, etc.
