Cast steel ball valve and Forged steel Ball Valves,

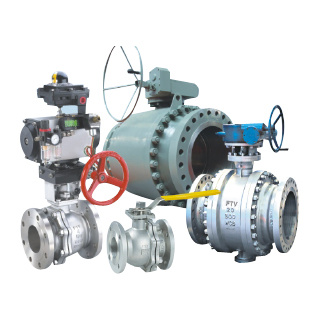

Flanged ball valve, floating ball valve, trunnion ball valveStandard compliance:1) Design and manufacture: API6D, API608, BS5351, ANSI B16.34
2) Test and inspection: API6D, API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Fire safe: API607, API6FA
7) Other standards (DIN, BS, JIS) is also available upon request.
Specifications:1) Size: 1/2" to 48"
2) Class: 150LB to 2500LB
3) Type: Floating ball and trunnion mounted, full bore or reduced bore, soft seated or metal seated, top entry or side entry, one-piece/two-piece/three-piece, anti-blow out stem, antistatic design
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, LF2, A105, F304, F316, F304L, F316L, F11, F22, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Lever, gear or bare stem with ISO mounting pad
Cast Steel Ball Valves - Floating Ball Type Class 150 / 300 / 6002-PC, FB or RB, Blowout-proof stem, Fire-safe, Anti-static.
Design and manufacture:
API 6D, API 608
ANSI B16.34 or BS5351
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10
End flange dimensions: ANSI B16.5
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Size: 1/2" - 12"
Material: WCB, LCB,CF8, CF8M, CF3 and CF3M etc.Materials of body/bonnet and trimBody/bonnet | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
Ball | SS304/SS316/S304L/SS316L |
Seat | PTFE, NYLON, METAL TO METAL |
Type of operation: hand wheel, gear, electric or pneumatic actuator etc.
Standard materials of partsNo. | Parts | Materials |
1 | R-Body | ASTM A216 WCB |
2 | Bonnet bolt | ASTM A193 B7 |
3 | Bonnet nut | ASTM A194 2H |
4 | Gasket | PTFE |
5 | L-body | ASTM A216 WCB |
6 | Ball | SS304 |
7 | Seat ring | PTFE |
8 | Stem | ASTM A182 F6 |
9 | Stem seat | PTFE |
10 | Stem packing | PTFE |
11 | Gland flange | ASTM A216 WCB |
12 | Lever | Cast Steel |
13 | Small ball | SS304 |
14 | Small spring | SS304 |
Dimensions (in mm & inch) and weight
Class 150DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 350 |
NPS | 1/2 | 3/4 | 1 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 |
L(RF) | 108 | 117 | 127 | 165 | 178 | 191 | 203 | 229 | 394 | 457 | 533 | 610 |
L1(BW) | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 |
L2(RTJ) | 119 | 129.7 | 139.7 | 178 | 191 | 203 | 216 | 241 | 406 | 470 | 546 | 622 |
H | 59 | 63 | 75 | 95 | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 622 |
Do (W) | 130 | 130 | 160 | 230 | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 |
RF (Kgs) | 2.3 | 3 | 4.5 | 7 | 15 | 20 | 25 | 40 | 97 | 160 | 240 | 390 |
BW (Kgs) | 2 | 2.5 | 3.8 | 5.8 | 12 | 17 | 21 | 36 | 92.8 | 154 | 227 | 365 |
Class 300DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
NPS | 1/2 | 3/4 | 1 | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 |
L(RF) | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 403 | 502 |
L1(BW) | 140 | 152 | 165 | 190 | 216 | 241 | 283 | 305 | 457 | 521 |
L2(RTJ) | 151 | 164.7 | 177.7 | 202.7 | 232 | 257 | 298 | 321 | 419 | 518 |
H | 59 | 63 | 75 | 107 | 153 | 165 | 195 | 213 | 272 | 342 |
Do (W) | 130 | 130 | 160 | 230 | 400 | 400 | 600 | 850 | 1100 | 1500 |
RF (Kgs) | 2.5 | 3.5 | 5.5 | 10.5 | 20 | 25 | 31 | 52 | 118 | 200 |
BW (Kgs) | 2.1 | 3 | 4.8 | 8.7 | 17 | 22 | 28 | 48 | 105 | 185 |
Class 600DN | 15 | 20 | 25 | 40 | 50 | 65 | 80 |
NPS | 1/2 | 3/4 | 1 | 1.1/2 | 2 | 2.1/2 | 3 |
L(RF) | 165 | 190 | 216 | 241 | 292 | 330 | 356 |
L1(BW) | 165 | 190 | 216 | 241 | 292 | 330 | 356 |
L2(RTJ) | 163.4 | 190 | 216 | 241 | 295 | 333 | 359 |
H | 59 | 63 | 75 | 107 | 153 | 165 | 195 |
Do(W) | 130 | 160 | 160 | 230 | 600 | 850 | 1250 |
RF (Kgs) | 7.5 | 10.5 | 14.5 | 18.5 | 38 | 56 | 66 |
BW (Kgs) | 6 | 8.7 | 11 | 14.7 | 31 | 49 | 58 |
Cast Steel Ball Valves - Trunnion Ball Type
Class 150 / 300 / 600 / 900 / 1500 / 2500Design and manufacture: API 6D, API 608 , BS5351
ANSI B16.34
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10
End flange dimensions: 2"~24" to ANSI B16.5
over 26" to MSS SP-44
to B16.47 SERIES A
to B16.47 SERIES B
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Type of operation: lever, gear, electric or pneumatic actuator etc.Materials of body/bonnet and trimBody/bonnet | WCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc. |
Ball | SS304/SS316/S304L/SS316L |
Seat | PTFE, NYLON, METAL TO METAL |
Type of operation: hand wheel, gear, electric or pneumatic actuator etc.
Standard materials of partsNo. | Parts | Materials |
1 | Body | ASTM A216 WCB |
2 | Bonnet bolt | ASTM A193 B7 |
3 | Bonnet nut | ASTM A194 2H |
4 | Gasket | PTFE |
5 | Bonnet | ASTM A216 WCB |
6 | Ball | SS304 |
7 | Seat | ASTM A182 F6 |
8 | Spring | AISI 6150 |
9 | Seat ring | PTFE |
10 | O-ring | VITON |
11 | Stem | A182 F6a |
12 | Stem-beating | Cu-Pb Alloy |
13 | O-ring | VITON |
14 | Gland flange | ASTM A216 WCB |
15 | Stem packing | PTFE or Flexible graphite |
16 | Yoke | ASTM A216 WCB |
17 | Gear operation | Ductile iron |
18 | Small ball | SS304 |
19 | Small spring | SS304 |
20 | Injection fitting | |
21 | Plug | AISI 1025 |
Dimensions (in mm & inch) and weight
Class 150DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
L(RF) | 178 | 191 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1245 |
L1(BW) | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 | 991 | 1143 | 1346 |
L2(RTJ) | 191 | 203 | 216 | 241 | 406 | 470 | 546 | 622 | 699 | 775 | 876 | 927 | 1080 | |
H | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 625 | 720 | 790 | 840 | 1050 | 1150 |
Do (W) | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 |
RF (Kgs) | 15 | 19 | 38 | 65 | 97 | 160 | 240 | 390 | 510 | 750 | 895 | 1190 | 2100 | 3000 |
BW (Kgs) | 13 | 17 | 35 | 55 | 92.8 | 154 | 227 | 365 | 478 | 711 | 868 | 1138 | 2015 | 2900 |
Class 300DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 |
L(RF) | 216 | 241 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 | 1346 |
L1(BW) | 216 | 241 | 283 | 305 | 457 | 521 | 559 | 635 | 762 | 838 | 914 | 991 | 1143 | 1346 |
L2(RTJ) | 232 | 257 | 298 | 321 | 419 | 518 | 584 | 664 | 778 | 854 | 930 | 1010 | 1165 | 1372 |
H | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 625 | 720 | 790 | 840 | 1050 | 1150 |
Do (W) | 400 | 400 | 600 | 850 | 1100 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 |
RF (Kgs) | 18 | 27 | 47 | 80 | 118 | 200 | 365 | 530 | 740 | 1030 | 1320 | 1540 | 2600 | 3900 |
BW (Kgs) | 14 | 22 | 38 | 65 | 105 | 185 | 342 | 503 | 713 | 1000 | 1285 | 1498 | 2540 | 3825 |
Class 600DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L(RF) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
L1(BW) | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
L2(RTJ) | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 |
H | 153 | 165 | 195 | 213 | 272 | 342 | 495 | 580 | 630 | 725 | 800 | 850 |
Do (W) | 600 | 850 | 1250 | 1300 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 |
RF (Kgs) | 38 | 56 | 66 | 122 | 217 | 350 | 660 | 820 | 830 | 1160 | 1420 | 1650 |
BW (Kgs) | 31 | 51 | 58 | 117 | 200 | 327 | 605 | 790 | 800 | 1030 | 1305 | 1505 |
Class 900DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
L(RF) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 |
L1(BW) | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 |
L2(RTJ) | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1032 | 1133 | 1222 | 1327 |
H | 162 | 195 | 205 | 239 | 290 | 355 | 510 | 595 | 650 | 750 | 835 | 900 |
Do (W) | 600 | 850 | 1250 | 1300 | 1500 | *350 | *350 | *600 | *600 | *800 | *800 | *800 |
RF (Kgs) | 48 | 60 | 78 | 138 | 250 | 375 | 710 | 890 | 910 | 1200 | 1480 | 1760 |
BW (Kgs) | 44.5 | 52.5 | 75.2 | 131 | 232 | 355 | 690 | 827 | 870 | 1100 | 1210 | 1620 |
Class 1500DN | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
NPS | 2 | 2.1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 |
L(RF) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 |
L1(BW) | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 |
L2(RTJ) | 371 | 422 | 473 | 549 | 711 | 842 | 1000.5 | 1146 | 1276 | 1406 |
H | 197 | 220 | 254 | 290 | 355 | 510 | 595 | 655 | 680 | 780 |
Do W) | 600 | *350 | *350 | *600 | *600 | *800 | *800 | *800 | *800 | *800 |
RF (Kgs) | 55 | 80 | 97 | 162 | 290 | 390 | 745 | 935 | 1000 | 1305 |
BW (Kgs) | 51 | 71 | 92.8 | 157.5 | 227 | 335 | 697 | 885 | 915 | 1200 |
* Worm gear or electric actuator operated.
