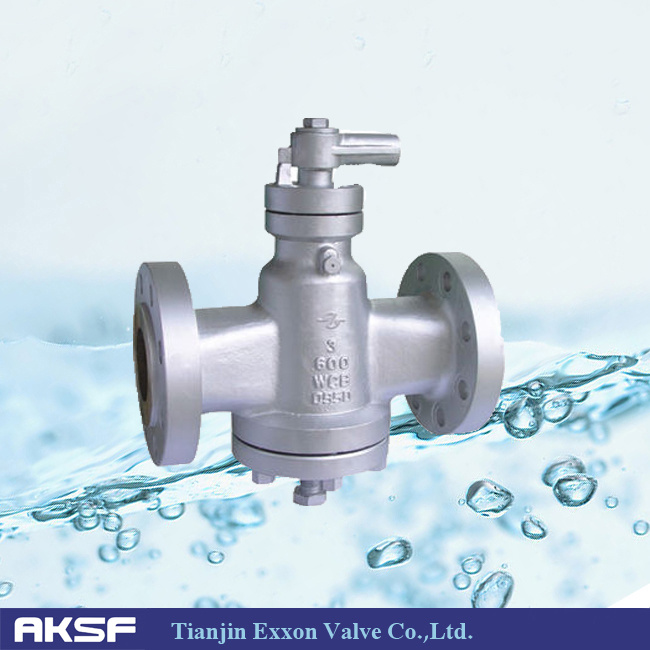

Cast Steel flanged end Plug Valves
Standard compliance:
1) Design and manufacture: API6D, ANSI B16.34, API599
2) Test and inspection: API598, API6D
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Socket weld end: ANSI B16.11
7) Screwed end: ANSI B1.20.1
Specifications:
1) Size: 1/2" to 36"
2) Class: 150LB to 2500LB
3) Type: Lubricated taper plug valve, inverted pressure balance lubricated plug valve(venturi pattern, regular pattern), sleeve type soft sealing plug valve
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, ALLOY 20, CAST IRON etc
5) Operation: Lever, gear
Top entry type, Self-lubricated
Description:
Design and manufacture: ANSI B16.34, API 6D, API 598,
API 6A
Face to face dimensions: ANSI B16.10, API 6A
End flange dimensions: ANSI B16.5, API 6A
Butt-welding ends: ANSI B16.25
Threaded ends: ANSI B2.1, API 5B
Socket welded ends: ANSI B16.11
Pressure test: API 598, API6D
Fire safe test: API607, API6FA, BS6755, ISO 10497
Corrosion resisting: NACE-MR-0175
Size: 1/2" - 18"
Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, ALLOY 20, CAST IRON etc
Tianjin Exxon Valve Co., Ltd. Offers several styles of Rubber Lined Concentric Butterfly Valves, Resilient Seated Gate Valves and Soft Seated Dual Plate Check Valves to meet your requirements. We would like to help you choose the correct valve style according to the process conditions and system needs of the valves.
Our company has a comprehensive computer-aided design systems and sophisticated computer numerically equipment in production, processing and testing. We are strictly according to the international quality system standard ISO9001 for production.
We specialize in soft sealed butterfly valves and gate valves of wafer type, flange type and groove type, which are widely applied in petroleum, chemical, natural gas, food, water supply and other industrial areas.
The valves of EXXON are highly appreciated at home and abroad. Even though there is a fierce competition in the market nowadays, EXXON obtains a steady and efficient development being guided by our manage principle, that is, guided by the science & technology, guaranteed by the quality, adhere to sincerity and target at excellent service...
We persist in the pursuit of excellence, strive to build EXXON brand. Great effort will be made to achieve common progress and development with all of you and creating a better future.
