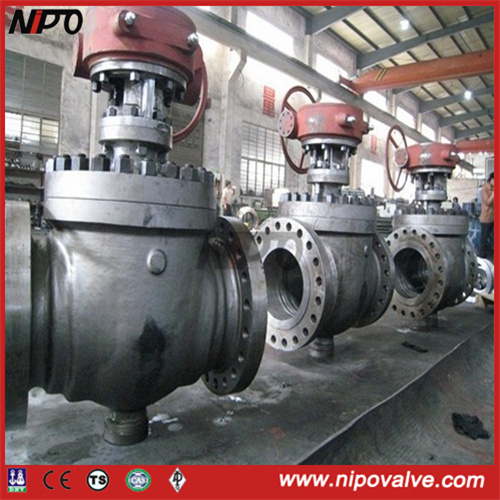

Cast Steel Flanged Top Entry Ball Valve
| Price: |
US $ 10-485/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T |
Cast Steel Top Enrty Trunnion Ball Valve
Features:
The monolithic Cast Steel Body
Flating & Trunnion Mounted Ball, Full&Reduced Bore
Anti-static Device
Blow-out Proof Stem
Doouble Block and Bleed
Fire Safe Design
Emergency Sealant Injector
Specifications:
Design: ASME B16.34/API 6D
Face to Face: ASME B16.10/API 6D
End Flange: ASME B 16.5
BW End: ASME B16.25
Test: API 598
Fire Safe Test: API 607/API6FA
Special: NACE MR-01-75
We welcome all the world customers to contact us for more cooperation.
With our years of technical knowledge and experience,we assure you,
Naibang will be one of your best parters in China.
| NO. | Part | Material |
| 1 | Body | A216-WCB A352-LCB A351-CF8,CF8M,CF3,CF3M,Duplex |
| 2 | Seat Spring | Inconel X-7505 SS304 SS316 |
| 3 | Seat Ring | ASTM A105+ENP A182-F304,F316,F316L,F6,F51 |
| 4 | Seat | PTFE RPTFE PEEK PPL |
| 5 | Ball | ASTM A105+ENP ASTM A182-F6,F304,F316,F316L,F51 |
| 6 | O-ring | NBR Vtion |
| 7 | Thrust Washer | PTFE |
| 8 | Body Gasket | Stainless Steel+PTFE SS316+PTFE |
| 9 | Sliding Bearing | PTFE SS304+Graphite SS316+Graphite |
| 10 | Bonnet | A216-WCB A352-LCB A351-CF8,CF8M,CF3,CF3M,Duplex |
| 11 | Packing | PTFE Graphite |
| 12 | Gland Flange | A216-WCB A3541-CF8 |
| 13 | Key | 1045 A182-F304,F316,F316L,F304L |
| 14 | Stem | A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
| 15 | Yoke | A216-WCB |
| 16 | Nut | ASTM 194-2H,2HM,8,8M |
| 17 | Stud | ASTM 193-B7,B7M,B8,B8M |
| 18 | Vent Valve | 1020+ZN A182-F304,F316,F316L |
| 19 | Lifting Lug | 1020 |
| 20 | Seat Injection | 1020+ZN A182-F304,F316,F316L |
| 21 | Steel Ball | Stainless Steel |
| 22 | Adjusting Ring | 1045+N A102-F304,F316,F316L |
| 23 | Seat Spring | 1045+N A102-F304,F316,F316L |
| 24 | Steel Gasket | 1045+N A102-F304,F316,F316L |
| 25 | Trunnion | A105+ENP A182-F6,F304,F316,F316L,F304L,17-4PH,F51 |
| 26 | Trunnion Gasket | PTFE SS304+Graphite |
| 27 | Adjusting Nut | ASTM A194-2H,8 |
| 28 | Adjusting Stud | A182-F6,F304 |
| 29 | Frain Valve | 1020+ZN A182-F304,F316,F316L |
| Prod Model: |
Q47F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2" to 24" |
| Class: |
150lb to 1500lb |
| Certificates: |
API 6D, CE, ISO9001 |
| Delivery Detail: |
20~45 Days According to The Specific Quantities |
| Application Fields: |
Metallurgy,Light Industrial,Electric Power,Petroch |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Water Industrial Usage |
| Material: |
Carbon Steel |
| Nominal Pressure: |
150lb to 1500lb |
Zhejiang NaiBang Valve Co., Ltd. is a specialized company devoted into manufacture and sales of valves, the company situates in ou-bei town-the center of China's pumps & valves, with ground area 18800m2, machine workshop, assemble workshop and synthetic finished half - finished warehouse. The company possesses 210 precise equipments, the advanced numeral control machines ensure the flexibility and exchangeability of all the product parts. The company flourishes year by year, and its products have been widely used in lines of domestic large PowerStation configuration, dirty water processing, urban construction, petroleum-chemical, oil extraction, metallurgy, chemical fertilizer, paper production and pharmacy, exported to many countries and regions, gains the users' unanimous praise and confidence.
The company has a modernized staffs of tech research and product development, ISO9001 certificated. And now the company has the capability of manufacturing big series of high temperature and hi-gh pressure power station gate valve, ball valve, globe valve, check valve, butterfly valve, with the strength of API valve, Wafer check valve and forged valve, and the wafer check valve mainly cover wafer single disc lift and swing check valves and wafer double disc swing check valves (H77, H76, H74, H72, H71, H46 and H44). Diameter of valves varies from DN15 to DN2000(1/2'-72' ), working pressure varies from PN1.6MPa to 42 MPa(150lb to 2500lb), and working temperature from -196 Celsius degree to +570 Celsius degree; The main body adopts WCB, WC6, WC9, Cr5Mo, 20Crmo, 12Crmov, 15Crmov, CF3m, CF8m. The company possesses full precise casting equipments, integrated physical and chemical gauges, experimentation equipments and test methods, as well CAD design capability, which ensure products always in high quality.
