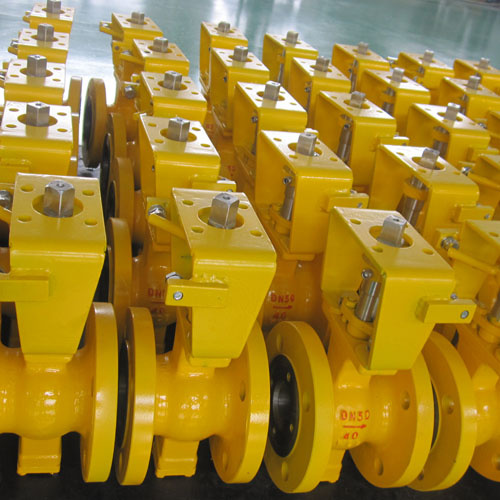

Cast steel flanged V-port ball valve
V-port ball valve is designed to meet the highest industry standards for dynamic performance. V-port ball valves are used in such services as chemical, food processing, hydraulic, oxygen, steam, thermal fluids, vacuum, and so on.
V port ball valve
Body type: QV641
Body size: 1"~12" (25A~300A)
Body rating: ANSI Class150~600, PN1.0 MPa ~PN10 MPa
Fluid temp.: -45~+500 Deg.
Connections: (RF), Flange(RF), Wafer type
Body materials: WCB\CF8\CF8M, etc.
Trim materials: CF8\CF8M, etc.
Disc treatment: Chrome plated or Stellited
Seal ring materials: , 316SS/R. TFE, 316SS
Rangeability: 100: 1~500: 1
Flow characteristics: \ Approximate EQ%\ON-OFF
Leakage: Metal seat: (L Type seat): Rated CV× 0.001%; : Rated CV× 0.05%
Soft seat: ANSI Class VI
Main standards:
1. Design standard: GB/T12237-2000, API6D
2. Face to face: GB/T12221-2000, ASMT 16.10
3. Flanged ends: GB/9113.1-2000, ASMT 16.10
4. Test &inspection: GB/T13927-2000 JB/T9092-1999, API6D
