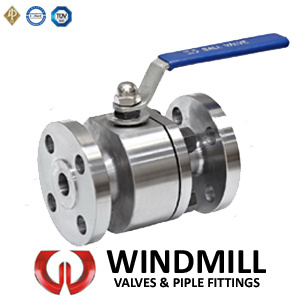

Cast Steel Floating Ball Valve (Q41F)

Cast Steel Floating Ball Valve (Q41F)
Price: US $ 18-693/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Cast steel floating ball valve
Applicable standards:
Design: API 608, ANSI B16.34
Face To Face: API 6D, ASME B16.10
Flange end: ANSI B16.5, ASME B16.47
Fire safe: API 607
Testing and inspection: API598, API6D

Cast steel floating ball valve
Size: 1/2"-8"
Pressure: 150LB-300Llb
Body material: WCB, CF8M, CF8, GR4A, LCB, WC6, WC9, LCC, CF3, CF3M, LF2, LF3, A351 CN7M
Operate: Manual, gear box, electric, neumatic, hydraulic atuators

Design description
Double block and bleed design(DBB)
Double stem sealing. The ball can maintain pressure sealing of pipeline when it is closed or fully opened.
Shorter upper sleeve reducces bearing load and operation torue
Limit device ensures the accurate opening and closing position of the valve
The vall and stem are separated so as to reduce stem load. The stem adopts anti-blow-out design.
The sealing surface is inserted into te metal seat by polymer or plastic
The metalbacked self-lubricating PTFE bearing and PTFE thrust washers
Reduce the opening torque and prolong the service life of the valve. Stem leakage can be prevented through the emergency grease fitting.
Nickel and phosphor treatment to the parts can enhance the anticorrosive performance.
The fireproof design of metal wound gasket compased of stainless steel and graphite can prevent external leakage.
Anti-static design
Floating Type
Full bore/Reduced bore
Bolted cover/welded cover
Turn 90 degree opening or close
Detachable seat PTFE/RPTFE
Applicable temperature: -196-540
Supply Air: 1Bar to 8Bar

Floating ball valve design feature:
Live loaded gland flang
Live loading is designed to provide gland load retention, compensating for expected in-service consolidation of packing. A set of belleville spring washers are used on each gland stud to help exert a continuous compressive force on the gland follower flange and therefore reduce fugitive emissions from the stem packing. ARITA standard belleville-spring washers are protected by a weatherproof cap to keep them free from environmental contamination, resulting in a long stable life.
Prod Model: Q41F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connection Form: Flange
Channel: Straight Through Type
Structure: Floating Ball Valve
Type: Floating Ball Valve
Material: Stainless Steel
Application: Water Industrial Usage
Wenzhou Windmill Valve Co., Ltd., a valve manufacturer, located at China famous Pump&Valve Town--Oubei, Wenzhou. Our factory specialized in all kinds of
industrial valves, consistent conformed to international and national standards, we have gained worldwide market. The past years, 90% of our products offered for Europe, America, Middle East, Southeast Asia.
Product quality and service reliability are essential to the success of our business, we stric tly control every procession such as the purchasing of raw material, the development of innovative designs and the advanced checking method and so on, we consider it is our company's life to give every customer fully satisfaction.
Products range: ball valve, gate valve, check valve, globe valve, ect.
Pressure range: Class150-Class2500, Size range: 1/2"-42"
Temperature: -196 to 649 (-3200F to 12000F)
Operation type: manual, gearbox, chain wheel, pneumatic, electronic, hydraul IC-pneumatic etc.
Connection End: RF, BW, SW, NPT, wafer type, etc.
Materials (casting): WCB, WCC, LCB, LCC, LC1~3, CF8, CF3, CF8M, CF3M, CF8C, CN7M,
CA15, C5, WC5, WC6, WC9, GR4A, etc.
Materials (forging): A105, LF1, LF2, F11, F22, F5, F304, F304L, F316, F316L, F316H, F321,
F347, F51, F60, etc.
According to the different project and different medium, we effectively meet customer's
requirments with RT, UT, MT, PT test standard. The remarkable quality and service are the
WINDMILL person's forever pursue.
