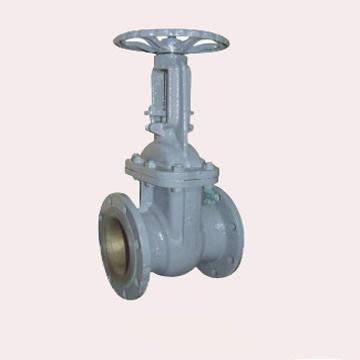

Gate valve generally used to connect or disconnect the piping in the media, it shut down parts(gate)in the vertical plane centerline of the valve channel to give a lift moving. Gate valve can not be used as a regulating the flow of media.
Nominal Pressure: PN1.6 Mpa
Suitable Medium: Water, oil, Steam and Non-corrosive Media
Suitable Temperature: ≤ 425º C
Main Parts Material:
Handwheel: Mellable Steel or Cast Steel
Cover, Body: Carbon Steel
Stem: 2Cr13
Stem Bonnet: Brass or Ductile Iron
Disc Seal: 2Cr13 or Stainless Steel Welding
Connect Dimension: Russian Standard 12815-80
Seal Stardand: D9544-93.
