Cast Steel Gate Valves
| Price: |
Negotiable |
| Trade Terms: |
sea or other delivery mode with clients' request |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |

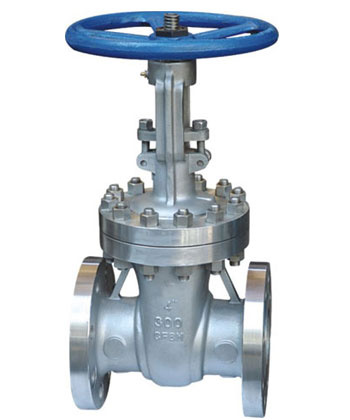

Cast steel gate valves
Size of gate valve: 2"~24"
Pressure of gate valve: 300lb~1500lb
Body materials of gate valve: Carbon steel, stainless steel
Operation of gate valve: Manual, gear, electric, pneumatic
Features of Cast steel gate valves
1. Face to face and end to end dimension: Asme b16.10
2. Flange dimension: Asme b16.5
3. B. W. End to asme b16.25
4. Wall thickness: API 600
5.4"and smaller valves have a one-piece bonnet and yoke design
6" and larger valves have a two-piece bonnet and yoke design.
|
Parts List |
|
No: |
Parts |
Material |
|
1 |
Body |
ASTM A216 Gr.WCB |
|
2 |
Seat ring |
ASTM A105+13Cr |
|
3 |
Disc |
ASTM A105+13Cr |
|
4 |
Stem |
ASTM A182 F6a |
|
5 |
Disc cover |
ASTM A276 410 |
|
6 |
Bonnet bolt |
ASTM A193 Gr.B7 |
|
7 |
Bonnet nut |
ASTM A194 Gr.WCB |
|
8 |
Gasket |
Graphite |
|
9 |
Back seat |
ASTM A276 410 |
|
10 |
Bonnet |
ASTM A216 Gr.WCB |
|
11 |
Packing |
Graphite |
|
12 |
Gland |
ASTM A276 410 |
|
13 |
Gland flange |
ASTM A216 Gr.WCB |
|
14 |
Gland bolt |
ASTM A193 Gr.B7 |
|
15 |
Gland nut |
ASTM A194 Gr.2H |
|
16 |
Pin |
C.S. |
|
17 |
Bearing |
Assem. |
|
18 |
Lubricator |
Assem. |
|
19 |
Stem nut |
Aluminum Bronze |
|
20 |
Handwheel |
Malleable lron |
|
21 |
H.W.lock nut |
C.S. |
|
22 |
Screw |
C.S. |
|
23 |
Retaining nut |
C.S. |
|
24 |
Bolt |
C.S. |
|
25 |
Guide block |
C.S. |
|
Dimensions & Weights |
|
|
Class 900 |
Valve Size |
in. |
2 |
2002-1-2 |
3 |
4 |
6 |
8 |
10 |
|
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
|
L-L1 |
in. |
14.5 |
16.5 |
15 |
18 |
24 |
29 |
33 |
|
(RF-BW) |
mm |
368 |
419 |
381 |
457 |
610 |
737 |
838 |
|
L2 |
in. |
14.62 |
16.62 |
15.12 |
18.12 |
24.12 |
29.12 |
33.12 |
|
(RTJ) |
mm |
371 |
422 |
384 |
460 |
613 |
740 |
841 |
|
H |
in. |
9.44 |
10.25 |
10.25 |
12.63 |
15 |
20.88 |
27.17 |
|
(open) |
mm |
240 |
260 |
260 |
320 |
382 |
530 |
690 |
|
W |
in. |
13.75 |
15.75 |
17.75 |
22.06 |
24 |
24 |
24 |
|
mm |
350 |
400 |
450 |
560 |
610 |
610 |
610 |
|
WT |
in. |
100 |
118 |
131 |
218 |
452 |
710 |
2050 |
|
(Kg) |
mm |
75 |
94 |
105 |
185 |
340 |
630 |
1870 |
|
Class 1500 |
L-L1 |
in. |
14.5 |
16.5 |
18.5 |
21.5 |
27.75 |
32.75 |
- |
|
(RF-BW) |
mm |
368 |
419 |
470 |
546 |
705 |
832 |
|
L2 |
in. |
14.62 |
16.62 |
18.62 |
21.62 |
28 |
33.13 |
- |
|
(RTJ) |
mm |
371 |
422 |
473 |
549 |
711 |
841 |
|
H |
in. |
23.31 |
26 |
27.25 |
35.69 |
40 |
45.06 |
- |
|
(open) |
mm |
592 |
660 |
692 |
907 |
1015 |
1145 |
|
W |
in. |
13.75 |
15.75 |
17.75 |
22.06 |
24 |
24 |
- |
|
mm |
350 |
400 |
450 |
560 |
610 |
610 |
|
WT |
in. |
112 |
141 |
228 |
336 |
822 |
990 |
- |
|
(Kg) |
mm |
84 |
115 |
183 |
277 |
715 |
830 |
|
Class 2500 |
L-L1 |
in. |
17.75 |
20 |
22.75 |
26.5 |
36 |
- |
- |
|
(RF-BW) |
mm |
451 |
508 |
578 |
673 |
914 |
|
L2 |
in. |
17.87 |
20.25 |
23 |
26.88 |
36.5 |
- |
- |
|
(RTJ) |
mm |
454 |
514 |
584 |
683 |
927 |
|
H |
in. |
27.25 |
29.5 |
31.5 |
47.25 |
75 |
- |
- |
|
(open) |
mm |
692 |
750 |
800 |
1200 |
1905 |
|
W |
in. |
15.75 |
19.69 |
24 |
30 |
30 |
- |
- |
|
mm |
400 |
500 |
610 |
760 |
750 |
|
WT |
in. |
182 |
290 |
340 |
820 |
2300 |
- |
- |
|
(Kg) |
mm |
153 |
230 |
272 |
670 |
2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thread Position Of Valve Rod: |
Outside Gate Valve |
| Seal Surface: |
Wedge Gate Valve |
| Material: |
Steel |
Shanghai Teyi valve manufacturing co., ltd for many years has been dedicated to the research and production of fluid process control. Our company is 23, 000 square feet in size with more than 350 employees, and has also been certified of ISO9001, ISO14000, ISO18001, TS, API 6D, CE, etc. As a professional manufacturer of valves and pipe fittings, our company has earned an excellent reputation and becomes a member of Shanghai Chamber of Commerce for Import and Export (SHCCIE) by providing good quality products and excellent service.
Our main products come in various sizes and pressure levels which include gate valve, globe valve, ball valve, butterfly valve, check valve, regulating valve, instrument valve, etc. Our products are manufactured in compliance with GB, JB, API, DIN, JIS, ANSI, NF, BS, etc and they are made of stainless steel, carbon steel, alloy steel as well as other specialized materials. Within China we own more than 200 distribution shops across the entire country, and our products have been exported to Russia, Iran, Indonesia, America, Saudi Arabia, Vietnam and Africa with great recognition.
We have experienced RD teams and refined production equipment in house, and with refined production techniques and inspection facilities, whether it's the procurement of the raw materials, OQC of the final products, reference standards have been widely adopted to ensure the safety and reliability of the products. Our products have been widely used in industry such as petroleum and natural gas, chemical, paper, shipbuilding, metallurgy, environmental protection, power plant, food, pharmaceutical, water, etc.
