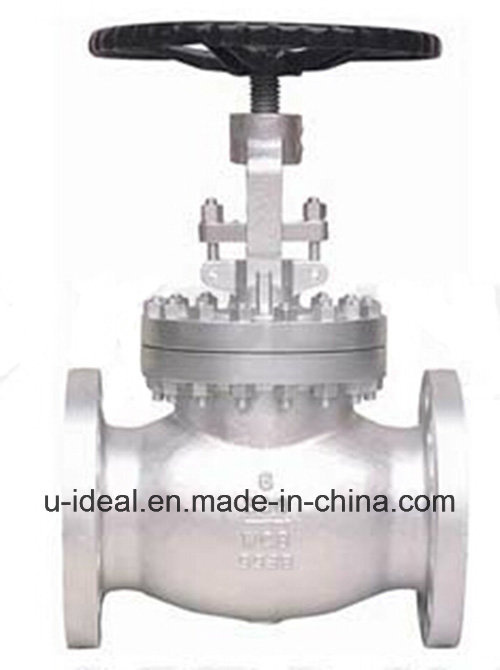

Cast Steel Globe Valve-Globe Valve

Cast Steel Globe Valve-Globe Valve
Price: US $ 10-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T


 Cast Steel Globe Valve
Globe Valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle. Globe valves may be used for either isolation or throttling service, by installing the apporpriate disc: flat-seat disc for moderate throttling, cage for more severe throttling, and parabolic plug for linear flow control.

Globe valves are also classified by the body: regular staight pattern, Y pattern and angle pattern. Their various configuration allow them to be installed in a variety of piping configurations.

Globe valves are also supplied with three basic type of body-bonnet closures: bolted bonnet, welded bonnet and pressure seal bonnet. Bolted bonnet, the seal depends on the body-bonnet bolt preload to maintain sufficient compressive force, bolted bonnet is widely used for valves on various pressure ratings and sizes. Welded bonnet is mainly applied for small-size forged steel gate valves, suitable for applications requiring zero leakage on body-bonnet joint when carrying hazardous system fluids. Pressure seal bonnet is adopted for valves for high pressure service, typically in excess of 15 MPa (2250 psi). The body-bonnet joint seals improves as the internal pressure in the valve increases, compared to other constructions where the increase in internal pressure tends to create leaks in the body-bonnet joint.

Globe valves are supplied with flanged ends, butt weld ends, socket weld ends and screwed ends, and are constructed with various materials of cast carbon steel, stainless steel, alloy steels, and forged steels.

Various combinations of seating and stem materials are available to meet specific customer requirements.

Features of Cast Steel Globe Valves:
Straight Pattern Body Design
Swivel Plug Disc Design Standard
Flat and Regulating Type Disc Available
Bolted Bonnet
OS&Y, Rising Stem and Handwheel
Threaded-in Back Seat
Flanged or Butt-welding Ends
Gear or Actuator Available

Applicable Standards of Cast Steel Globe Valves:
a) Design&Manufacture: BS 1873, ASME B16.34
b) Face to Face: ASME B16.10, EN 558, BS2080
c) Connection End: ASME B16.5, ASME B16.25, EN 1092
d) Test and Inspection: API 598, EN 12266, BS 6755

Sizes: 1/2" - 12" or DN12 - DN300
Pressure Rating: Class150 - Class2500 or PN16 - PN420
Materials of Valve Body: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.
Operated by: Handwheel, Gear, Pneumatic, hydraulic and Electric actuator.

Would you like to get more products information or order it, please call me, or click Inquiry Now to fill in the Form.
It helps you get more informations you need to trade confidently with suppliers.
Related products : Gate Valve | Ball Valve | Check Valve | Globe Valve | Butterfly Valve | Knife Gate Valve
Prod Model: J41W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2"---24"
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
Material: Cast Steel
