Technical dates:1. The working air pressure: 3.0 mpa, hydraulic pressure: 6.5 mpa
2. Suitable medium: NH3, R12, R22, R502, R407C, R134A, R404A etc. Refrigerants and other refrigerating oil.
3. Suitable temperature: -50°c+150°c
4. Material: Cast steel
5. They are used in marine refrigerator system widely
6. DN: Dn20, dn32. Dn40. Dn 50. Dn65. Dn 80. Dn100. Dn125. Dn150. Dn200. 7.Nominal size: 25 (mm)
8.the shape of the open-close part: groove type throttle valve
9. Working temperature: room temperature
10.material: carbon steel
11.Direction of flow: one-way
12.pressure: the atmospheric pressure
13.handwheel type: L7G20
14.Connection: welding
Function:

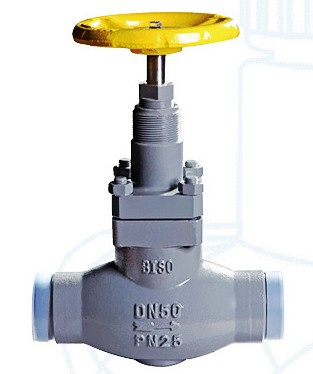

Globe valve is installed on refrigeration pipe in Ammonia system. The function is for adjusting the flow in pipe.

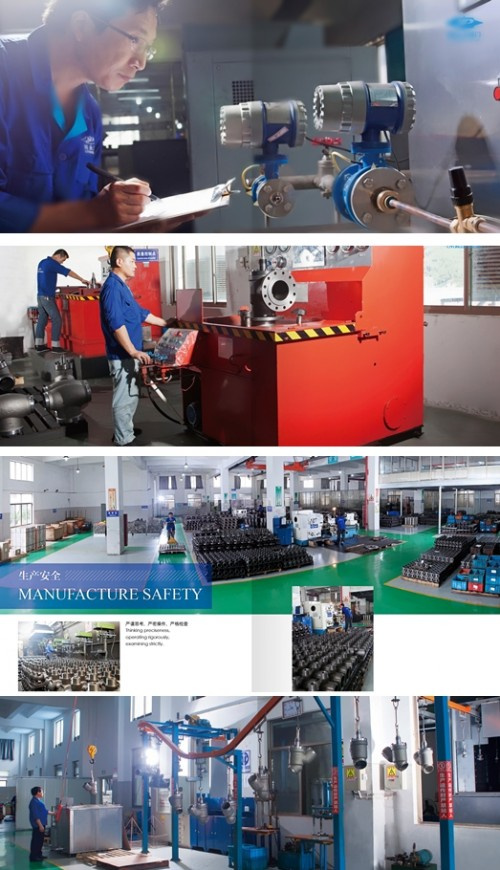

producing line& testing device .

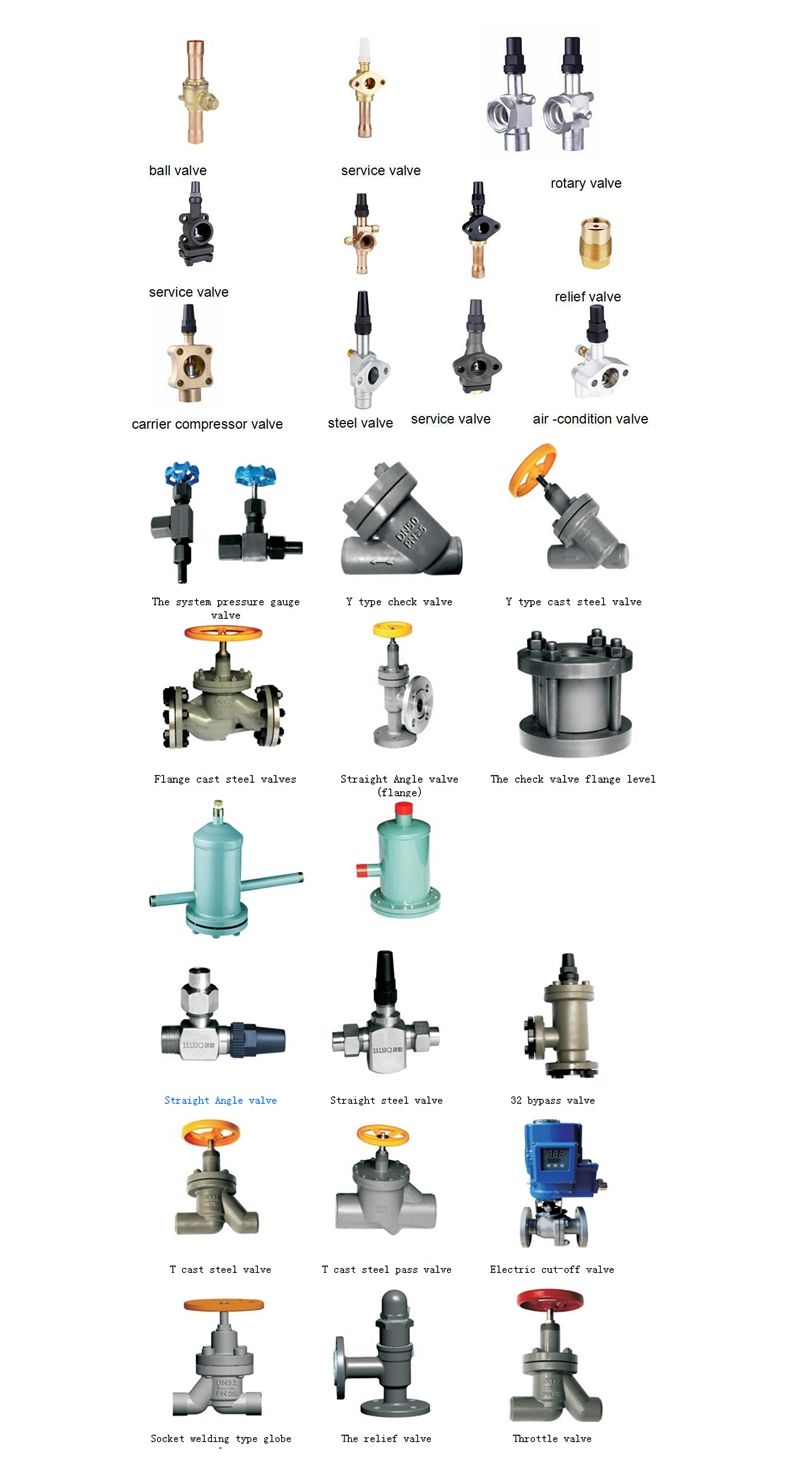

Other valve series !
| Model | A | ΦB | ΦC | DN | L | L1 |
| J7G20 | 155 | Φ25 | Φ100 | Φ20 | 110 | 45 |
| J7G32 | 178 | Φ38 | Φ120 | Φ30 | 160 | 70 |
| J7G40 | 233 | Φ45 | Φ120 | Φ40 | 180 | 70 |
| J7G50 | 257 | Φ57 | Φ140 | Φ50 | 210 | 80 |
| J7G65 | 273 | Φ76 | Φ160 | Φ65 | 265 | 100 |
| J7G80 | 327 | Φ89 | Φ200 | Φ80 | 320 | 125 |
| J7G100 | 378 | Φ108 | Φ220 | Φ100 | 360 | 150 |
| J7G125 | 400 | Φ133 | Φ250 | Φ125 | 400 | 175 |
| J7G150 | 412 | Φ159 | Φ250 | Φ150 | 500 | 220 |
| J7G200 | 483 | Φ219 | Φ320 | Φ200 | 580 | 240 |
FAQ:Q: What is your MOQA: 5PCSQ: Are you a factory?A: Yes, we are a factoryQ: How about your delivery time?A: Lots of in store, about 1-3 working daysQ: Is there any discount?A: Surely, different qty with different discountQ: Shipment T/T DHL UPS FedexBy Sea By AirQ: Payment Western Union T/T L/C
Zhejiang Brilliant refrigeration Equipment Co., Ltd, is located Ruao industrial park in Xinchang County, Zhejiang province., China. Our company specializes in producing semi-hermetic refrigeration compressor. Which contains Bizer type compressor and Copeland type compressor. We also produce right-angle pattern globe valve, straight-through type globe valve, compressor valve, Refrigeration valve. And we had in this field since 1992. The enterprise owns the consummate production equipments, the abundant technical force, the perfect quality control system, the quality personnel group so as to produce the quality products. Our objective is "to seek the better developments by our unceasing steps, produce the fine quality for good personality, pay due contribution to the society by the quality goods".
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
