Cast Steel Globe Valve
| Price: |
Negotiable |
| Trade Terms: |
by sea, by air |
| Min Order: |
50/Piece |
SBAXRF-000

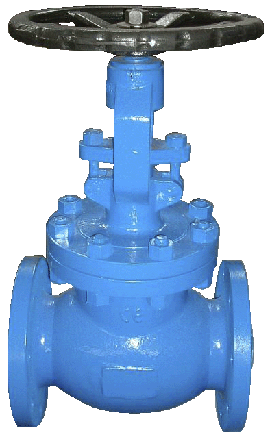

CAST STEEL BS GLOBE VALVE, FLANGED ENDS, HANDWHEEL;
1)Standard:
Design: BS 1873
Face to Face: BS 2080
Flange: ANSI B16.5
2)Main Parts Name and Material:
Body: WCB,WCC,WC5,WC6,WC9,C5,C12,CF8,CF8M,CF3,CF3M
Disc Facing: 13CR,SS304,SS316,STL
Seat Facing: 13CR,SS304,SS316,STL
Stem: 2CR13,SS304,SS316
3)Size
2" ~8"
4)Drawing
Attached picture and website
CLASS 150 GLOBE VALVE FLANGE END AND WLEDING END
|
DN
| NPS
| F(mm)
| L
| LJ
| D
| D1
| D2
| b
| Z*Φd
| W
| H(OPEN)
| Wt(kg)
|
15
| 1/2
| 2.1
| 4-1/4
| -
| 3-1/2
| 2-3/8
| 1-3/8
| -
| 4*5/8
| 4
| 7-1/8
| 3.5
|
20
| 3/4
| 2.1
| 4-5/8
| -
| 3-7/8
| 2-3/4
| 1-11/16
| -
| 4*5/8
| 4
| 7-1/2
| 3.9
|
25
| 1
| 2.1
| 5
| -
| 4-1/4
| 3-1/8
| 2
| 7/16
| 4*5/8
| 4-3/4
| 8-1/2
| 5.8
|
40
| 1-1/2
| 2.1
| 6-1/2
| -
| 5
| 3-7/8
| 2-7/8
| 9/16
| 4*5/8
| 5-1/4
| 10
| 10.8
|
50
| 2
| 2.1
| 8
| -
| 6
| 4-3/4
| 3-5/8
| 5/8
| 4*3/4
| 7-7/8
| 13
| 20
|
65
| 2-1/2
| 2.1
| 8-1/2
| -
| 7
| 5-1/2
| 4-1/8
| 11/16
| 4*3/4
| 9-7/8
| 14-1/8
| 32
|
80
| 3
| 2.1
| 9-1/2
| -
| 7-1/2
| 6
| 5
| 3/4
| 4*3/4
| 11
| 15-3/8
| 42
|
100
| 4
| 2.1
| 11-1/2
| -
| 9
| 7-1/2
| 6-3/16
| 15/16
| 8*3/4
| 11-3/4
| 17-1/2
| 64
|
150
| 6
| 2.1
| 16
| -
| 11
| 9-1/2
| 8-1/2
| 1
| 8*7/8
| 13-3/4
| 20-1/2
| 114
|
200
| 8
| 2.1
| 19-1/2
| -
| 13-1/2
| 11-3/4
| 10-5/8
| 1-1/8
| 8*7/8
| 15-3/4
| 24
| 186
|
CLASS 300 GLOBE VALVE FLANGE END AND WLEDING END
|
15
| 1/2
| 2.1
| 6
| 6-7/16
| 3-3/4
| 2-5/8
| 1-3/8
| 9/16
| 4*5/8
| 4
| 6-3/8
| 3.7
|
20
| 3/4
| 2.1
| 7
| 7-1/2
| 4-5/8
| 3-1/4
| 1-11/16
| 5/8
| 4*3/4
| 4-3/4
| 6-5/8
| 5.3
|
25
| 1
| 2.1
| 8
| 8-1/2
| 4-7/8
| 3-1/2
| 2
| 11/16
| 4*3/4
| 5
| 7-5/8
| 7.3
|
40
| 1-1/2
| 2.1
| 9
| 9-1/2
| 6-1/8
| 4-1/2
| 2-7/8
| 13/16
| 4*7/8
| 6-5/8
| 9-1/4
| 15.4
|
50
| 2
| 2.1
| 10-1/2
| 11-1/8
| 6-1/2
| 5
| 3-5/8
| 7/8
| 8*3/4
| 7-7/8
| 15-1/4
| 26
|
65
| 2-1/2
| 2.1
| 11-1/2
| 12-1/8
| 7-1/2
| 5-7/8
| 4-1/8
| 1
| 8*7/8
| 7-7/8
| 16-1/2
| 40
|
80
| 3
| 2.1
| 12-1/2
| 13-1/8
| 8-1/4
| 6-5/8
| 5
| 1-1/8
| 8*7/8
| 11
| 17-1/4
| 50
|
100
| 4
| 2.1
| 14
| 14-5/8
| 10
| 7-7/8
| 6-3/16
| 1-1/4
| 8*7/8
| 13-3/4
| 20-1/4
| 90
|
150
| 6
| 2.1
| 17-1/2
| 18-1/8
| 12-1/2
| 10-5/8
| 8-1/2
| 1-7/16
| 12*7/8
| 15-3/4
| 26
| 160
|
200
| 8
| 2.1
| 22
| 22-5/8
| 15
| 13
| 10-5/8
| 1-5/8
| 12*1
| 17-3/4
| 35-1/2
| 290
|
CLASS 600 GLOBE VALVE FLANGE END AND WLEDING END
|
15
| 1/2
| 6.4
| 6-1/2
| 6-7/16
| 3-3/4
| 2-5/8
| 1-3/8
| 9/16
| 4*5/8
| 4
| 6-3/8
| 4.5
|
20
| 3/4
| 6.4
| 7-1/2
| 7-1/2
| 4-5/8
| 3-1/4
| 1-11/16
| 5/8
| 4*3/4
| 5-1/2
| 6-5/8
| 7.3
|
25
| 1
| 6.4
| 8-1/2
| 8-1/2
| 4-7/8
| 3-1/2
| 2
| 11/16
| 4*3/4
| 6-1/4
| 7-5/8
| 9.6
|
40
| 1-1/2
| 6.4
| 9-1/2
| 9-1/2
| 6-1/8
| 4-1/2
| 2-7/8
| 7/8
| 4*7/8
| 7-1/2
| 9-1/4
| 19
|
50
| 2
| 6.4
| 11-1/2
| 11-5/8
| 6-1/2
| 5
| 3-5/8
| 1
| 8*3/4
| 10
| 14-1/4
| 35
|
65
| 2-1/2
| 6.4
| 13
| 13-1/8
| 7-1/2
| 5-7/8
| 4-1/8
| 1-1/8
| 8*7/8
| 10-1/2
| 15-1/2
| 50
|
80
| 3
| 6.4
| 14
| 14-1/8
| 8-1/4
| 6-5/8
| 5
| 1-1/4
| 8*7/8
| 12
| 18-1/4
| 60
|
100
| 4
| 6.4
| 17
| 17-1/8
| 10-3/4
| 8-1/2
| 6-3/16
| 1-1/2
| 8*1
| 15-3/4
| 21-1/2
| 110
|
150
| 6
| 6.4
| 22
| 22-1/8
| 14
| 11-1/2
| 8-1/2
| 1-7/8
| 12*1-1/8
| 19-1/2
| 34-3/4
| 230
|
