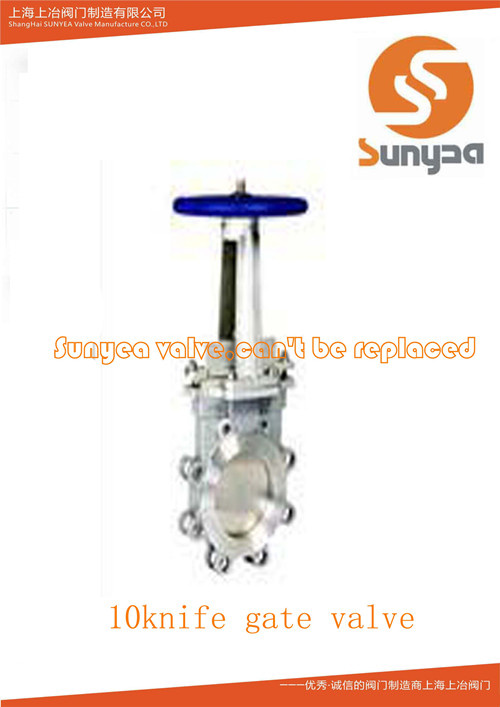

KNIFE GATE VALVE BRIEFING INTRODUCTION:
FEATURES
Size: 2"~60"
Class: 0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa
Rising Stem, Non-Rising Stem
Seal Type: Metal To Metal Seat, Soft Seat
Accessories: Flange, Solenoid Valve, Air Filter, Limit Switch
SPECIFICATIONS
Design MSS. SP-81
Face to Face KSS. SP-81 & TAPPI TIS405-8
End Flange ASME B16.5, ASME B16.47
Test MSS. SP-81
Optional Body Material: A216 WCB, A352 LCB, A351 CF8, CF8M, CF3, CF3M, Duplex, etc.
STRUCTURE PERFORMANCE:
1. Liftable sealing surface of wedge can scrape of f the adhered things on the sealing surface and automatically eliminate the impurities.
2. The Stainless steel wedge can prevent sealing leakage due to corrosion.
3. The integral stainless steel materials can prevent corrosion and damage.
4. The scientific back seal packing box design makes the bak seal safe, effective and durable.
5. The triangle supporter ensures necessary mechanical properties.
6. V shape wedge can serve as control valve.
7. The guide block on the valve body enables the wedge to move correctly and extrusion block provides effective sealing for the wedge.
8. The design of valve body reinforcing rib can enhance the body strength.
APPLICATION
Knife gate valve is widely used as a regulating and corrent-carrying device on various fluid pipelines of dregs in large enterprises such as sewage treatment, chemical industry, coal mining industry, paper-making industry, sugar-making industry, tap water, construction, food, electric power, medicine and energy system etc.
Sunyea Valve is a leading manufacture of industrial valves in China with head office located inShanghai SongJiang district.
Now SUNYEA have two factories, Shanghai Sunyea, Wenzhou Sunyea and one India office. Shanghai SUNYEA covers a area 42, 000 m2. It processes complete production facilities onmachining, welding, assembling, pressure testing, packing and storage. Since the founding of the company in 1999, it has been focusing on developing and manufacture industrial valves. Ourproduct are exported to over 30 countries and regions around the world, including main marketsin North America, West Europe and Middle East.
To ensure high quality of products, SUNYEA is equipped with computerized or numerical controlled machines, such as horizontal CNC machine center, CNC lathes and CNC drilling machines. SUNYEA has massive pressure testing equipments to have each valves strictly tested on high pressure shell, high pressure sealing and low pressure gas sealing before delivery. The testing facilities are serviced by a cycling water system which not only saves water resource, but also effectively protects the environment.
SUNYEA carries out "Total Quality Manage System". It has strict quality inspection and qualitycontrol on every procedure, from raw materials to the finished products. Each piece of casting or forging is test for analysis of chemical elements and mechanical properties. Every main work piece is affixed with stamp of producer and inspector after processing, and each valve affixed with the stamp of the assembling and pressure testing operators. So that the quality of eachvalve is traceable and component and material is also traceable.
SUNYEA valve products are widely used in Oil, Gas, Pipeline Transmission, Refining, Chemical, Petrochemical, Power Generation Industries, to serve for numerous valve distributor, EPCs, and End users. Sunyea brand is getting more widely recognized for its engineering achievement and market reputation.
