Cast Steel Pressure Seal Gate Valve

Cast Steel Pressure Seal Gate Valve
Price: US $ 60/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Product Description

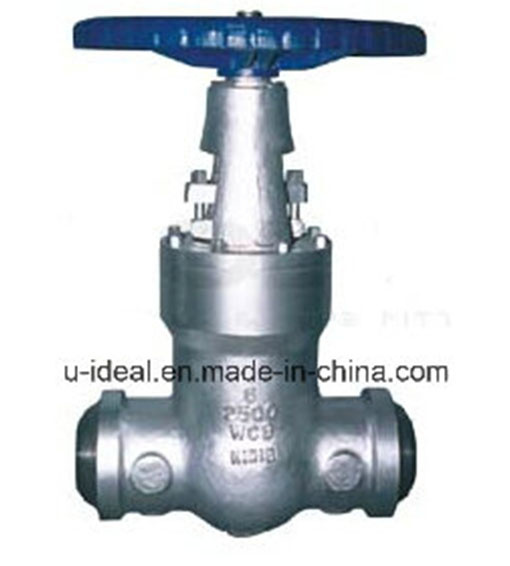

Cast Steel Pressure Seal Gate Valve
For gate valve with pressure Class 600 / PN100 or higher, Pressure seal bonnet is suggested for better closure, while bolted bonnet is still available for customer's option.
The pressure seal design incorporates a metal-to-metal seal that becomes tighter as the pressure increases. The initial preload deforms the taper on the soft iron gasket to mate with the taper on the bonnet. The thin knife-edge on the gasket is wedged tightly between the body and the bonnet. The shallow angle insures that the gasket is sealed tightly with only a small upward force on the bonnet. Once the initial seal is created, the body/bonnet joint will remain leak free regardless of thermal or pressure conditions in the valve. After the joint has been assembled, there is no further need to adjust bonnet cap screws.

Features of Cast Steel Pressure Seal Gate Valves:
Pressure Seal Bonnet
Outside Screw & Yoke
Metal-to-metal seat, stellite overlay on wedge disc, seat and backseat
Standard ISO top mounting for easy assembly of any type of actuator or bevel gear.
Butt-weld end or flange end

Applicable standards of Cast Steel Pressure Seal Gate Valves:
A) Design & Manufacture: API 600, API 6D, ASME B16.34
B) Face to Face: API 6D, ASME B16.10, EN 558
C) Connection End: ASME B16.5, ASME B16.25, EN 1092, EN 12627, JIS B2220
D) Test: API 600, API 6D, EN 12266

Sizes: 4" - 32" or DN100 - DN800
Pressure Rating: Class 600 - Class 2500 or PN 100 - PN 420
Valve Materials: WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, Duplex Stainless Steels, etc.
Operated by: Handwheel, Gear, Pneumatic, Hydraulic and Electric actuator

Would you like to get more products information or order it, please call us, or click Inquiry Now to fill in the Form.
It helps you get more informations you need to trade confidently with valve suppliers.
Related products: Gate Valve Ball Valve Check Valve Globe Valve Butterfly Valve Knife Gate Valve

Design and ManufactureANSI B16.34, API600, API6D, API603, BS1414
Face to face(end to end)ANSI B16.10, API6D
Flanged connection2"~24" to ANSI B16.5 22", 26"~36" to MSS-SP-44 or to API605 on Request
FACE TO FACEASME B16.10
Test and inspectionAPI598, API6D
Butt welded endANSI B16.5


Prod Model: Q60U
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Design & Manufacture: API 600, API 6D, Asme B16.34
Face To Face: API 6D, Asme B16.10, En 558
Connection End: Asme B16.5, Asme B16.25, En 1092, En 12627, JIS B2
Test: API 600, API 6D, En 12266
Sizes: 4" - 32" or Dn100 - Dn800
Material: Carbon Steel
Connection Form: Folder
Seal Surface: Parallel Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Household Usage
