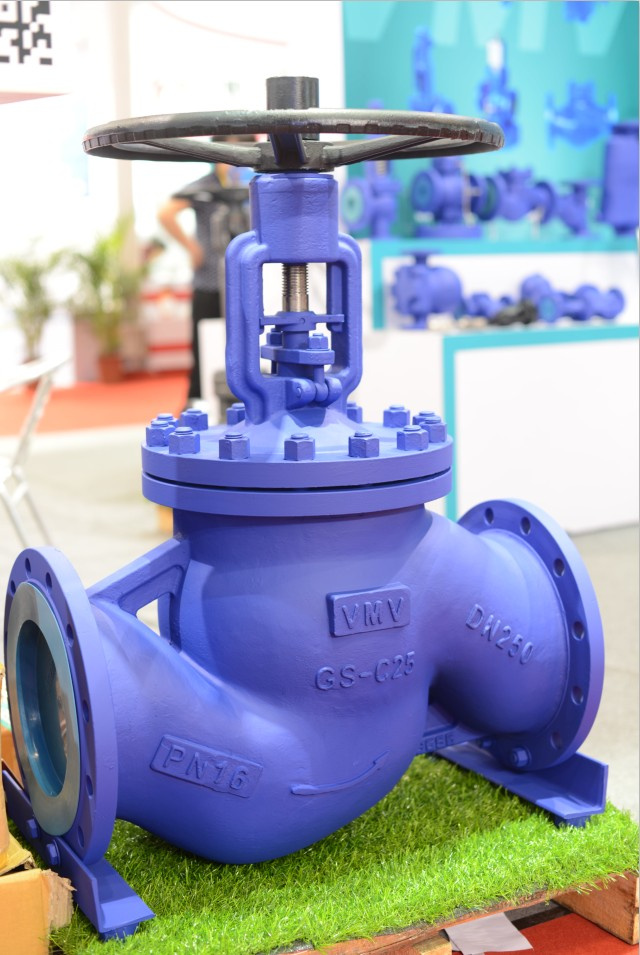

Cast Steel Steam Bellow Sealed Globe Valve Stock

Cast Steel Steam Bellow Sealed Globe Valve Stock
Price: US $ 25/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Application
Hot oil system, steam system, hot and cold water system etc.


Advantage
1.Bellow seal element.The key part of bellow sealed globe valves is mental bellow.It is the connection between cover and stem with automatic roll welding.The mental bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows+packing).Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple.It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel.It provide longer service life and easier operation.


Technical specification
Design standard:DIN 3356
Face to face dimension:DIN 3202
Flanged ends:DIN 2543-2545
Test & inspection:DIN 3230



Main part materials
NO.Part nameMaterial
1BodyGS-C25,GGG-40,1.4401
2Seat1.4301,Stellite
3Disc1.4021,1.4401+ Stellite
4Pin1.4301,1.4401
5Bellow assemble1.4301,1.4401
6Stem1.4021,1.4301,1.4401
7GasketFlexible graphite + stainless steel
8CoverGS-C25,GGG-40,1.4401
9NutASTM 194-2H,A194-8
10Double-headed boltASTM 194-B7,A193-B8
11PackingFlexible graphite
12Gland1C25,1.4301,1.4401
13Locator1C25
14Stem nutCopper alloy,D2,BL2
15Hand wheelCarbon steel
16Cap1C45



Performance specification
Nominal PressurePN
Test PressureStrength test1.5PNMPa
Sealing test1.1PN
Gas seal test0.6
----
Suitable temp-196ºC~600ºC


Main connection size
PN 16
DNMain connection size
LDD1D2BFHN-Φd
151309565451621954-Φ14
2015010575581821954-Φ14
2516011585681822074-Φ14
32180140100781822184-Φ18
40200150110881832254-Φ18
502301651251022032304-Φ18
652901851451222032724-Φ18
803102001601382032908-Φ18
1003502201801582033558-Φ18
1254002502101882234108-Φ18
1504802852402122234258-Φ22
20060034029526824354012-Φ22
25073040535532026366512-Φ26
30085046041037828472012-Φ26
35098052047043830497016-Φ26
4001100580525490324105516-Φ30
PN 25
151309565451621954-Φ14
2015010575581821954-Φ14
2516011585681822074-Φ14
32180140100781822184-Φ18
40200150110881832254-Φ18
502301651251022032304-Φ18
652901851451222232728-Φ18
803102001601382432908-Φ18
1003502351901622433558-Φ22
1254002702201882634108-Φ26
1504803002502182834258-Φ26
20060036031027830354012-Φ26
25073042537033532366512-Φ30
30085048543039534472016-Φ30
35098055549045038497016-Φ33
4001100620550505404105516-Φ36
PN 40
151309565451621954-Φ14
2015010575581821954-Φ14
2516011585681822074-Φ14
32160140100681822184-Φ18
40180150110781832254-Φ18
502301651251022032304-Φ18
652901851451222232728-Φ18
803102001601382432908-Φ18
1003502351901622433558-Φ22
1254002702201882634108-Φ26
1504803002502182834258-Φ26
20060037532028534354012-Φ30
25073045038534538366512-Φ33
30085051545041042472016-Φ33
35098058051046546497016-Φ36
4001100660585535504105516-Φ39
Please contact me for details.I will reply you as soon as possible.There will be more discount!
Attn:Charlie Lin
Tex:86-577-67978269
Fax:86-577-57772766
Mobile:86-13868638727
Prod Model: WJ41H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Body: Cast Steel, Ss304, Ss316, Ss316L, Hc276
Size: 1/2" ~16"
Pressure: Pn16 Pn25 Pn40
Product Type: Bellow Sealed Globe Valve
Clour: Blue
Brand: OEM
Vmv: Vmv Valve
Structure: Through Way Globe Valve
Sealing Form: Bellows Globe Valve
Stem Thread Position: Inside Screw Stem Globe Valve
Application: Bellows Globe Valve
Standard: GB
Zhejiang Newton Fluid Control Co., Ltd. (NFC)

Introduction

The NFC is a professional bellow sealed valves company located in Oubei Wenzhou which is named the land of pumps and valves. It is founded in 2000, when its name is Yongjia Huamei Valve, and devoted to valve research and development, manufacture, marketing and service. Through the past decade, with unremitting efforts and innovation, the NFC has become one of the leading companies in the valve industry. It has over 200 staff members, of which there are more than 20 employees with senior professional titles and more than 140 employees with professional valve manufacturing skills.
