Product Explanation:
Product Category: Ball Valve
Detailed Product Description:

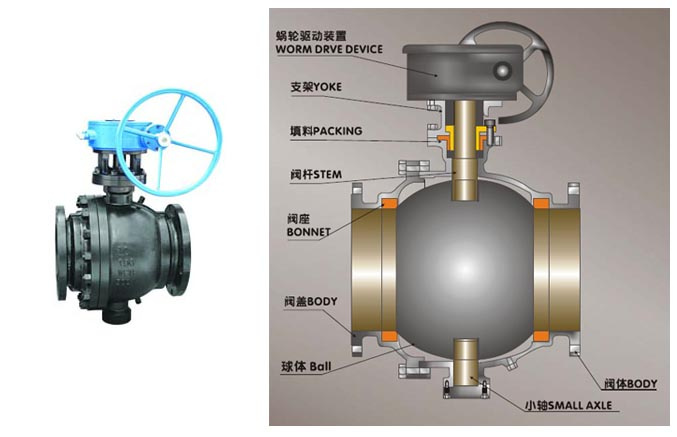

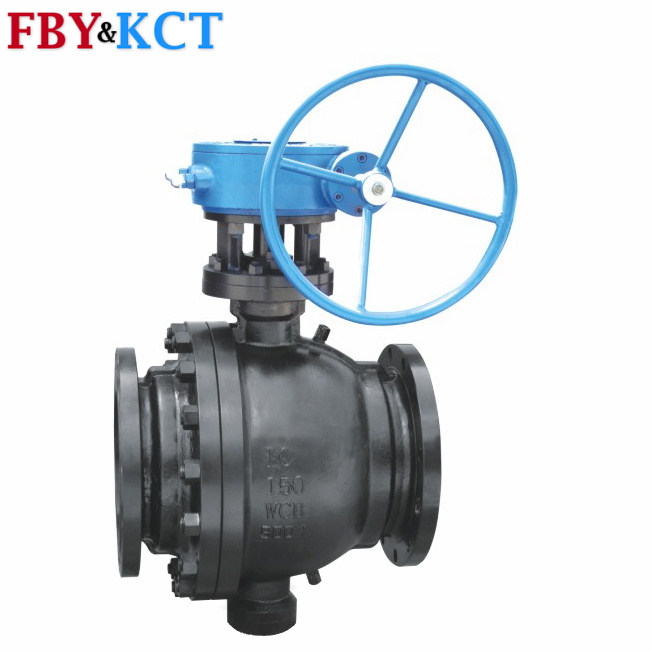

CLASS 150~1500 CAST STEEL TRUNNION MOUNTED BALL VALVE
Bolted cover, Two-piece or three-piece Body, fixed Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A216 WCB, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: API 6D
Face to face(end to end): API 6D
Flanged connection: 2"~24" to ANSI B16.5
Fire-safe: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 6D
Product Category: Ball Valve
Detailed Product Description:
CLASS 150~1500 CAST STEEL TRUNNION BALL VALVE
Bolted cover, Two-piece or three-piece Body, fixed Ball
Full or Reduced bore, Blowout Proof Stem
Fire safe and Anti static
Dual seat with injection and drain & outlet
ASTM A216 WCB, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M, A351 CN7M
Standards compliance
Design and Manufacture: API 6D
Face to face(end to end): API 6D
Flanged connection: 2"~24" to ANSI B16.5
Fire-safe: API 607, API 6FA
Butt welded end: ANSI B16.25
Test and inspection: API 6D
| DN(inch) | Φ d | Port | L | H | H1 | A | W | Φ E1 | Φ E2 | P | Φ D | Φ S | T1 | T2 | Φ U1 | Φ U2 |
| 1/2" | 15 | 9.6 | 99 | 42 | 72 | 8 | 135 | 36 | 42 | 9 | 25 | 50.4 | - | 3.63 | 6 | 6 |
| 3/4" | 20 | 15.9 | 104 | 48.5 | 80 | 9 | 135 | 36 | 42 | 9 | 25 | 50.4 | - | 3.63 | 6 | 6 |
| 1" | 25 | 22.2 | 119 | 58.5 | 90 | 11 | 170 | 42 | 50 | 11 | 50.4 | 43.6 | 28.5 | 4.75 | 6 | 7 |
| 1-1/4" | 32 | 28.5 | 126 | 63 | 95 | 11 | 170 | 42 | 50 | 11 | 50.4 | 43.6 | 28.5 | 4.75 | 6 | 7 |
| 1-1/2" | 38 | 34.9 | 144 | 71 | 106 | 14 | 200 | 50 | 70 | 14 | 50.4 | 43.6 | 28.5 | - | 7 | 9 |
| 2" | 50 | 47.5 | 156 | 78 | 113 | 14 | 200 | 50 | 70 | 14 | 63.9 | 56.3 | 28.5 | - | 7 | 9 |
| 2-1/2" | 65 | 60.5 | 190 | 100 | 149 | 17 | 300 | 70 | 102 | 17 | 77.4 | 70.6 | 28.5 | - | 9 | 11 |
| 3" | 76 | 72.9 | 220 | 109 | 159 | 17 | 300 | 70 | 102 | 17 | 90 | 83.3 | 28.5 | - | 9 | 11 |
| 4" | 100 | 97.4 | 270 | 140 | 205 | 22 | 400 | - | 102 | 22 | 118.9 | 110.3 | 28.5 | - | - | 11 |
Kaixite Valve Co., Ltd. is a professional manufacturer For Ball Valve and valve actuators, located in the "China hometown of valves&pumps"-Oubei, Wenzhou. We specialized in Ball valve with ISO5211 direct mounting pad and various kinds of actuators, including electric actuators, pneumatic actuators, hydraulic actuators, which can meet with various automation flow controls.
In accordance with the ANSI, DIN, JIS standards, Our ball valves are widely used in Petrochemicals, Chemical, LNG&Cryogenics, Pulp&paper, Water and Wastewater, Mining, Refining, Marine, Electric power etc fields, successfully for flow controls. Our products had exported to Europe, America, Middle East, Southeast Asia etc.
KCT valve has a lot of advanced Machining center, NC lathes, valve test center, and computer control center with auto CAD/CQM software can effectively ensure our successful development, design, production, and quality control.
According to the different working conditions, we effectively meet customer' S requirements with top quality goods and service. We consider it is our company' Life to give every customer fully satisfaction and the remarkable quality and service are the KCT person' S forever pursue.
Welcome Friends to contact us from all over the world to establish business with us.
