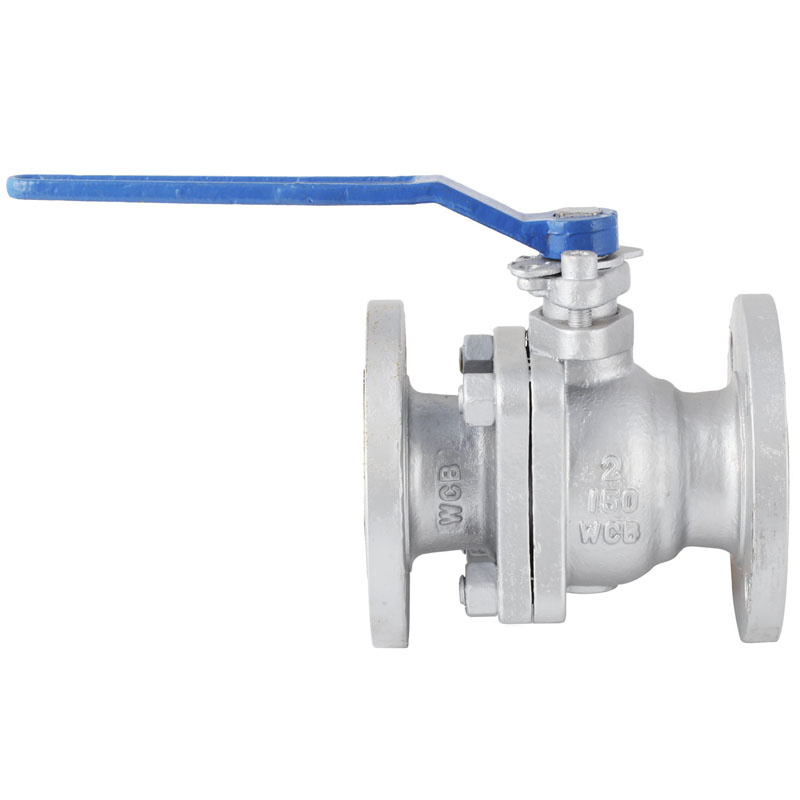

Cast Steel Wcb Flanged End Ball Valves

Cast Steel Wcb Flanged End Ball Valves
Price: US $ 20-2000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T,D/P
Cast steel ball valve and Forged steel Ball Valves, Flanged ball valve, floating ball valve, trunnion mounted ball valve

Standard compliance:
1) Design and manufacture: API6D, API608, BS5351, ANSI B16.34
2) Test and inspection: API6D, API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5, B16.47 SERIES A & SERIES B
5) Butt-welding end: ANSI B16.25
6) Fire safe: API607, API6FA
7) Other standards (DIN, BS, JIS) is also available upon request.

Specifications:
1) Size: 1/2" to 48"
2) Class: 150LB to 2500LB
3) Type: Floating ball and trunnion mounted, full bore or reduced bore, soft seated or metal seated, top entry or side entry, one-piece/two-piece/three-piece, anti-blow out stem, antistatic design
4) Material: WCB, WCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, LF2, A105, F304, F316, F304L, F316L, F11, F22, DUPLEX SS, MONEL, ALLOY 20, CAST IRON etc
5) Operation: Lever, gear,

Cast Steel Ball Valves - Floating Ball Type        Class 150 / 300 / 600

2-PC, FB or RB, Blowout-proof stem, Fire-safe, Anti-static.
Design and manufacture: API 6D, API 608,ANSI B16.34 or BS5351
Test and inspection: API6D, API 598.
Face to face dimensions: ANSI B16.10
End flange dimensions: ANSI B16.5
Butt-welding ends: ANSI B16.25
Fire safe: API607, API6FA
Size: 1/2" - 12"
Material: WCB, LCB,CF8, CF8M, CF3 and CF3M etc.

Materials of body/bonnet and trim
Body/bonnetWCB, LCB, LCC, WC1, WC6, WC9, C5, C12, CF8, CF8M, CF3 and CF3M etc.
BallSS304/SS316/S304L/SS316L
SeatPTFE, NYLON, METAL TO METAL


Type of operation: lever, gear

Standard materials of parts
No.PartsMaterials
1R-BodyASTM A216 WCB
2Bonnet boltASTM A193 B7
3Bonnet nutASTM A194 2H
4GasketPTFE
5L-bodyASTM A216 WCB
6BallSS304
7Seat ringPTFE
8StemASTM A182 F6
9Stem seatPTFE
10Stem packingPTFE
11Gland flangeASTM A216 WCB
12LeverCast Steel
13Small ballSS304
14Small springSS304

Dimensions (in mm & inch) and weight
Class 150
DN15202540506580100150200250350
NPS1/23/411.1/222.1/234681012
L(RF)108117127165178191203229394457533610
L1(BW)140152165190216241283305457521559635
L2(RTJ)119129.7139.7178191203216241406470546622
H59637595153165195213272342495622
Do (W)13013016023040040060085011001500*350*350
RF (Kgs)2.334.571520254097160240390
BW (Kgs)22.53.85.81217213692.8154227365


Class 300
DN15202540506580100150200
NPS1/23/411.1/222.1/23468
L(RF)140152165190216241283305403502
L1(BW)140152165190216241283305457521
L2(RTJ)151164.7177.7202.7232257298321419518
H596375107153165195213272342
Do (W)13013016023040040060085011001500
RF (Kgs)2.53.55.510.520253152118200
BW (Kgs)2.134.88.717222848105185


Class 600
DN15202540506580
NPS1/23/411.1/222.1/23
L(RF)165190216241292330356
L1(BW)165190216241292330356
L2(RTJ)163.4190216241295333359
H596375107153165195
Do(W)1301601602306008501250
RF (Kgs)7.510.514.518.5385666
BW (Kgs)68.71114.7314958



Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, bolts&nuts&gaskets, steel plates, tubing and casing, line pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.
Prod Model: WCB FE BALL VALVE
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2" to 48" or Larger
Body Material: Carbon Steel Wcb,Wcc,Wc6,Wc9,C5 etc.
Split Body: 2PC or 3PC
Ending: Flanged End or Butt Welded End
Seat: Metal Seat or Soft Seat
Ball Type: Floating Ball or Trunnion Mounted
Connection Form: Flange
Channel: Straight Through Type
Application: Water Industrial Usage
Material: Carbon Steel,Stainless Steel,Alloy Steel
Structure: Floating Ball or Trunnion Mounted
Type: Floating Ball or Trunnion Mounted
Function: on-off
Shenzhen Front Valve Co., Ltd. is one of the leading supplier of various industrial valves, fittings, flanges and relative piping accessories in China. We have been working in this line for more than 10 years, exporting our products to all over the world, such as Europe, USA, South America, Africa, Middle-East, Australia etc. Our quality and good reputation are highly valued by our customers.

All our products are designed and manufactured strictly in conformity with the standard of API, ANSI, AWWA, JIS, BS and DIN, etc. Most of our manufacturers have obtained ISO 9001, API 6D, TUV and CE certificates to ensure the quality stability of the products. We provide EN10204-3.1B. Mill Test Certificate for all our supplied products.

Our products range covers all kinds of ball valves, gate valves, globe valves, check valves, butterfly valves, plug valves, safety relief valves, bellow sealed valves, diaphragm valves, steam traps, knife gate valves, strainers, quick couplings, all types of flanges, pipe fittings, pipes and other pipeline equipment & components, with the materials of carbon steel, alloy steel, stainless steel, grey iron, ductile iron, brass and bronze. Our products are utilized widely in oil, gas, hydraulic, refining chemicals, petrochemicals, pharmaceuticals, food industries, fire-safe systems, marine systems and power stations, etc.

We welcome any potential customer to contact us for more information. We hope, with our technical knowledge and professional experience, our company will become one of your best reliable business partners in China.
