Home Valve Products Cast Valves Bevel Gears Gate Valves

Cast Valves Bevel Gears Gate Valves

Cast Valves Bevel Gears Gate Valves
Price: US $ 74-8888/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T

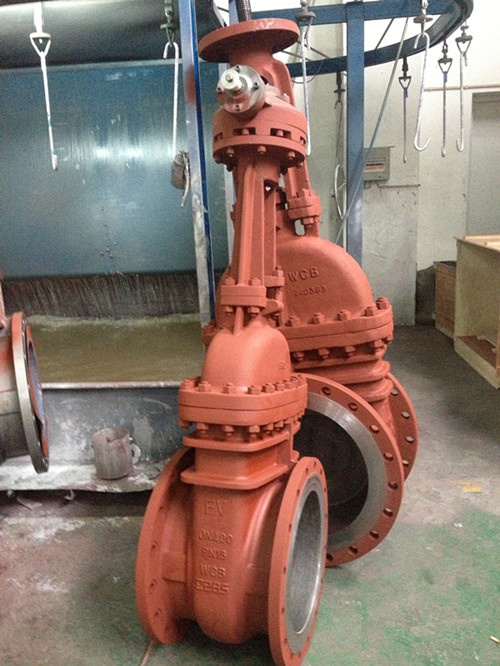

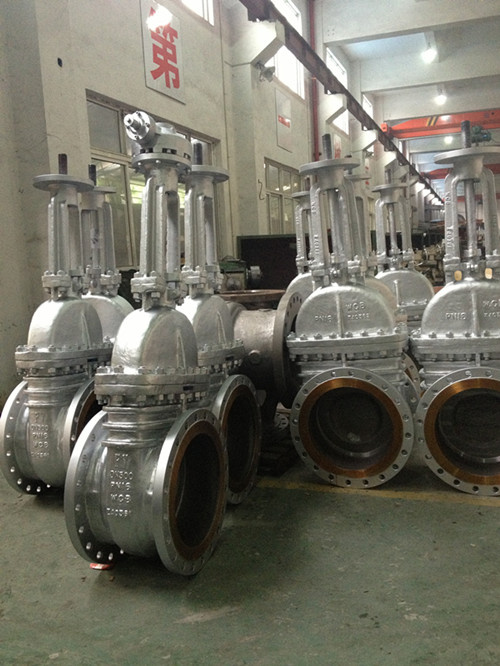

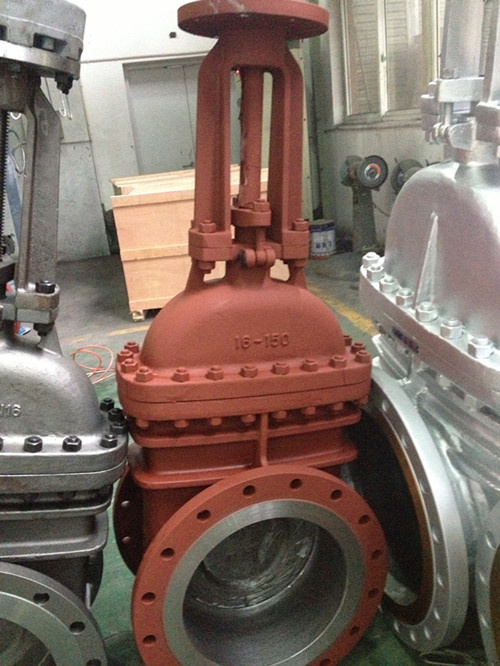

The API600 gate valves is one of RIDI general products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.



Design Standard:

Basic Design:  API 600/BS1414, ANSI B16.34, DIN/EN 1984

Face to Face (End to End):  ANSI B16.10, EN 558

End Connection:  ANSI B16.5, MSS SP-44/ASME B16.47, ANSI B16.25, EN 1092

Test & Inspection:  API 598, EN12266



Products Range:

Size:           2" ~ 64", 50 mm ~ 1600 mm
Rating:         ANSI 150lb ~ 2500lb, 1.6 MPa ~ 15 MPa
Body Materials:  Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim:           Per API 600
Operation:      Handwheel, Gear, Motorized, Pneumatic



Design Feature:

Application:

Flexible wedge
Threaded or welded seat
Optional Impact hand wheel






The API600 gate valves is one of RIDI general products. We offer customer wide range of size, pressure rating and material selection; also we keep a large number of stock for quick delivery.



Design Standard:

Basic Design:  API 600/BS1414, ANSI B16.34, DIN/EN 1984

Face to Face (End to End):  ANSI B16.10, EN 558

End Connection:  ANSI B16.5, MSS SP-44/ASME B16.47, ANSI B16.25, EN 1092

Test & Inspection:  API 598, EN12266



Products Range:

Size:           2" ~ 64", 50 mm ~ 1600 mm
Rating:         ANSI 150lb ~ 2500lb, 1.6 MPa ~ 15 MPa
Body Materials:  Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim:           Per API 600
Operation:      Handwheel, Gear, Motorized, Pneumatic



Design Feature:

Flexible wedge

Threaded or welded seat
Optional Impact hand wheel






Application:

Refinery
Petrochemical

Geothermal plant
Power plant
General Industry


Prod Model: Z540-16"
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 2"--24"
Connection Form: Flange
Material: Carbon Steel
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Outside Gate Valve
Application: Industrial Usage
ZHEJIANG RIDI VALVE Co., Ltd, Located in Chinese famous "Pumps & Valves Hometown" - Oubei Town, Wenzhou. It is a well-know valve producing enterprise including Valve Design, Development, Manufacture, Sales and After-sales Service.

RIDI mainly produce Gate Valves, Globe Valves, Check Valves, Ball Valves, Y Strainers and Bellow Sealed Valves. The Products are in accordance with international design & manufacturing standards. Such as API, ANSI, JPI, JIS, DIN, BS etc. Materials are available as WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M and so on.

The company covers an area of more than 3000 square meters. It has advanced manufacturing & processing equipments, inspection & testing facilities, paint lines etc. It has an experienced staff, from raw material to finished products, every process is strictly controlled and tested to ensure excellent quality.

RIDI has been in valve export business for about more than 10 years. The sales network spreads all over the world. Such as America, The United Kingdom, Germany, France, Japan, Italy, Spain, Holland, Korea, Turkey, Malaysia, Indonesia, India, Pakistan, Singapore, Arab, United Arab Emirates etc. The products are very salable and popular to most of our clients.

Welcome each new & old customer to visit RIDI, we will serve you wholeheartedly!
