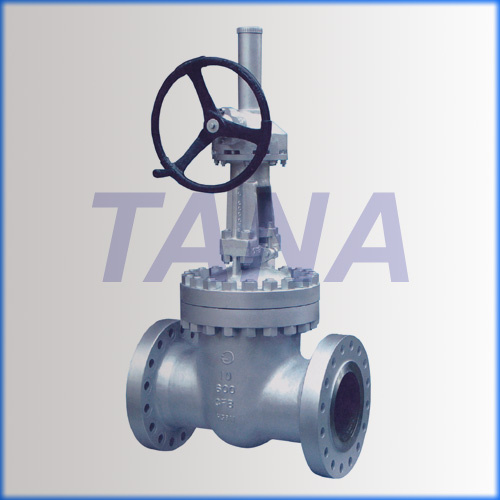

Casted Gate Valve
Design Features
Full port design
OS&Y, outside and screw
Bolted bonnet, back seal structure
Flexible wedge, fully guided
Choice of solid or split wedge
Renewable or welded seat
Extended stem design for low temperature
Flanged or butt-welding ends
Technical Specification
Size:2"-48" or DN50-DN1200
Pressure: Class150-2500LB or PN16-PN250 or 10K-40K
Material:WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M,etc.
Design & Manufacture Std.: API600, ASME B16.34, API6D, BS5351, JIS B2073
Face to Face Std.: ASMEB16.10 (JIS B2002),API 6D, DIN3202, ASME B16.25
End Connection Std.: ASME B16.5,ASME B16.47, JISB2212-JISB2214,
DIN2543-2550,ASME B16.34
Test Standard: ISO5208, API598 (JIS B2003), API 6D, BS 6755
Operated way: Handwheel, Gear, Pneumatic, Electric Actuator
TANA will provide you satisfying Price, Quality And Service.
Welcome to visit or email us your inquiry.
Provide CO,FA,FB,FE,FF,FN,FP,FX etc. Certificates as per customer's requirement.
Wenzhou Topnotch Machine Co., Ltd. is a professional supplier of a wide range of industrial valves and fittings. Our products are used in oil, gas, refinery, paper making, chemical, marine, power station, and pipeline industries.
"Quality, Price and Service" is always at the heart of our work. Over these years' development, we've already established a perfect management system and a well-experienced team for the R&D, manufacture, QC and sales. Above 90% of our products are exported to overseas countries such as Thailand, Malaysia, Syria, Spain, the UK, France, the United States, etc.
Our main products are butterfly valves, ball valves, gate valves, globe valves, check valves, plug valves, control valves, safety relief valves, knife gate valves, V-port ball valves, bellow seal valves, through conduit gate valves, cryogenic valves, diaphragm valves, needle valves, pinch valves, strainers, steam traps, flanges and pipe fittings.
Materials range from conventional cast and forged steel to special alloy materials like monel, inconel, hastelloy and duplex steel. All of our products are designed, manufactured and tested fully according to API, ASTM, ANSI, JIS, DIN and BS standards.
"Keep Promise and Offer Top-Class Products & Services" is our principle. We believe that we can establish and maintain long-term win-win cooperation through our mutual efforts.
