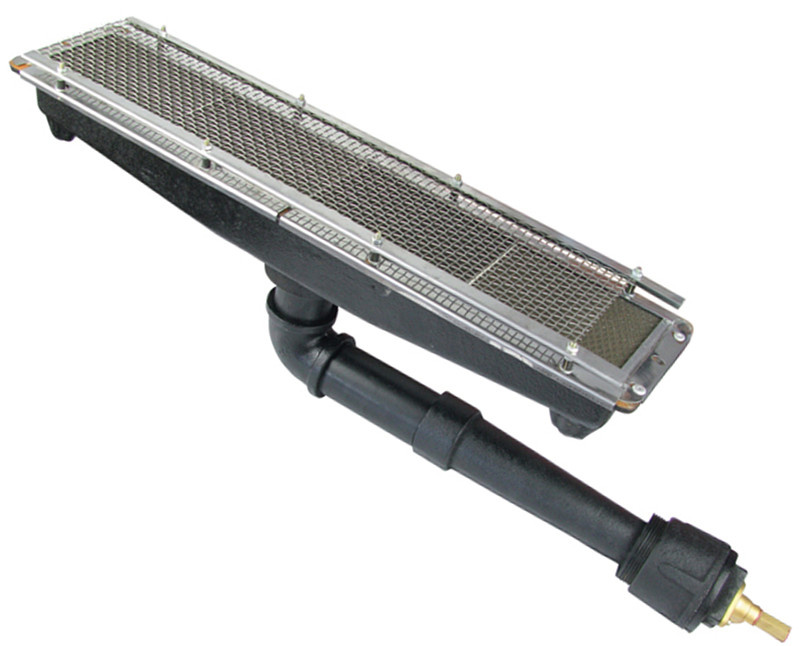

Catalytic Gas Burner HD162 for Welding Heating
Type: HD162
Gas type: LPG or NG
Dimension: 570(L) x 130(W) x 175(H) mm
Weight: 8.0Kg/PC
Heat output: 6.3KW/h or 5400Kcal/h
Gas consumption: 0.45Kg/hr for LPG at the pressure rating of 2.9Kpa;
0.49m3/hr for NG at the pressure rating of 2.0Kpa
Company Profile:
We are specialized in manufacture of wide range of Infrared Burner, Catalytic burner, gas burner, BBQ grill burner, gas BBQ burner, industrial burner, oven heater, gas heater.
Our company is the only one who has advance technology using rare earth catalytic in China, we now have a factory with professional team which enable us to become a leading & reliable manufacturer in China.
Features:
1. Energy saving: Conversion rate: ≥ 90%
2. Environmental friendly: CO≤ 80ppm; NOx≤ 10ppm; CHx≤ 50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray and heating the objects directly;
4. Long useful time: ≥ 11000hr
5. Easily installed
Applied Range:
1. Food Industry: Rice Biscuit( rice cookies covered with snow-like sugar )assembly line, grilled chicken, biscuit, egg roll, roasting shredded squid oven, oven for roast duck, smokeless oven, griddle, middle eastern oven, hot pot oven, roasting pachyrhizus oven, snack car, soup oven, cooking assembly line, infra-red gas baking pan, deep-fry assembly line, water-removing machine, baking, etc.
2. Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
3. Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line.
4. Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching.
5. Paper industry: All kinds of paper dry lines and auxiliary drying heat wall.
6. Farming and animal husbandry: Heating of barton, heating of crops, grain dryer.
|
Model |
Length
(mm) |
Width
(mm) |
Height(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
|
NG |
LPG |
|
m 3 /h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|
HD162 |
570 |
130 |
175 |
8.0 |
0.49 |
0.45 |
6.3 |
5400 |
Furnace type
Parameters |
Electronic
cooker |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
|
Energy requirement |
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
10, 000Kcal |
|
Temperature |
180 |
180 |
180 |
180 |
|
Energy consumption |
Electricity(15 kW/h) |
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(0.9Kg) |
|
Heating time |
20 minutes |
40 minutes |
90 minutes |
5-8 minutes |
Chongqing haodong technology Co., Ltd. Which is specialize in researching, developing, manufacturing and marketing Gas Burner, Infrared Burner, Infrared Heater, Gas Heater, Catalytic Burner, Industrial Heater, Gas BBQ, Gas Grill, Barbecue.
Our product can be used for Food Baking Oven, Fruit and Vegetable Dehydration Process, Brewing Industry, Tea Drying Machinery, Annealing Furnace, Powder Coating Industrial Oven, Textile Drying, Latex Glove and Condom Moulding and Drying and so on.
We are dedicated to domestic and international, advanced Infrared Catalytic Burner as well as introduction and adoption of related energy-saving and environmental products and technology, gives priority to a series of products that conform to the practical application of international BBQ machine. We have experienced administrators and technicists who are professionalized in inrared catalytic gas burner. It is a rigorous, energetic elite team skilled in design, application, management and after-sales services of heat-supply system.
Existing products can be divided into the following series: Infrared catalytic burners for smoke-less oven; Infrared catalytic burner for middle eastern BBQ; Postpositive infrared catalytic burner; Circular infrared catalytic burner; Infrared catalytic gas burner. The maine application ranges from food roaster, industrial oven to drying equipments. We hope to cooperate with customers developing new infrared catalytic combustion products, to meet demands of various new markets. Our company got a favourable reception at home and abroad for it's management philosophy and good quality products.
Management philosophy: Having details on our brain; Making competitive products; Providing all-round services; Meeting customers' needs.
Enterprising spirit: Dedicated and pragmatic; Pironeering and inventing; Professional focus; Creating value.
Warmly welcome customers at home and abroad cooperating with us.
