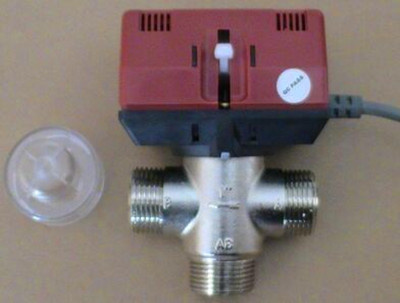

Home Valve Products CE Approval Thermostatic Three Way Brass Motorized Valve (CKF3325T-05)
CE Approval Thermostatic Three Way Brass Motorized Valve (CKF3325T-05)
| Price: |
US $ 13.75-15.85/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
CE Approval Thermostatic Three Way Brass Motorized Valve (CKF3325T-05KY)
1. Product Summary: CKF7000 series of motorized valves are used to control the on/off of the water system in HVAC system, consisting of actuator and valve body. Actuator will drive the stem, moving valve disc up and down. 2. Technical Parameter: - Controlling character: 3-line, springy recover- Driver Voltage: AC230V+/-10%, 50/60Hz (we can Special made 24V if you need)- Power Consume: 4VA(only when the valve door is open)- Motor Variety: Synchronous motor- Running Hour: Power on 18 sec. Power off-15sec. - KV: ≤ 0.06%Kvs- Accepted pressure for valve body: 1600Kpa- Connected way: Tube screw thread G (Can not be connected with wimble screw thread)- Medium of application: Cold and frozen water, hot water and low-pressure vapor. - Temperature of Medium: 2-75º C- Temperature of Circumstance: -5oC~50oC- Length of Down-lead: 100cm- Closed Pressure differential: 2-way 0.3Mpa; 3-way 0.15Mpa- 2 years warranty for CE Approval Thermostatic Three Way Brass Motorized Valve (CKF3325T-05)| Model | Spec | Dimension | Kvs(m3/h) |
| DN(mm) | Inner Screw thread (G) |
| CKF3325T-05 | 25 | 1'' | 15*13.5*8.5 cm | 8.5 |
| Prod Model: |
CKF3325T-05KY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
230VAC 24VAC 110VAC |
| Ways: |
2 Ways ,3 Ways |
| Dn: |
15,20,25 |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
Suzhou HVAC Trading Co., Ltd established in 2004, located in Suzhou City near by Shanghai only 1 hour journey by car
We offer all kinds of solar water heater, low pressurized solar water heater (80L-300L), Compact pressurized solar water heater (80L-300L), split and pressurized solar water heater (80L-1000L)
Include neccessory accessories used on solar water heater such as silicion coil, tube support, bracket, assisstant tank, Heat pipe solar collector (Pipes 10-Pipes 36), Working station, Expansion Tank, Copper Connector, PE tube...Ect
We offer technology to install solar water heater for domestic and big solar project for school, hospital, hotel...We arrange engineer go aborad to install solar water heater until be finished well
Second we offer Ultrasonic Cutting Machine, Webbing Cutting Machine...For FIBC bag
We manufacture these machine and install them test them by ourself, we have already exported them to Vietnam, maylasia, Singapore, Indonesia, India...Neighbouring countries
We also can go aboard offer technology to install these machine until be finished well
