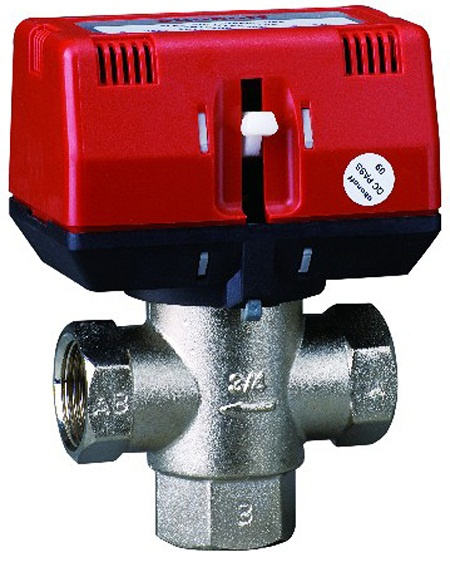

CE Approval Three Way Control Thermostatic Brass Valve (CKF3320T-05)
1. Product Summary:
CKF7000 series of motorized valves are used to control the on/off of the water system in HVAC system, consisting of actuator and valve body. Actuator will drive the stem, moving valve disc up and down.
2. Technical Parameter:
— Controlling character: 3-line, springy recover
— Driver Voltage: AC230V+/-10%, 50/60Hz (we can Special made 24V if you need)
— Power Consume: 4VA(only when the valve door is open)
— Motor Variety: Synchronous motor
— Running Hour: Power on 18 sec. Power off-15sec.
— KV: ≤ 0.06%Kvs
— Accepted pressure for valve body: 1600Kpa
— Connected way: Tube screw thread G (Can not be connected with wimble screw thread)
— Medium of application: Cold and frozen water, hot water and low-pressure vapor.
— Temperature of Medium: 2-75º C
— Temperature of Circumstance: -5oC~50oC
— Length of Down-lead: 100cm
— Closed Pressure differential: 2-way 0.3Mpa; 3-way 0.15Mpa
— 2 years warranty for CE Approval Three Way Control Thermostatic Brass Valve (CKF3320T-05)
Model | Spec | Dimension |
Kv(m³/h) | Shut down the difference(kpa) |
| DN(mm) | Internal thread(G) | L | H | H1 |
Two-way | CKF7315T-16C | 15 | 1/2" | 80 | 93 |
| 2.8 |
≤150 |
| CKF7320T-16C | 20 | 3/4" | 80 | 93 |
| 3.2 |
| CKF7325T-16C | 25 | 1" | 85 | 100 |
| 3.8 |
Three-way | CKF3320T-16C | 20 | 3/4" | 80 | 93 | 40 | 3.2 |
≤300 |
| CKF3325T-16C | 25 | 1"(external thread) | 90 | 132.5 | 42.5 | 3.8 |
