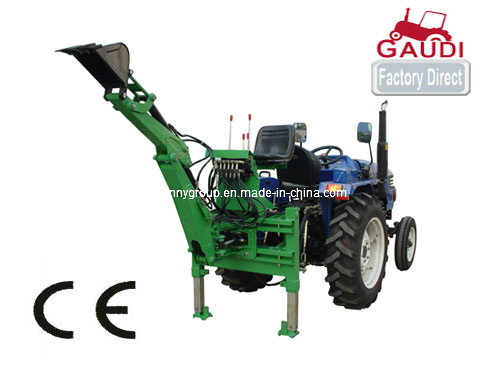

Hydraulic backhoe with movable frame and mechanical lock, independent hydraulic outrigger feet with safety valve, main joints equipped with pins and bushings made of tempered cemented steel, and mounting kit for farm tractor.
1. BH5 without hydraulic system
2. BH5R with independent hydraulic( PTO pump, gearbox & oil tank )
3. With standard 200mm bucket.
4. Optional 250mm, 300mm, 400mm buckets.
|
Model |
BH5 |
BH5R |
|
3-Point Linkage: |
Cat. 1 & 2 |
Cat.1&2 |
|
(A) Working Length: |
2900mm |
2900mm |
|
(B) Digging Depth: |
1950mm |
1950mm |
|
(C) Extend Height: |
3170mm |
3170mm |
|
Unload Height: |
2000mm |
2000mm |
|
Leg Spread: |
1700mm |
1700mm |
|
Swing Angle (boom): |
180 degrees |
180 degrees |
|
Work Pressure (bar): |
16mpa |
16mpa |
|
Max. Pump Capacity: |
NO |
14L(L/min@540rpm) |
|
Tank Capacity: |
NO |
12L |
|
Sliding Width: |
840mm |
840mm |
|
Weight with Bucket: |
550kg |
580kg |
Yancheng Foreign Trade Corp. Ltd. is a professional manufacturer of agricultural and industrial machines. We are one of the key enterprises specializing in exporting Chinese machines of SGM (Sunny Group Machine), a famous machinery manufacturing group in China.
Our product range covers a variety of industries such as tractors, front end loaders, hydraulic backhoes, ploughs, rotary cultivators, seed drills, excavators, single shafts or hydraulic dump trailers, PTO shaft driving water pumps or generators, chippers, ditching machines, mowers, snow blowers, mini dozers, mini and big hydraulic excavators, forklift trucks, skid steer loaders, wheeled loaders and backhoe loaders. Under control of ISO9001: 2000, many models of our products carry CE, UL, OECD, EPA, CARB and EEC and comply with the RoHS standards
Moreover, we are an ISO9001 certified company. The principle of our company is to provide high quality products with competitive prices, fast delivery, flexible terms and prompt responses.
